Capture Indicates the total of data captured in MBs.
Throughput Indicates three different data throughput metrics as described below:
Errors Indicates error count information as described below:
Error Ratio Indicates error ratio information as described below:
To reset throughput and error indications:
1. Select Reset Throughputs to reset cumulative throughput calculations to zero.
Or
Select Reset Errors to reset cumulative error calculations to zero.
The selected indication is reset to zero.

19.4 Options

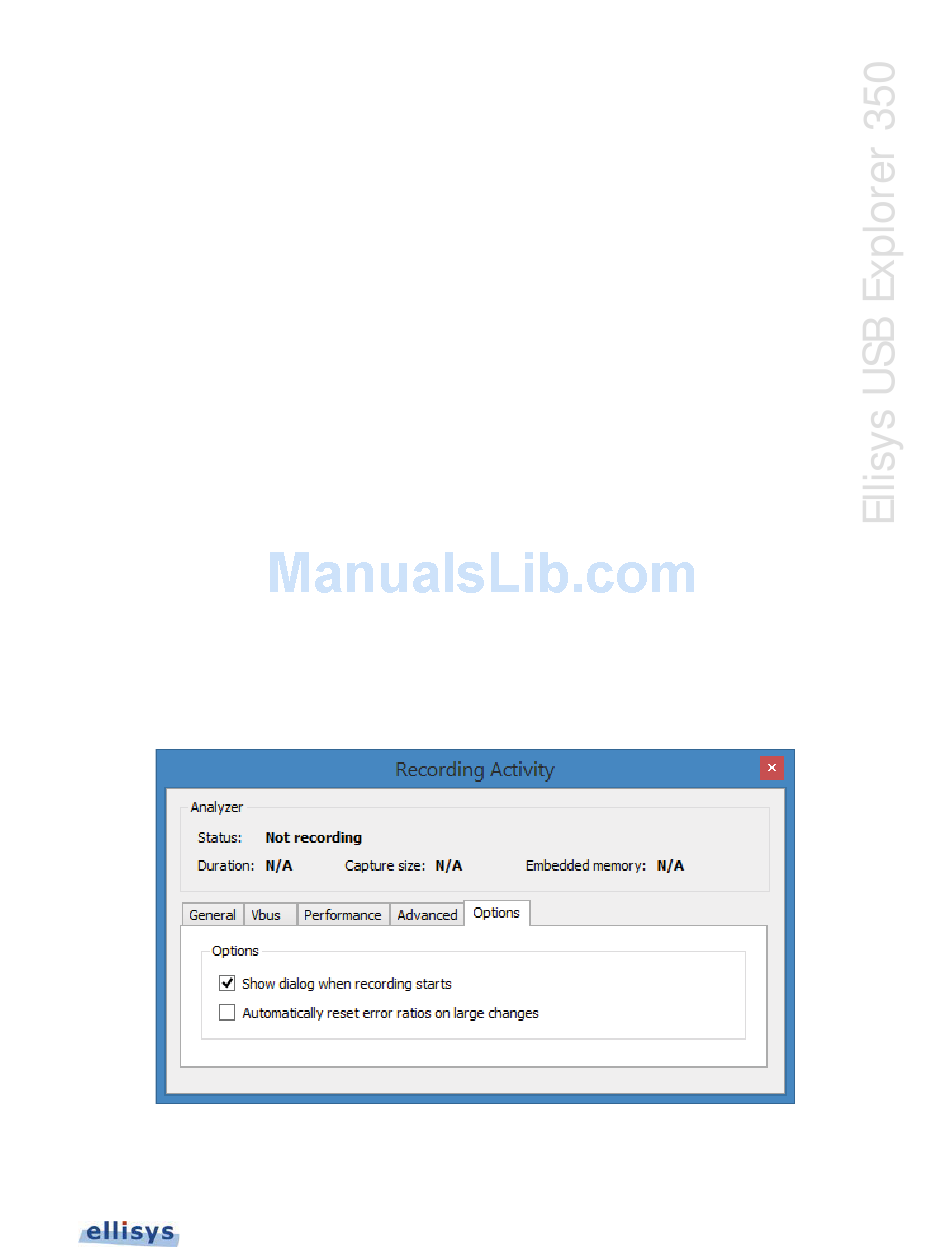

Recording Activity - Options
The
Options available in the Options
Last indicates last-calculated throughput and packet rate.
Min indicates the low-water throughput and packet rate.
Max indicates the high-water throughput and packet rate.
Phy indicates a count of 10b and disparity errors.
Link indicates a count of link-layer errors.
Phy indicates the ratio of all characters captured to characters identified by the Analyzer
as having 10b coding or disparity errors.
Link indicates the ratio of link items captured with errors to the total count of link items.
Errors can be CRC errors or symbols error inside the link item. A link item can be a
training ordered set, a link command, a header packet or a data payload packet.
tab provides display and error tracking options. Options available are shown below:
tab are described below:
