4.

Analyzer User Interface Reference

The user interface of the USB Explorer 350 Analyzer application provides various windows, panes, menus, toolbars,
and other visual elements. All panes are dockable, can be hidden or resized, and most are inter-linked to provide
synchronization with other panes.
Menu Bar
Overview
Instant Timing
Pane

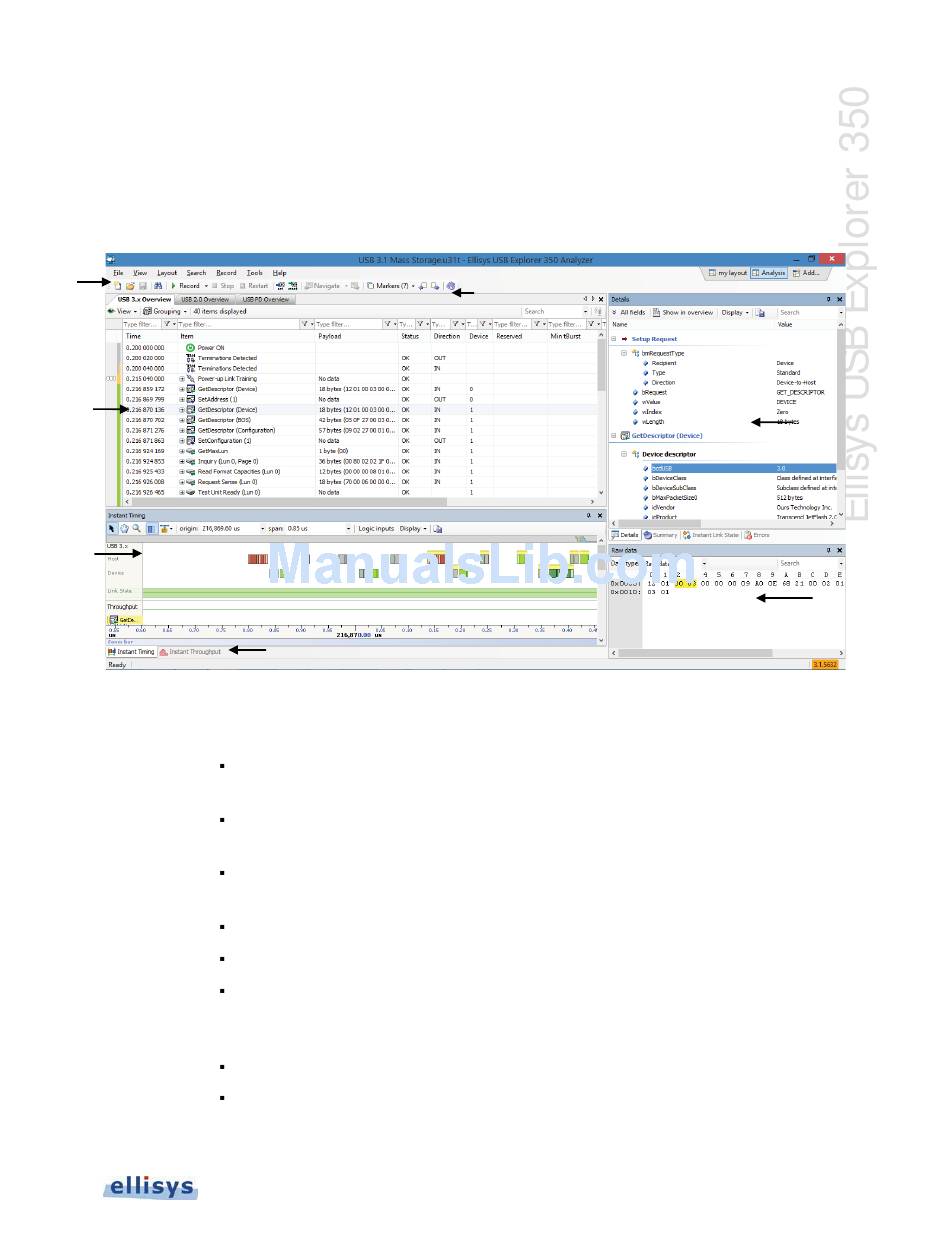

The Analyzer application displays several windows and panes in the default layout. Each pane displays specific
information or allows the user to interact with the software for a given task:
Instant Throughput Pane
U U SB 3.x Overview – Displays a chronological record of bus traffic and events for USB 3.1
Gen1 and Gen 2 traffic.
USB 2.0 Overview – Displays a chronological record of bus traffic and events for USB 2.0
traffic.
USB P D Overview
– Displays a chronological record of bus traffic and events for USB Power
Delivery traffic.
Details P ane
– Displays a breakdown of the event selected in the active
R aw Data P ane
– Displays the raw data of the event selected in the active
I nstant Tim ing P ane – Displays a graphical representation of bus events, including
characters, ordered sets, packets, link states, logic signals captured, Voltage/Power/Current
measurements, throughput, and timing measurements.
Sum m ary P ane – Displays a statistical summary bus traffic captured.
I nstant Link State P ane
– Displays and tracks USB 3.x LTSSM states.
Toolbar
Analyzer User Interface Reference
Details Pane
(other panes
docked)
Raw Data Pane
Overview
.
Overview
.
| 25 of 157
