2. Select or deselect the desired filter as needed.
USB 3.1 Overview
The updates with the selected setting.

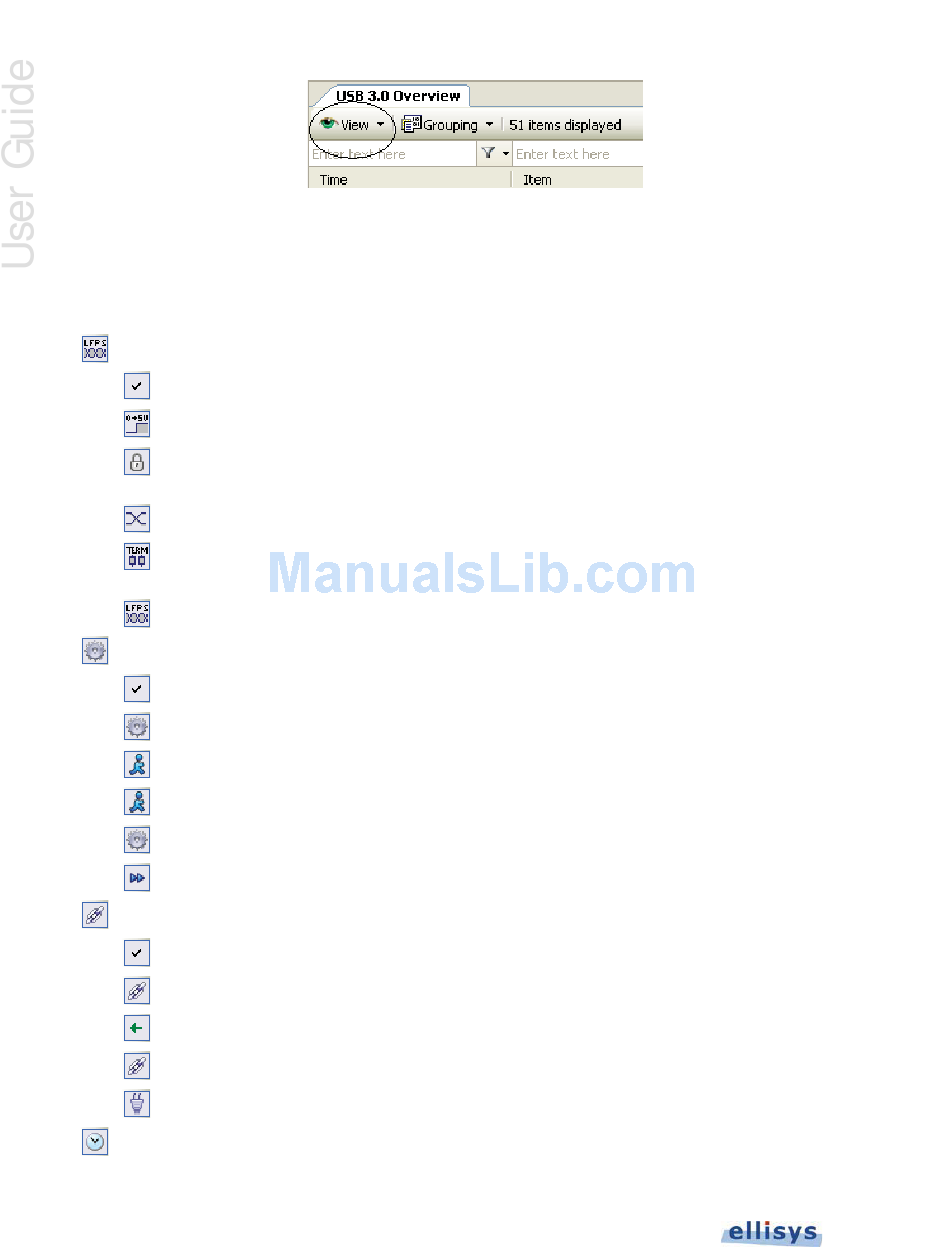

The table below describes the categorized filters:
Bus States
Show Bus States
Show Power Changes
Show Receiver Lock Changes
Show Lane Polarity Changes
Show Rx Termination Changes
Show LFPS
Ordered Sets
Show Ordered Sets
Show Training Sequence Equalization
Show Training Sequence 1 (TS1)
Show Training Sequence 2 (TS2)
Show BERT Ordered Sets
Show Skip Ordered Sets
Show Link Commands
Show Link Commands
Show Link Pollings
Show Link Handshakes
Show Link Credits
Show Link Power Management
Show Isochronous Timestamps
100 of 157 | Analyzer Overview Windows
Shows/hides all bus states.
Shows/hides all bus power changes (Power ON/OFF).
Shows/hides changes in the Analyzer's receiver lock
statuses.
Shows/hides changes in lane polarity.
Shows/hides changes in the Analyzer's detection of
receiver terminations on the attached devices.
Shows/hides LFPS events.
Shows/hides all ordered sets.
Shows/hides TSEQ ordered sets.
Shows/hides TS1 ordered sets.
Shows/hides TS2 ordered sets.
Shows/hides BERT ordered sets.
Shows/hides SKP ordered sets.
Shows/hides all link commands.
Shows/hides link pollings (LDN/LUP).
Shows/hides link handshakes.
Shows/hides link credits.
Shows/hides link power management link commands.
Shows/hides isochronous timestamp transactions.
