Examiner User Interface; Figure 28 Examiner User Interface (Tests Tab Shown) - Ellisys USB Explorer 350 User Manual

6.

Examiner User Interface

The Examiner application's user interface is comprised of a set of tabs that provide for user input, as well as real-time
indications of test activity and results. Test selection is available on the Tests tab.
Test setup is done in the same manner the user would set up as the Exerciser mode, either direct from the Examiner
unit to the UUT, or with the analyzer in between the Examiner unit and the UUT. See Section 20 Exerciser or
Examiner – Setting Up.

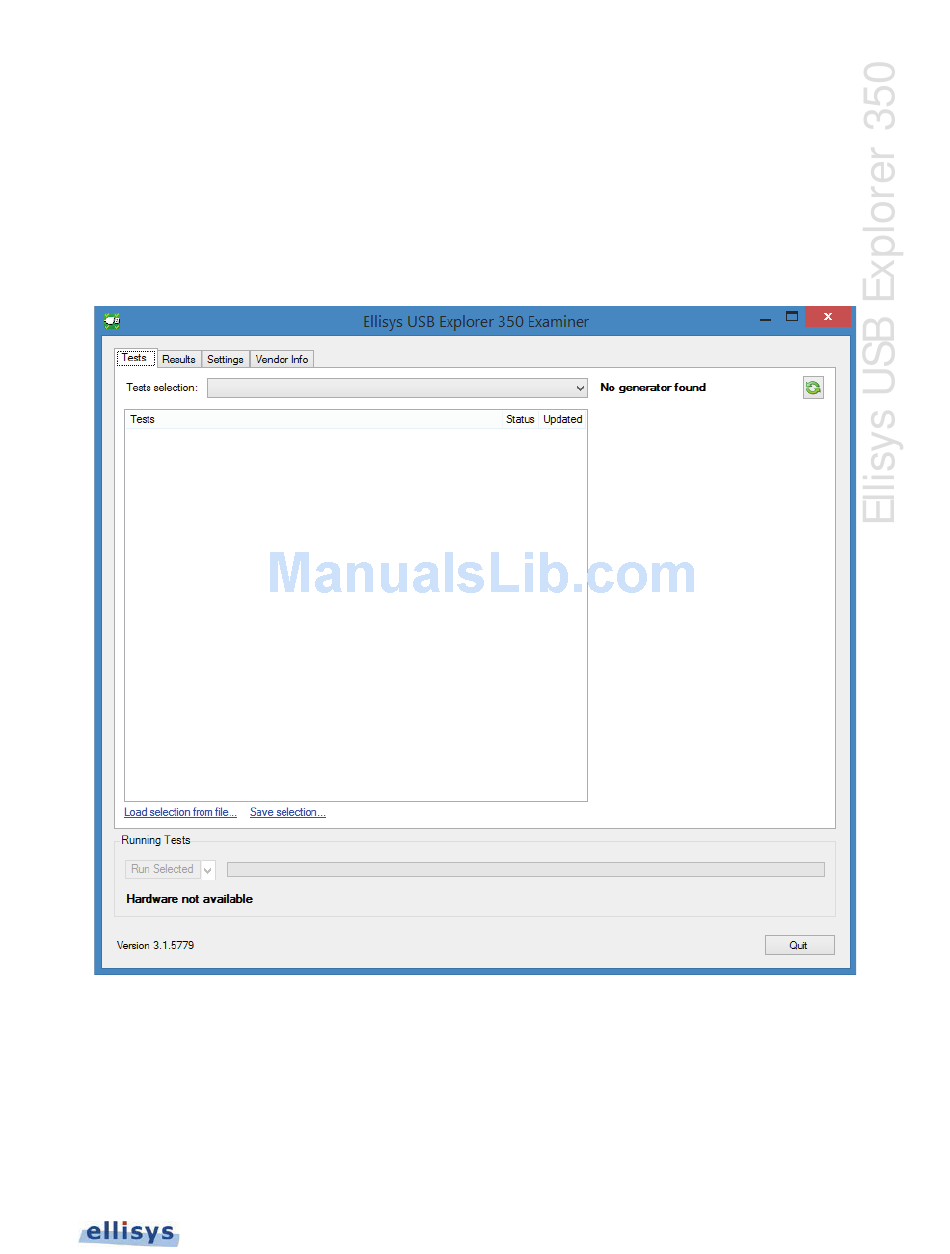

Figure 28 Examiner User Interface (Tests Tab Shown)

Tests Tab
Tests
The tab allows the user to select one or more tests from several test categories. Test categories are shown in
Tests
the main window and selected individually using the associated check boxes there, or in groups, using the
Tests Selection drop-down selection.
