12.5 Exporting Images

Instant Timing
The display can be exported into various graphics formats.
I I nstant Tim ing
To export the
1. Click on the Export Image icon located in the
Images to be exported are automatically assigned a file name that includes the origin and span
values.
2. Accept the default file name or assign a new file name in the
3. Select a directory location.
4. Select the file type in Save as type drop-down (e.g., *.gif, *.png, *.jpg, *.bmp).
5. Click on Save.
The file is exported in the desired format to the selected directory.

12.6 Link State Indications

Link states are tracked in the
labels.
Link states are color-coded as shown below:
ORANGE LFPS and link training sequences
GREEN U0
Low power states
BLUE
To determine a link state:

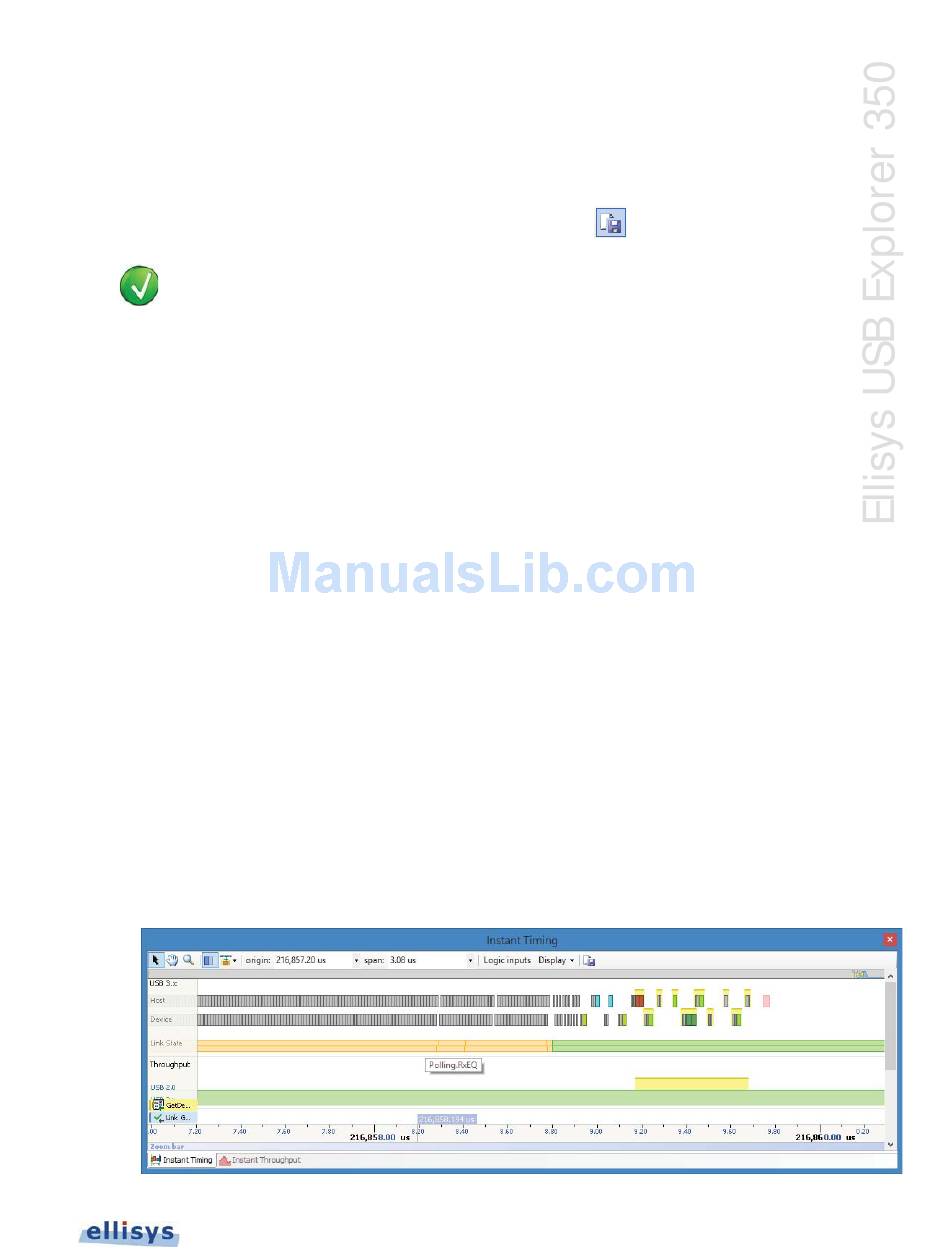

1. Place the mouse pointer over the horizontal Link State bars at the desired location.
The link state appears in the fly-over indication:
display to a graphics format:
Instant Timing
Instant Timing
pane. These states are color-coded, demarcated, and include fly-over
toolbar.
Save As
menu.
Analyzer Instant Timing Pane | 119 of 157
