The table below explains the settings available under the Trigger tab:
Trigger Tab
Conditions
Link
Device
Endpoint
Action

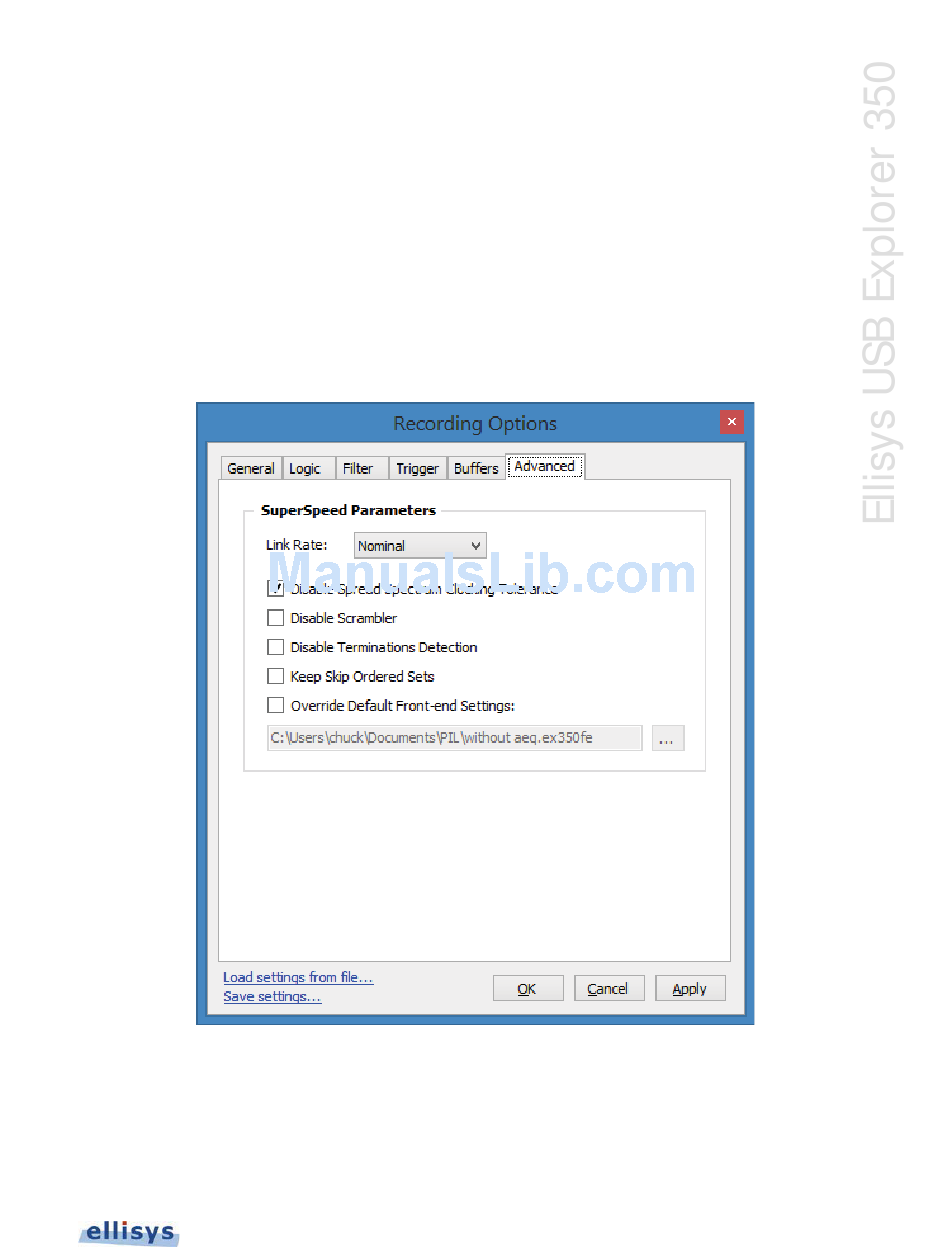

To set advanced options, select the Advanced tab:
Enables selection of various conditions that can be used to trigger the
Analyzer recording.
Applies the selected trigger condition(s) to the upstream or downstream link.
Applies the selected trigger condition(s) to selected device address.
Applies the selected trigger conditions(s) to the selected endpoint.
Defines an action on the logic connector (pulse, toggle, or state change).
