The vertical lines associated with the
and straight when attached. To adjust cursor position, place the mouse pointer over either cursor and
left-click and drag to adjust position horizontally.
3. Drag the mouse to the desired location or desired event.

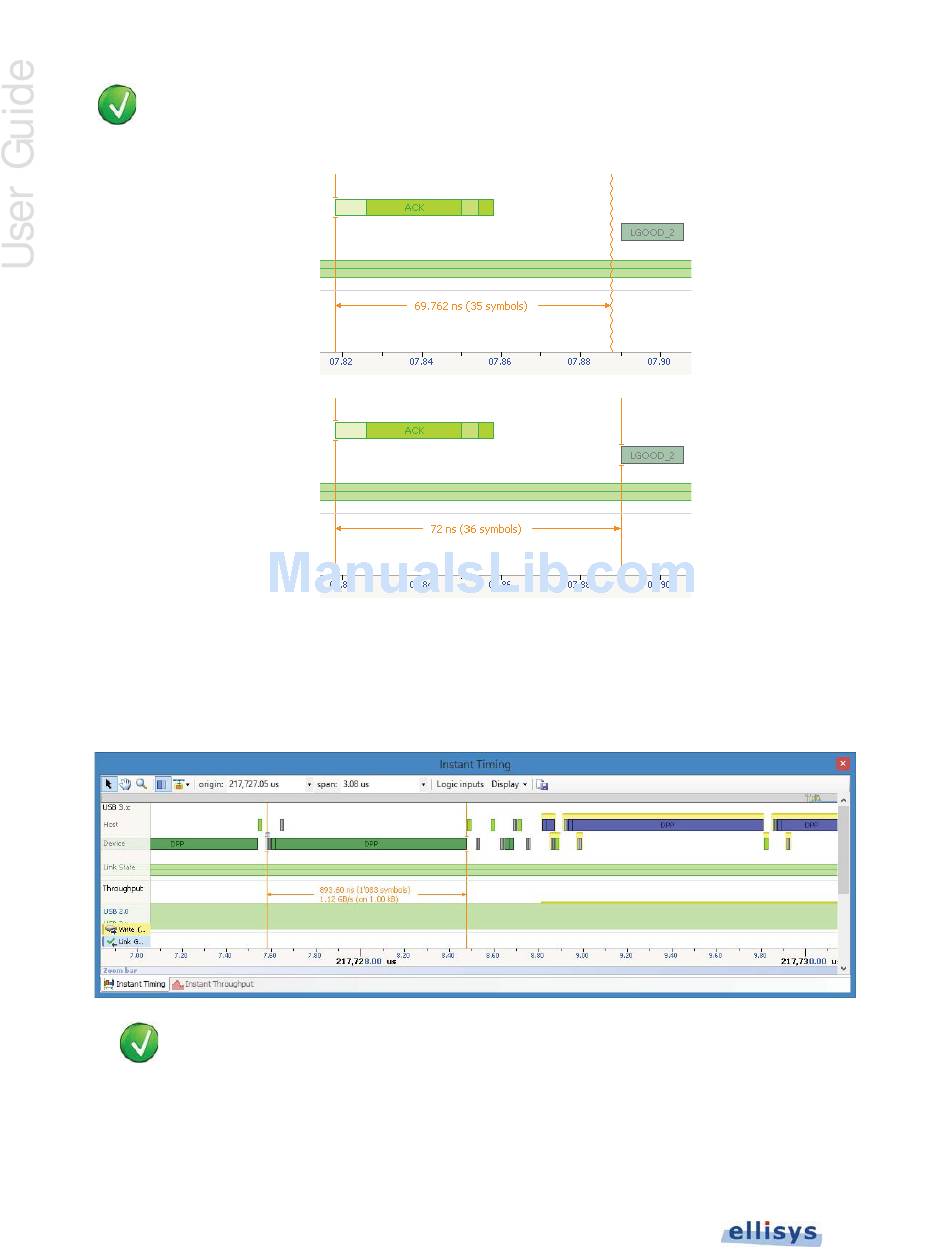

The time between the cursors is displayed along with an equivalent symbol time count. If the measurement includes
payload, an instantaneous bandwidth is also displayed:
The vertical position of the displayed timing information, including the horizontal arrows, can be
changed by selecting the information with the pointer, then dragging to the desired position.
