Ellisys USB Explorer 350 User Manual page 105

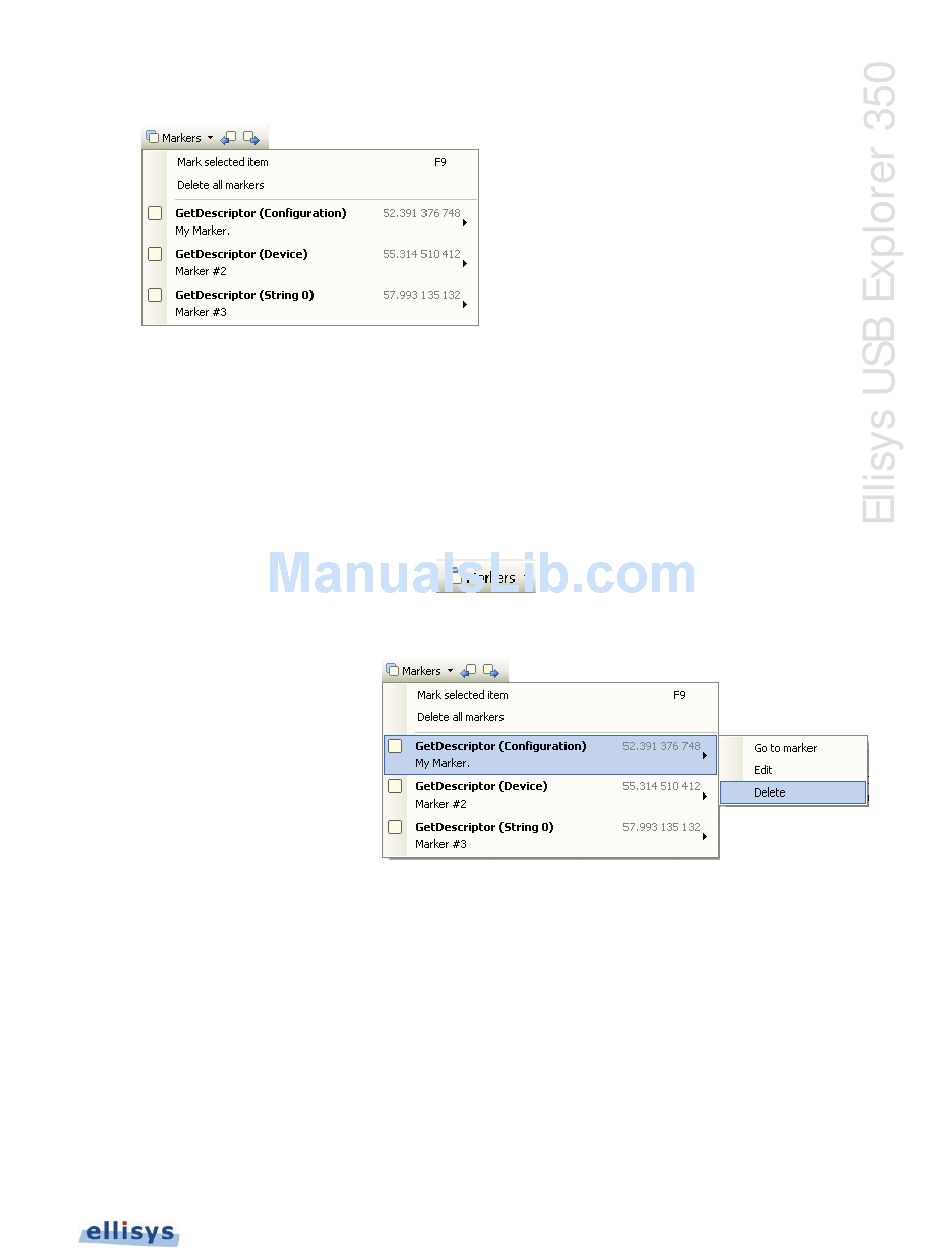

A list of all markers installed appears:
2. Select the desired marker from the list.
Overview
The active jumps to the selected marker.
To delete a marker:
1. Position the mouse pointer over the marker to be removed.
2. Right-click and select Remove marker.
Or
Click on the Markers button (F9) on the toolbar
3. Position the mouse pointer over the desired marker:
4. Select Delete.
The marker is removed.
To edit a marker:
1. Position the mouse pointer over the marker to be edited.
2. Left-click the marker.
Or
Right-click and select Edit Marker.
Or
Select the Marker button on the toolbar.
.
Analyzer Overview Windows | 105 of 157
