Figure 3 Simplified Exerciser Or Examiner Setup (Host Emulation Example); Figure 4 Simplified Exerciser Or Examiner Setup (Device Emulation Example) - Ellisys USB Explorer 350 User Manual

In the two-unit setup, the Analyzer may be operated automatically under the control of the Examiner application to
capture traces for each test, or it may be operated by the user manually, under the control of the Analyzer
application directly (when the Analyzer checkbox in Examiner's Settings tab is unchecked).

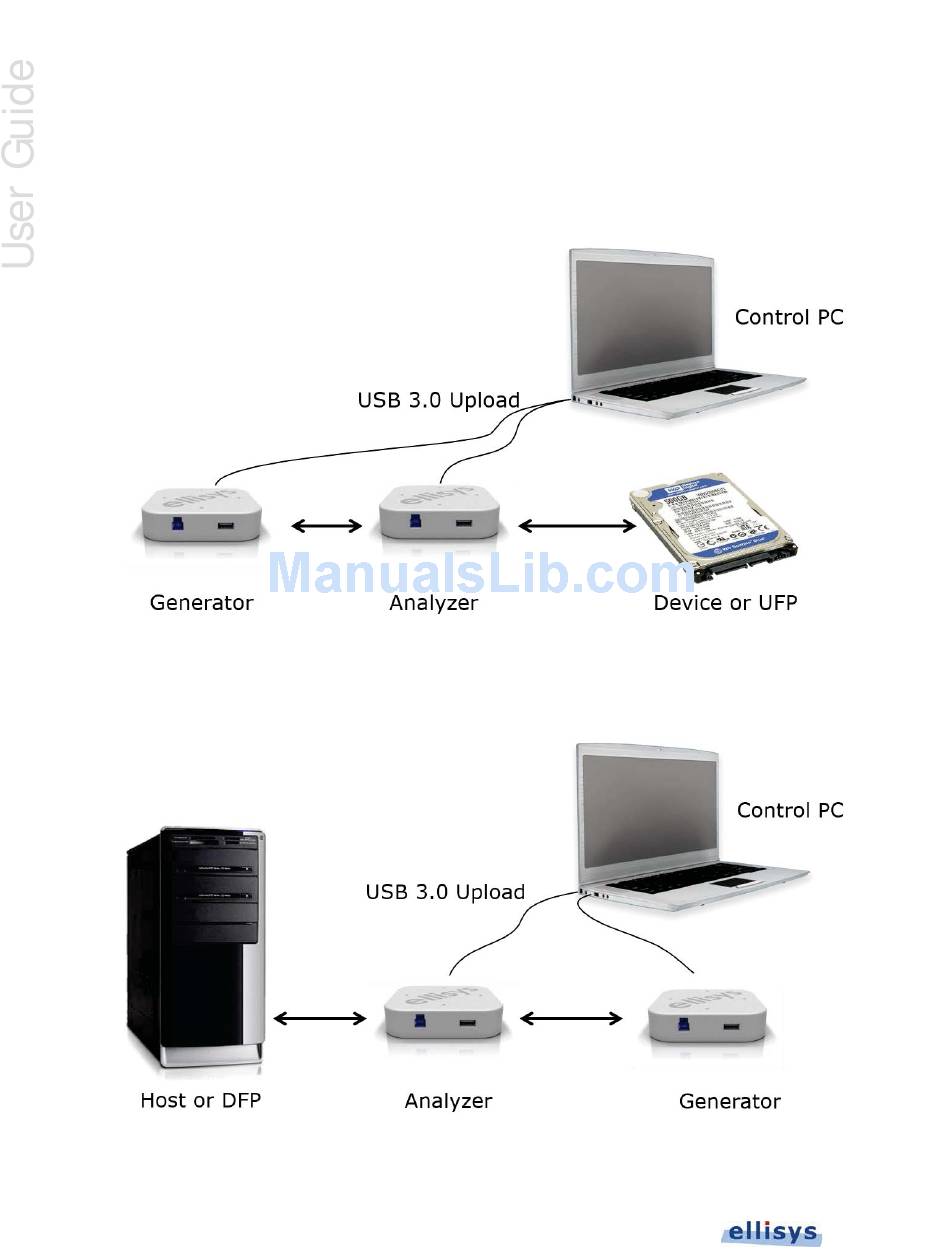

Figure 3 and Figure 4 below depict a simplified setup for Exerciser mode or Examiner. Note that the 24VDC power
input for the USB Explorer 350 units are required, but not shown.

Figure 3 Simplified Exerciser or Examiner Setup (Host Emulation Example)

Figure 4 Simplified Exerciser or Examiner Setup (Device Emulation Example)

14 of 157 | Analyzer / Exerciser Overview
