Step 5:
Assembly of the handles
(1) Remove the six pre-mounted screws (J10 and J11) from the left handle (E1).
(2) See view F: Mount left handle (E1) on main frame (A) and tighten all screws (J10
and J11) with two 6mm Allen wrenches.
(3) Repeat the assembly (E2) on the right side (E2).

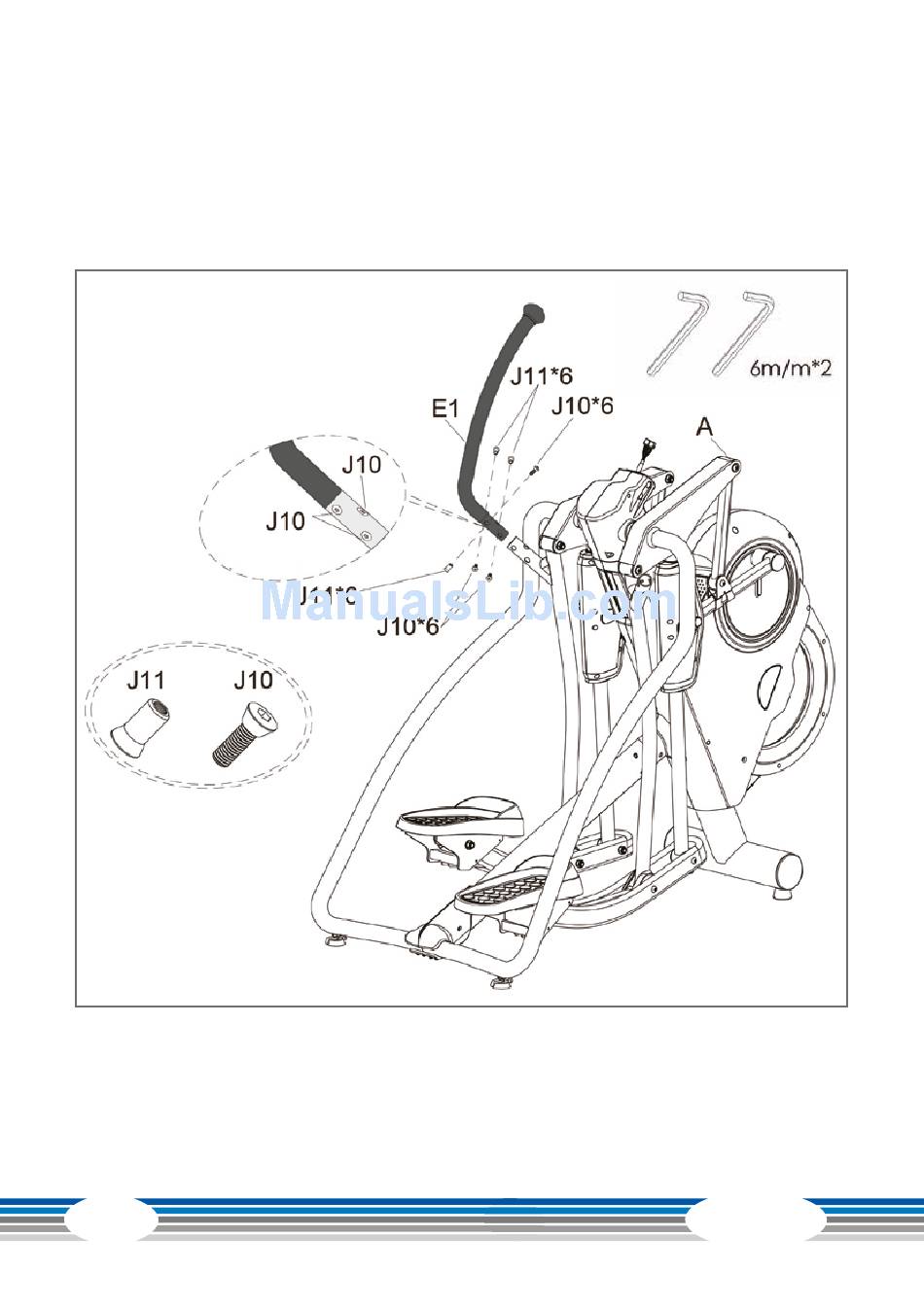

View F
EX80
18
