Step 2: Assembly of the right connecting tube

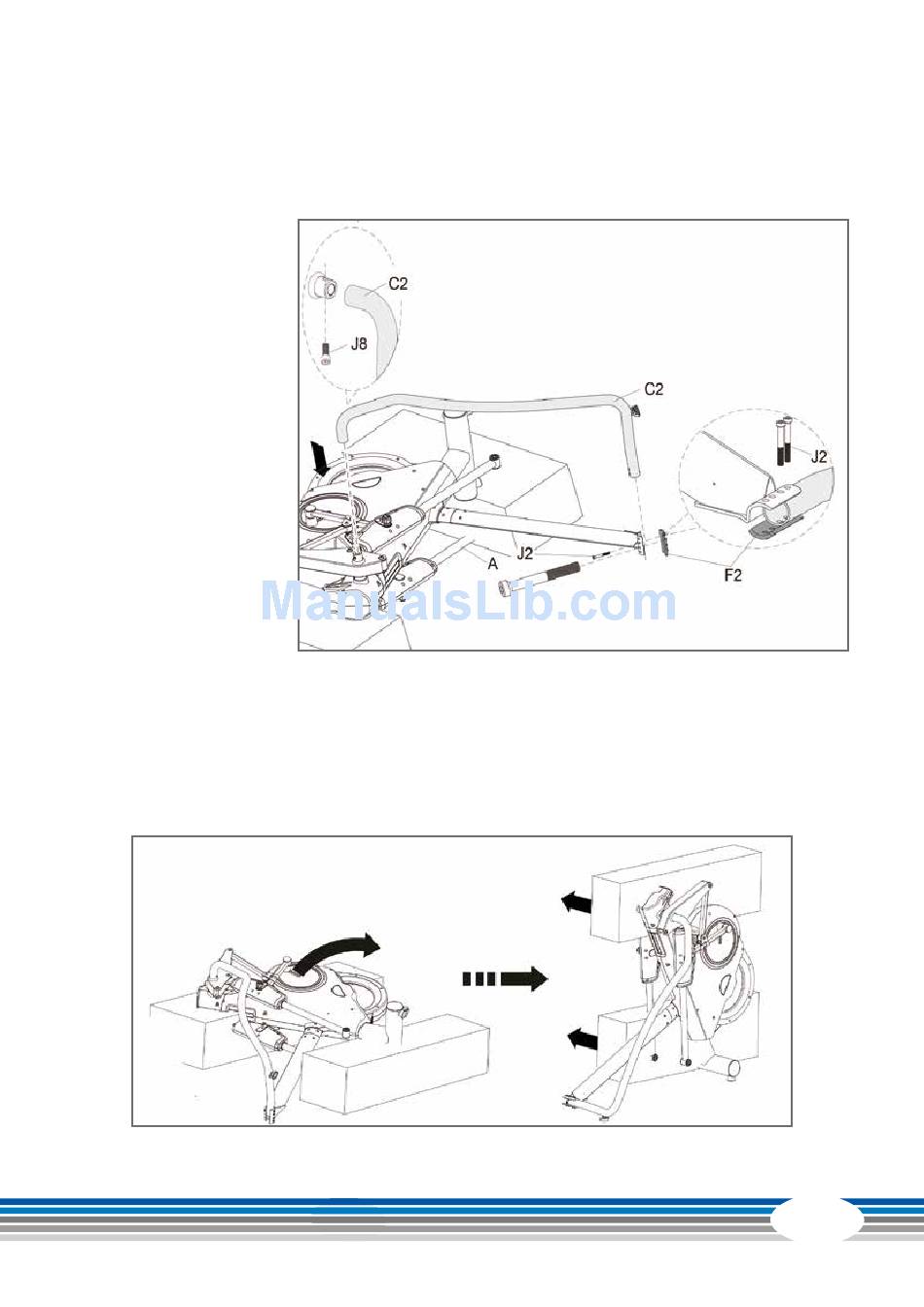

(1) See view A: Mount right connecting tube (C2) on the main frame (A).
(2) Tighten the tube with screws (J8) M8 x 20 on the frame.
(3) See view B: Tighten tube with two screws (J2) M8x60 and clamp (F2) on the bottom
of the frame.
View A
Note: First completely
tighten screws (J8 and
J2) as soon as step 3
was finished.
View B
(4) Two people lift the main frame (A) and remove the Styrofoam, see image below.
Note: Due to safety reasons, the main frame should be lifted by at least two people
and brought into a vertical position.
