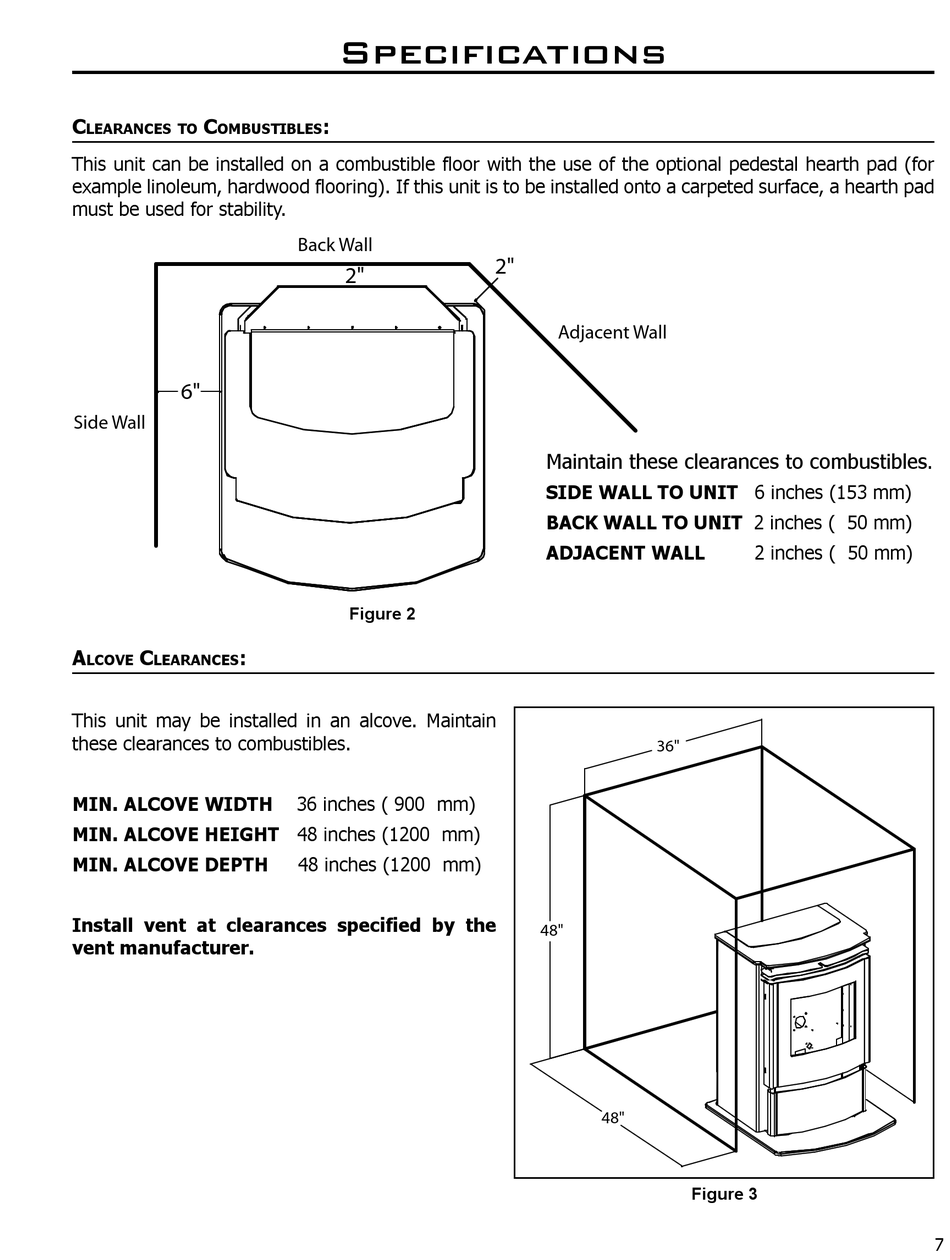

LEARANCES TO OMBUSTIBLES
This unit can be installed on a combustible floor with the use of the optional pedestal hearth pad (for
example linoleum, hardwood flooring). If this unit is to be installed onto a carpeted surface, a hearth pad
must be used for stability.
��
���� ����
A C :
LCOVE LEARANCES
This unit may be installed in an alcove. Maintain
these clearances to combustibles.
MIN. ALCOVE WIDTH
MIN. ALCOVE HEIGHT 48 inches (1200 mm)
MIN. ALCOVE DEPTH
Install vent at clearances specified by the
vent manufacturer.
Specifications
:
���� ����
��
Figure 2
36 inches ( 900 mm)
48 inches (1200 mm)
��
�������� ����
Maintain these clearances to combustibles.
SIDE WALL TO UNIT 6 inches (153 mm)
BACK WALL TO UNIT 2 inches ( 50 mm)
ADJACENT WALL
���
���
���
2 inches ( 50 mm)
Figure 3
