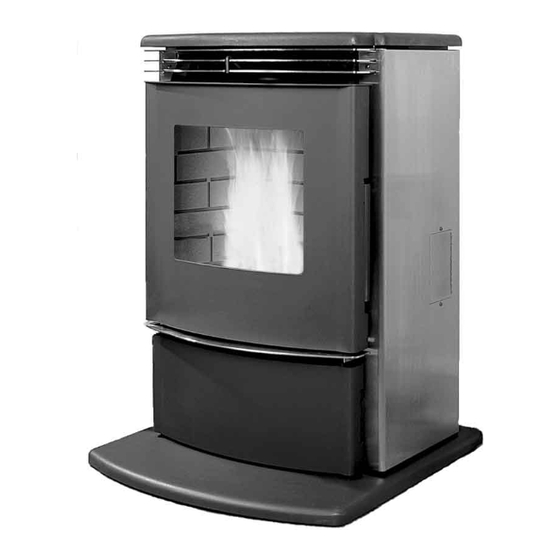

Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE Evolution OWNER’S MANUAL Contact your building or fire officials about restrictions and installation inspection requirements in your area.
Page 2: Table Of Contents
Table of Contents Table of Contents......................2 Introduction......................3 Important Safety Data..................3 Safety Warnings And Recommendations............3 Important Safety Data..................5 Warnings and Recommendations..............5 Specifications......................6 Rating Label Location..................6 Appliance Dimensions..................6 Clearances to Combustibles................7 Alcove Clearances...................7 Exhaust and Fresh Air Intake Dimensions............8 Operating Instructions....................9 Control Board Functions..................9 Automatic Safety Features of Your Pellet Stove..........9 Thermostat Modes..................10 Turning Stove On Without Thermostat............10...
Page 3: Introduction
OR EVEN DEATH. CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS TO OBTAIN A PERMIT AND ANY INFORMATION ON ANY INSTALLATION RESTRICTIONS AND INSPECTION REQUIREMENTS FOR YOUR AREA. An ENVIRO dealer will be happy to assist you. The stove’s exhaust system works with negative combustion chamber pressure and a slightly positive chimney pressure.
Page 4 Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.
Page 5: Important Safety Data
Introduction MPORTANT AFETY This unit is designed to burn pelletized wood fuel only. Do not use any other type of fuel, this will void any warranties stated in this manual. The ash pan must be locked securely for proper and safe operation of the pellet stove. Since Sherwood Industries Ltd.
Page 6: Specifications
Specifications ATING ABEL OCATION The rating label is located on the inside of the ash pan cover. PPLIANCE IMENSIONS UNIT DIMENSIONS HEIGHT: 33 ” (840 mm) WIDTH: 22 1⁄4” (565 mm) � �� DEPTH: 21 1⁄4” (539 mm) ��...
Page 7: Clearances To Combustibles
Specifications LEARANCES TO OMBUSTIBLES This unit can be installed on a combustible floor with the use of the optional pedestal hearth pad (for example linoleum, hardwood flooring). If this unit is to be installed onto a carpeted surface, a hearth pad must be used for stability.
Page 8: Exhaust And Fresh Air Intake Dimensions
Specifications XHAUST AND RESH NTAKE IMENSIONS (A) EXHAUST. Base to center of flue 10.71 inches (27.2 cm) Side to center of flue 10.62 inches (2.07 cm) (B) FRESH AIR INTAKE. Base to center of intake 8.47 inches (21.5 cm) Side to center of intake 7.97 inches (20.5 cm) �...
Page 9: Operating Instructions
Operating Instructions ONTROL OARD UNCTIONS 1. HEAT LEVEL INDICATOR: Shows the present heat level output setting. 2. HEAT LEVEL ADJUSTMENT: This button will change the Heat Level   output setting of the stove from low to high � 3. ON/OFF BUTTON: Is used to turn the unit ON and OFF 4.
Page 10: Thermostat Modes
Operating Instructions HERMOSTAT ODES This stove can be placed into two different thermostat modes: HI / LOW OPERATION: If the unit has been placed in the HI / LOW mode. The unit will operate on the low setting when the thermostat is not calling for heat. When the thermostat calls for heat, the unit will go to your selected setting which is displayed on the control board Heat Output Indicator.
Page 11: Slider/Damper Set-Up
Operating Instructions LIDER AMPER This is used to regulate the airflow through the pellet stove. The slider damper is located behind the left side panel. To open the left side panel, undo the one screw located in the upper front corner of the cabinet side between the louvers and one screw behind the ash door.
Page 12: Routine Cleaning And Maintenance
Routine Cleaning and Maintenance The following list of components should be inspected and maintained routinely to ensure that the appliance is operating at its’ optimum and giving you excellent heat value: 2-3 DAYS/WEEKLY SEASON or 2 TONS OF FUEL Burn Pot Burn Pot and Liner Exhaust Vent Liner...
Page 13 Routine Cleaning and Maintenance DOOR GLASS (It is recommended that your dealer replace the glass if broken.) The door glass is made of high temperature PYRO CERAMIC. The center panel is 14” x 14” inches (35.5 cm x 35.5 cm). To replace the glass, unscrew and remove the four glass retainers. Remove the glass and any broken pieces.
Page 14: Installation
Installation ECIDING HERE OCATE ELLET TOVE 1. Check clearances to combustibles. 2. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be obtained from a ventilated crawlspace. 3. Do not install the stove in a bedroom. 4.
Page 15: Optional Hearth Pad Pedestal Installation
Installation 1. To install the OPTIONAL slider damper rod, remove the left cabinet side and locate the slider damper plate. Install the “ nut unto the slider damper rod, thread all the way to the end of the threads on rod. 2.
Page 16: Vent Termination Requirements
Installation ERMINATION EQUIREMENTS 1. Do not terminate the vent in any enclosed or semi-enclosed areas such as a carport, garage, attic, crawlspace, narrow walkway, closely fenced area, under a sun deck or porch, or any location that can build up a concentration of fumes such as stairwells, covered breezeway, etc.
Page 17: Horizontal Trough Wall Installation
ORIZONTAL ROUGH NSTALLATION The ENVIRO Evolution (EF5) can be vented through the wall using two different methods. It is recommended that the installation has some vertical rise in the system. STRAIGHT THROUGH THE WALL 1. Choose a location for your stove that meets the requirements stated in this manual and allows installation with the least amount of interference to house framing, plumbing, wiring, etc.
Page 18: Straight Through Wall Installation
Installation TRAIGHT HROUGH NSTALLATION �� Figure 16 HROUGH ERTICAL ECOMMENDED �� Figure 17...
Page 19: Vertical Installation
Installation ERTICAL NSTALLATION 1. Choose a stove location that is ideal. See the section “Deciding Where to Locate Your Pellet Stove”. 2. Place the unit on the hearth pad (if installed on a carpeted surface) and space the unit in such a manner that when the pellet vent is installed vertically, it will be 3”...
Page 20: Hearth Mount Installation
Installation EARTH OUNT NSTALLATION 1. Lock fireplace damper in the open position. �� 2. Install positive flue connector at the fireplace dampers. �� 3. Connect a Tee or a 90° degree elbow to the exhaust pipe. �� 4.
Page 21: Optional Exterior Mounted Exhaust Blower
Installation PTIONAL XTERIOR OUNTED XHAUST LOWER The EF 5 can be equipped with an externally mounted exhaust blower. This optional kit includes all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements stated in your manual and allows installation with the least amount of interference with house framing, plumbing, wiring, etc.
Page 22: Typical Through Wall Termination Installation With Exhaust Blower
Installation YPICAL HROUGH ERMINATION NSTALLATION XHAUST LOWER �� Figure 24 NOTE: Ensure that all vent connections are installed by placing a small bead of high temperature silicone at each chimney connection.
Page 23: Through Wall Vertical Installation With Exhaust Blower
Installation HROUGH ERTICAL NSTALLATION XHAUST LOWER Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit. �� ...
Page 24: Troubleshooting
Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1.
Page 25 Troubleshooting üPoor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning or operational. üExhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. üCheck the fuses on the circuit board (see “Troubleshooting - Fuses”).
Page 26: Fuses
Troubleshooting 7. The convection blower will not function normally. üClean all grill openings at the back and below unit . üPress the fan button; does the fan come on? Press again to verify that the blower turns on; if, not contact your local dealer for service.
Page 27: Wiring Diagram
Wiring Diagram W H I T E A R M O R C A B L E S U P P L I E D B L A C K G R E Y V A C U U M S W I T C H G R E Y B L A C K...
Page 28: Parts Diagram - Components
Control Panel - 115V 50-330 Control Panel Decal - 115V 50-179 Auger Motor - 115V Circuit Board - 115V EF-001 50-178 Wiring Harness 50-332 Convection Blower Mount & Hardware 50-585 Convection Blower - 115V 50-512 EVOLUTION - Components April 2003...
Page 29: Parts Diagram - Steel
Parts Diagram - Steel...
Page 30: Warranty
Warranty Sherwood Industries Ltd. gives a five year limited warranty on all steel manufactured parts. A one-year warranty is provided on all electrical components. The above limited warranties are extended only to the original purchaser. There is no warranty on the following parts: ●...
Page 31: Installation Data Sheet
Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: NAME OF DEALER: _________________________________________ _________________________________________ ADDRESS: ADDRESS: _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ PHONE:___________________________________ MODEL:___________________________________ NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________...
