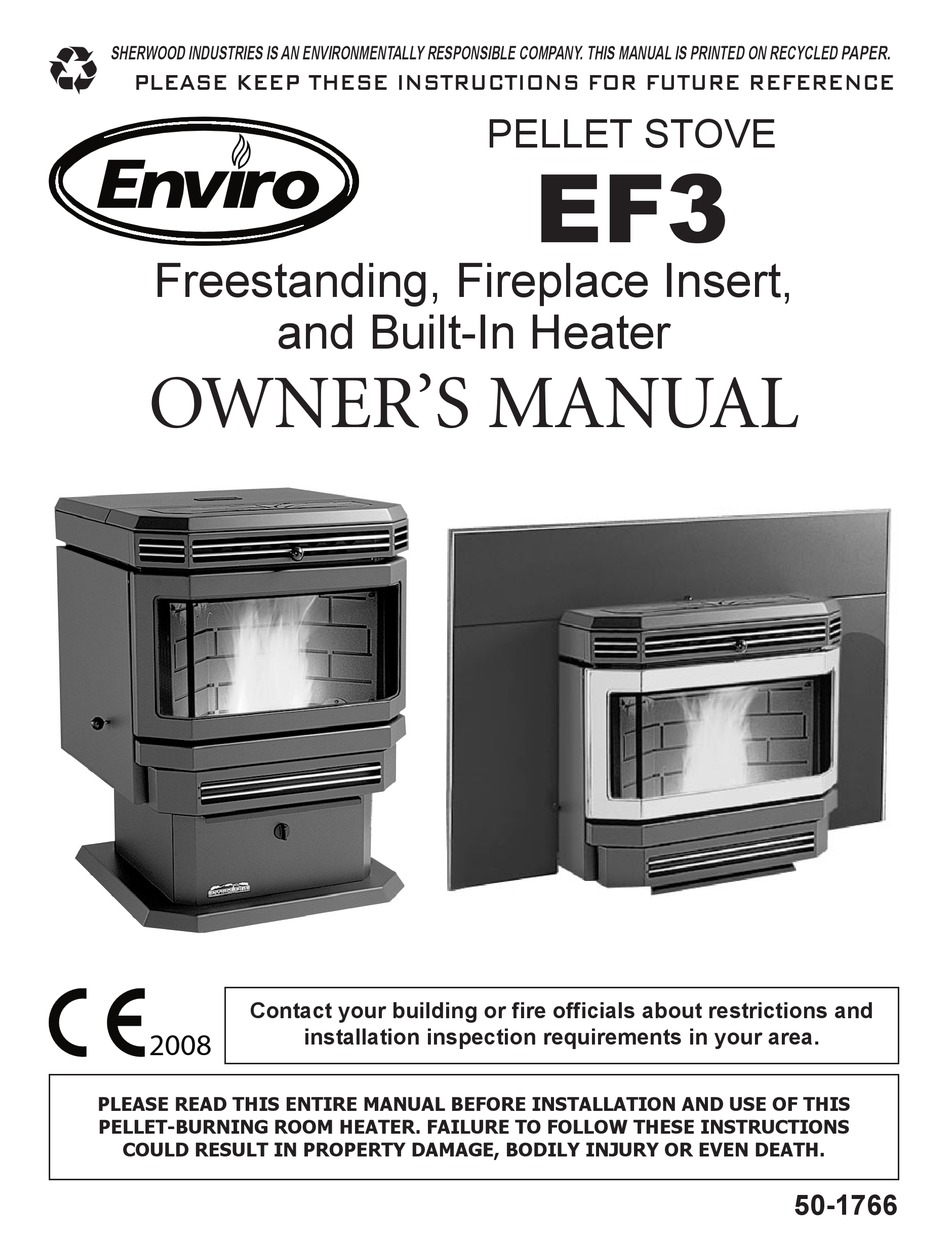

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

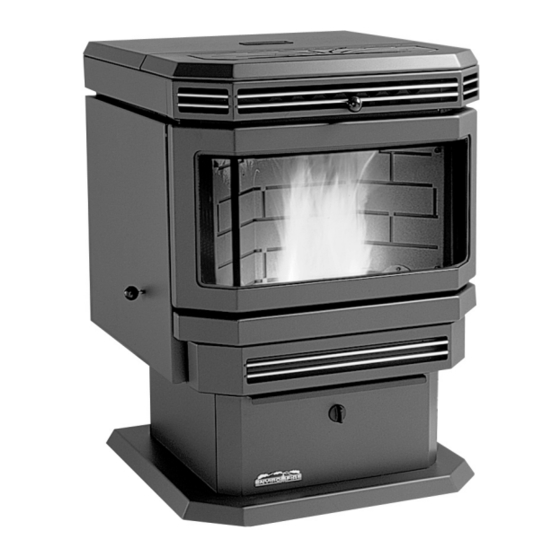

PELLET STOVE
EF3
Freestanding, Fireplace Insert,
and Built-In Heater
OWNER'S MANUAL
Contact your building or fire officials about restrictions and
installation inspection requirements in your area.
����
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS
PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
50-1766

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Enviro EF3

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE Freestanding, Fireplace Insert, and Built-In Heater OWNER’S MANUAL Contact your building or fire officials about restrictions and installation inspection requirements in your area.
  • Page 2: Table Of Contents

    Table of Contents Table of Contents.................2 Introduction..................3 Rating Label Location..............3 Pellet Quality................3 Safety Warnings & Recommendations...........4 Specifications..................6 Dimensions - Freestanding............6 Dimensions - Fireplace Insert and Built-In Heater......6 Specifications................7 Operating Instructions.................8 Control Board Functions............8 Automatic Safety Features of Your Pellet Stove......8 Operating Your Pellet Stove............9 Turning Your Pellet Stove Off............10 Slider/Damper Set-Up..............10...
  • Page 3: Introduction

    UALITY Pellet quality is important, please read the following: Your Enviro pellet stove has been designed to burn 6mm dia wood pellets only. DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in this manual.
  • Page 4: Safety Warnings & Recommendations

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
  • Page 5 Amps), 50 hertz electrical outlet and also must be accessible. If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges.
  • Page 6: Specifications

    � ���� ��� �� �� �� � � �� � � �� �� ���� ��� ���� ��� ������ �� �� � � �� ���� ��� �������� � �� � � � ���� ��� Figure 2: Dimensions of EF3 Fireplace Insert.
  • Page 7: Specifications

    Specifications PECIFICATIONS...
  • Page 8: Operating Instructions

    Operating Instructions ONTROL OARD UNCTIONS 1. AUGER TRIM: Used to change feed rates on LOW ONLY for poorer quality fuels. Push the Auger Trim button until the number 1 and 5 lights appear on the Heat Level Indicator. This will increase the feed rate to 4 seconds ON time Auger pulse.
  • Page 9: Operating Your Pellet Stove

    Operating Instructions PERATING ELLET TOVE DO NOT OPERATE THE UNIT WITH THE DOOR OR ASH PAN OPEN. Keep hopper lid closed except during re-fuelling. CAUTION: When operating during adverse weather, such as high winds or freezing rain, if the unit exhibits dramatic changes in combustion stop using the unit immediately.
  • Page 10: Turning Your Pellet Stove Off

    Operating Instructions OPERATION: When the thermostat contacts close, the unit will light automatically. Once up to temperature, the stove operates the same as in MANUAL. When the thermostat contacts open, the stove’s HEAT LEVEL and Fans will drop down to the LOW setting for 30 minutes. If the thermostat contacts close within the 30 minutes, the HEAT LEVEL will return to the previous MANUAL setting.
  • Page 11: Routine Cleaning And Maintenance

    ASH PAN AND DOOR GASKETS (weekly) After extended use the gasket may come loose. To repair or replace this, glue the gasket on, using high- temperature fiberglass gasket glue available from your local ENVIRO dealer. This is important to maintain an airtight assembly.
  • Page 12 FREESTANDING ASH PAN: The EF3 Bayview pellet stove freestanding’s ash pan is located under the burner, in the pedestal, and has a latching mechanism to secure it. To remove the ash pan, unlock the latch on the ash pan and then pull the pan out.
  • Page 13 Routine Cleaning and Maintenance • Re-install steel brick liner and screw in place. • Replace top baffle EXHAUST VENT (season) The products of combustion will contain small particles of flyash. The flyash will collect in the exhaust venting system and restrict the flow of the flue gases. Incomplete combustion, such as occurs during startup, shutdown, or incorrect operation of the room heater will lead to some soot formation which will collect in the exhaust venting system.
  • Page 14: Installation Data Sheet

    _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ WARRANTY: If you have any concerns with your unit please contact the dealer where you purchased the stove. MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com January 4, 2008 C-11515...
