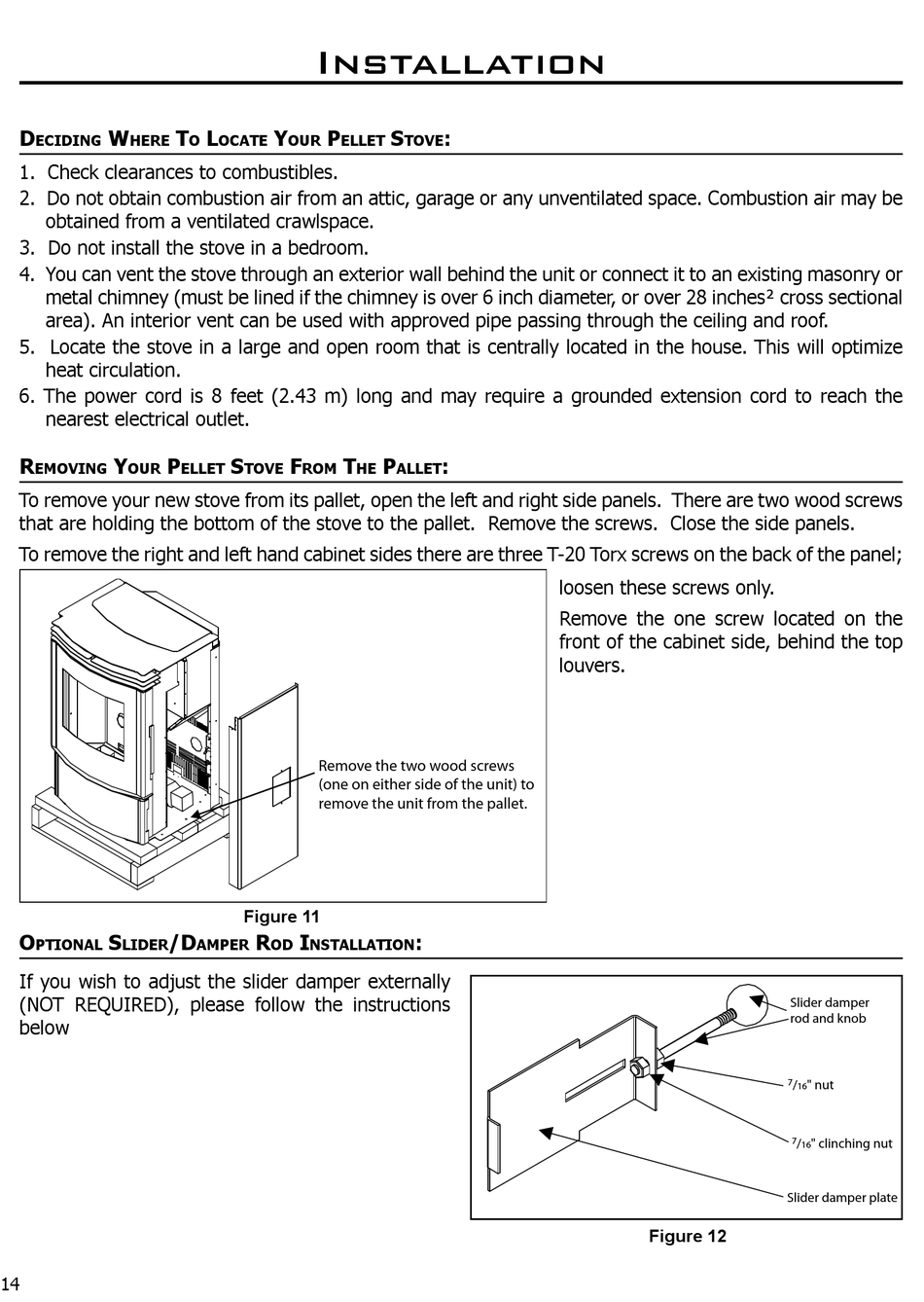

Installation; Deciding Where To Locate Your Pellet Stove; Removing Your Pellet Stove From The Pallet; Optional Slider/Damper Rod Installation - Enviro EVOLUTION Owner's Manual

D W T
ECIDING HERE
1. Check clearances to combustibles.
2. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be
obtained from a ventilated crawlspace.
3. Do not install the stove in a bedroom.
4. You can vent the stove through an exterior wall behind the unit or connect it to an existing masonry or
metal chimney (must be lined if the chimney is over 6 inch diameter, or over 28 inches² cross sectional
area). An interior vent can be used with approved pipe passing through the ceiling and roof.
5. Locate the stove in a large and open room that is centrally located in the house. This will optimize
heat circulation.
6. The power cord is 8 feet (2.43 m) long and may require a grounded extension cord to reach the
nearest electrical outlet.
R Y P
EMOVING OUR ELLET
To remove your new stove from its pallet, open the left and right side panels. There are two wood screws
that are holding the bottom of the stove to the pallet. Remove the screws. Close the side panels.
To remove the right and left hand cabinet sides there are three T-20 Torx screws on the back of the panel;
O S /D
PTIONAL LIDER
If you wish to adjust the slider damper externally
(NOT REQUIRED), please follow the instructions
below
14

Installation

L Y P
O OCATE OUR ELLET
S F T
TOVE ROM HE
������ ��� ��� ���� ������
���� �� ������ ���� �� ��� ����� ��
������ ��� ���� ���� ��� �������
Figure 11
R I
AMPER OD NSTALLATION
S :
TOVE
P :
ALLET
loosen these screws only.
Remove the one screw located on the
front of the cabinet side, behind the top
louvers.
:
������ ������
��� ��� ����
� � � ���
��
�
� � ��������� ���
��
������ ������ �����
Figure 12
