Vertical Installation - Enviro EVOLUTION Owner's Manual

V I
ERTICAL NSTALLATION
1. Choose a stove location that is ideal. See the section "Deciding Where to Locate Your Pellet Stove".
2. Place the unit on the hearth pad (if installed on a carpeted surface) and space the unit in such a
manner that when the pellet vent is installed vertically, it will be 3" (76 mm) away from a combustible
wall.
3. Locate the center of the fresh air intake pipe on the unit. Match that center with the same point on
the wall and cut a hole about 21⁄8 (53.9 mm) in diameter.
4. Install the fresh air intake pipe.
5. Install the tee with clean out.
6. Install the pellet vent upward from there. When you reach the ceiling, make sure that the vent goes
through the ceiling fire stop. Maintain a 3" (76 mm) distance to combustibles and keep attic insulation
away from the pipe.
7. Finally, extend the pellet vent to go through the roof flashing.
8. Ensure that the rain cap is approximately 36" (900 mm) above the roof.
9. The same methods apply for vertical installation outside. Install wall thimble and pipe supports.
���� �� ��� ������ ������
Installation
:
���� ��� ������� ��� ��
�� ����� ��� ����� ���
���� ��������
���� ������
���� ���� ����
������� ������
������� �����
�������� ���� ����
����� ��� ��� ����
���� �������
�� �
����� ��� ���� �������� ����
�������� � ������ ���� ���
���������� �� �������������

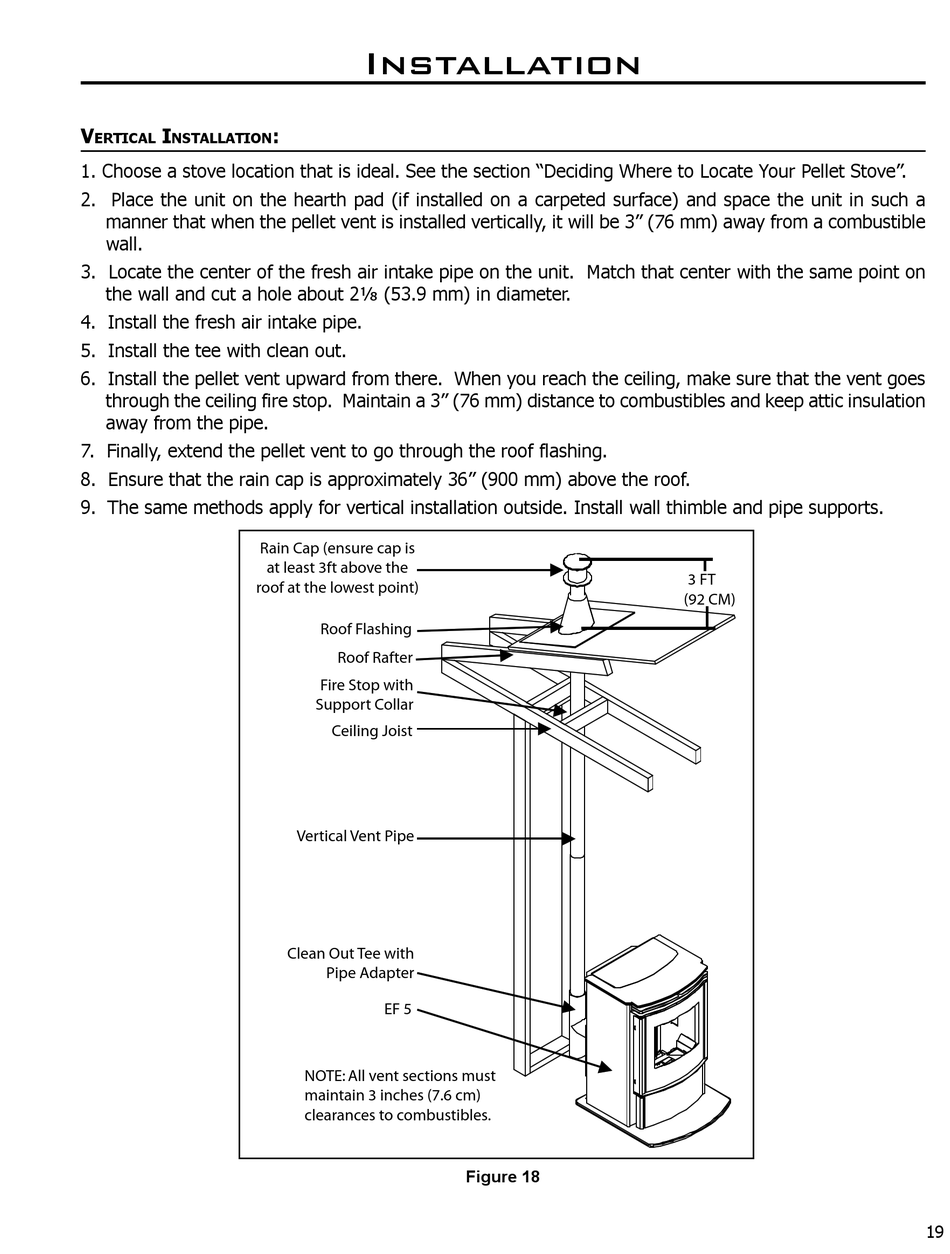

Figure 18
� ��
��� ���
19
