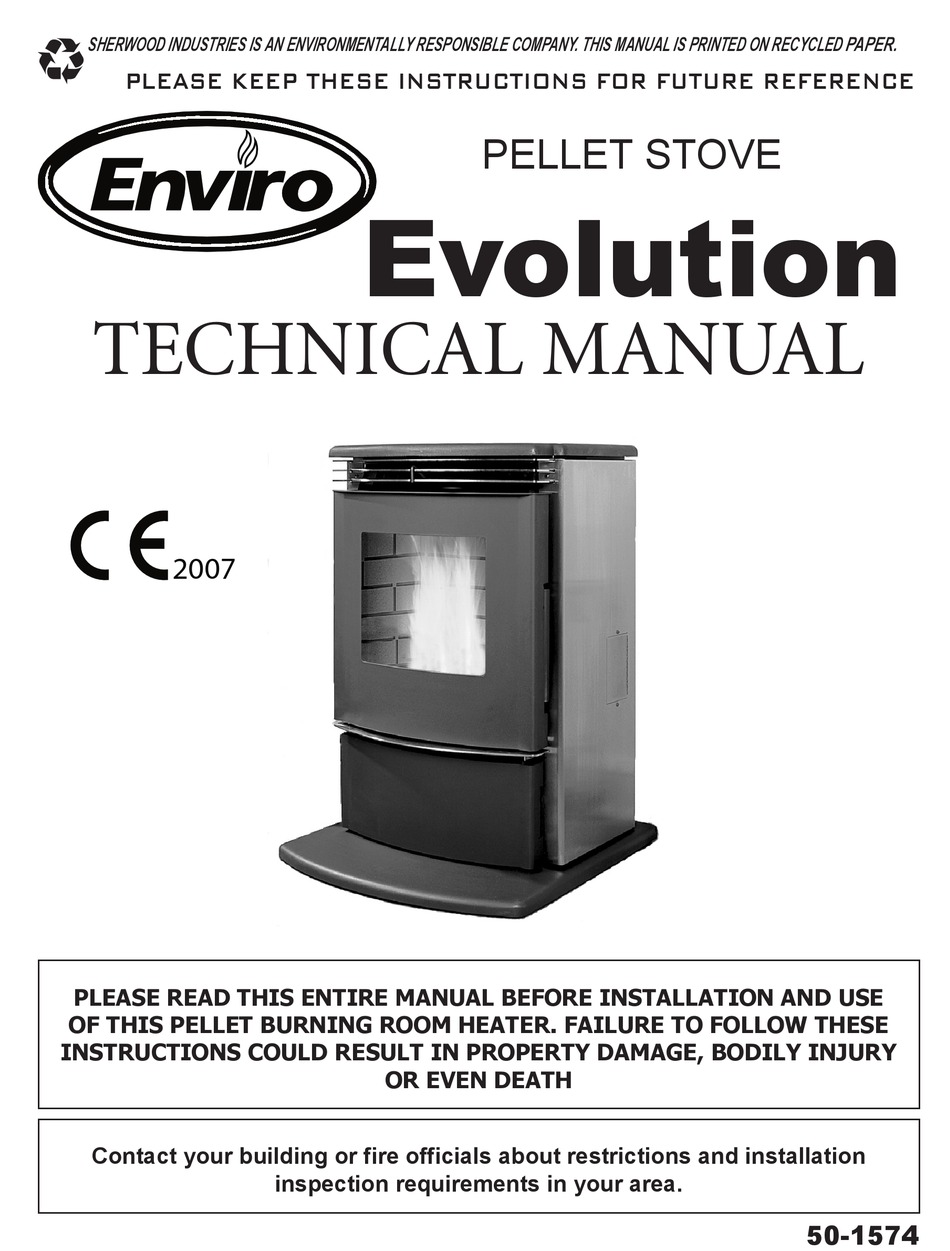

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
PELLET STOVE
Evolution
TECHNICAL MANUAL
����
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-1574

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50-1574 and is the answer not in the manual?

Questions and answers

Summary of Contents for Enviro 50-1574

  • Page 1 PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH Contact your building or fire officials about restrictions and installation inspection requirements in your area. 50-1574...
  • Page 2: Table Of Contents

    Table of Contents Safety Warnings & Recommendations...3 Installation...6 Rating Label Location...6 Deciding Where to Locate your Pellet Appliance...6 Removing Pellet Stove From Pallet...6 Dimensions...7 Clearances to Combustibles...8 Alcove Clearances...8 Hearth Pad Pedestal Installation...9 Vent Termination Requirements...10 Outside Fresh-Air Connection...11 Exhaust And Fresh Air Intake Locations...11 Mobile Home Installation...12...
  • Page 3: Safety Warnings & Recommendations

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
  • Page 4 CLEANING: There will be some build up of fly ash and small amounts of creosote in the exhaust. This will vary due to the ash content of the fuel used and the operation of the stove. It is advisable to inspect and clean the exhaust vent semi-annually or every two tons of pellets.
  • Page 5 It is very important to ensure that the exhaust system be sealed and airtight. The ash pan and viewing door must be locked securely for proper and safe operation of the pellet stove. Do not burn with insufficient combustion air. A periodic check is recommended to ensure proper combustion air is admitted to the combustion chamber.
  • Page 6: Installation

    3. Do not install the stove in a bedroom. 4. You can vent the stove through an exterior wall behind the unit or connect it to an existing masonry or metal chimney (must be lined if the chimney is over 15 cm (6”) diameter, or over 180 cm² (28 inches²) cross sectional area).
  • Page 7: Dimensions

    IMENSIONS IMPORTANT: When not installing the optional Hearth Pad on the unit, the minimum requirements for protection on combustibles floors are a width of 620mm (243⁄8”) & depth 670mm (263⁄8”) under the unit. Classification Class I IP-20 Voltage 220 - 240 V Maximum Power Requirement 525W (1793 BTU/hr) Maximum Flue Gas Temperature...
  • Page 8: Clearances To Combustibles

    LEARANCES TO OMBUSTIBLES This unit can be installed on a combustible floor when installed with the optional hearth pad part 50-1568 (for example linoleum, hardwood flooring). If this unit is to be installed onto a carpeted surface, a hearth pad must be used for stability. Back Wall 4"...
  • Page 9: Hearth Pad Pedestal Installation

    EARTH EDESTAL NSTALLATION This unit can be installed on a combustible floor (e.g. linoleum, hardwood flooring) when the Optional Hearth Pad is installed. If this unit is to be installed onto a carpeted surface, a solid pad must be used underneath the Optional Hearth Pad for stability.
  • Page 10: Vent Termination Requirements

    ERMINATION EQUIREMENTS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 2: Use in conjunction with Figure 6 for allowable exterior vent termination locations. Letter Minimum Clearance 61cm (24 in) 122 cm (48 in) 30 cm (12 in)
  • Page 11: Outside Fresh-Air Connection

    UTSIDE RESH ONNECTION This Heater must have adequate air for proper combustion in the room that it is installed. A Fresh-air intake is strongly recommended for all installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures. The inlet to the intake must be below and a minimum of 305mm (12”) away from the unit exhaust outlet.
  • Page 12: Mobile Home Installation

    CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED. ORNER HROUGH NSTALLATION Installation electrically ENVIRO EF5 Optional Hearth Pad Flooring Steel Frame Figure 9: Mobile home installation. 4" (10 cm) (10 cm) Figure 10: Corner Installation.
  • Page 13: Horizontal Exhaust Through Wall Installation

    2. Install a non-combustible hearth pad (where necessary). 3. Place the appliance 375 mm (15”) away from the wall. If the stove is to be set on a hearth pad, set the unit on it.
  • Page 14: Through Wall With Vertical Rise And Horizontal Termination Installation- Recommended

    (or stainless steel termination hood). Installation to use if there is a concrete or retaining wall in line with exhaust vent on pellet stove. The termination must be 305mm (12”) from the outside wall and 305mm (12”) above the ground.
  • Page 15: Inside Vertical Installations

    NSIDE ERTICAL NSTALLATIONS 1. Choose a stove location that is ideal. See the section “D 2. Place a non-combustible hearth pad where necessary. 3. Place the unit on the hearth pad (if installed on a carpeted surface) and space the unit in a manner so when the pellet vent is installed vertically, it will be 100mm (4”) away from a...
  • Page 16: Hearth Mount Installation

    EARTH OUNT NSTALLATION Figure 16: Hearth mount installation. Installation Rain cap Flashing 4" (10cm) Figure 15: Outside Vertical Installation. Rain Cap Refer to Figures 16. Seal Plate 1. Lock fireplace damper in the open position. 2. Install a positive flue connector at the Existing Masonary fireplace dampers.
  • Page 17: Exterior Mounted Exhaust Blower

    The Evolution can be equipped with an externally mounted exhaust blower. This optional kit includes all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements stated in your manual and allows installation with the least amount of interference with house framing, plumbing, wiring, etc.
  • Page 18: Typical Through Wall With Exterior Blower Kit Installation - Horizontal Termination

    YPICAL HROUGH Electrical Cable Figure 20: Through Wall Installation with Exterior Blower Kit. NOTE: Ensure that all interior vent connections are sealed by placing a small bead of high temperature silicone around each chimney connection. Also ensure that all vertical vent sections are properly supported and that all clearances to combustibles are maintained in accordance with the vent manufacturer’s specifications.
  • Page 19: Typical Through Wall With Exterior Blower Kit Installation - Vertical Termination

    YPICAL HROUGH Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit. Roof Sheathing Rain Cap Roof Flashing Roof Rafters Ceiling Joists Vent Pipe Exterior Wall...
  • Page 20: Thermostat Installation

    Heat Indicator. If the heat in the room becomes to great, the high limit switch may turn the stove off and the switch will have to be manually reset. To reset the high limit switch, remove the right cabinet side.
  • Page 21: Slider/Damper Set-Up

    SPECIAL NOTES: Pellet quality is a major factor in how the Pellet stove will operate. If the pellets have a high moisture content or ash content the fire will be less efficient and has a higher possibility of the fire building up and creating clinkers (hard ash build-up).
  • Page 22: Troubleshooting

    DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication.
  • Page 23 Troubleshooting üPoor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning or operational. üExhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service.
  • Page 24 üSet the auger trim till the #1 and #5 lights are illuminated. If the stove goes out and there are partially burned pellets left in the burn pot liner, the stove has shut down due to a lack of air, exhaust temperature, or power failure.
  • Page 25: Wiring Diagram

    Wiring Diagram Optional Exterior Exhaust Blower Thermostat 5 Amp Fuse Black White Orange Orange Purple Blue Yellow Grey Grey Brown Brown Connect Thermostat Here Armor Cable Supplied Black White White Combustion Blue Blower Power Cord Ground 115V 115V Black White 220V 220V Brown...
  • Page 26: Parts List

    Reference # Description 120°F (49°C) Ceramic Fan Temperature Sensor Window Channel Tape - 1.8m (72”) Auger Motor - 220V Combustion Blower Mounting Gasket Combustion Blower Housing Gasket (Circular) High Limit Temp Sensor 200°F (93°C) Manual Reset Vacuum Switch - 220V Silicone Hose Aluminum Hose Barb Shoulder Bolt, Hardened Bush &...
  • Page 27 Part # 50-088 50-097 50-162 50-293 50-294 50-323 50-332 50-333 50-513 50-585 50-492 50-646 50-689 50-713 50-834 50-899 50-900 50-910 50-961 50-1085 50-1222 50-1254 50-1255 50-1342 50-1376 50-1411 50-1474 50-1475 50-1476 50-1522 50-1525 50-1566 50-1368 50-1448 50-1568 50-1573 50-1574 50-1579 50-1584...
  • Page 28: Parts Diagram - Components

    Parts Diagram - Components �� � �� � �� �� � �� �� � �� �� �� �� �� EVOLUTION - Components May 2007...
  • Page 29: Parts Diagram - Steel

    Parts Diagram - Steel...
  • Page 30: Installation Data Sheet

    NAME OF DEALER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ NAME OF INSTALLER: _________________________________________ (dd/mm/yyyy) ADDRESS: (dd/mm/yyyy) _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com September 10, 2007 C-11438...
