SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

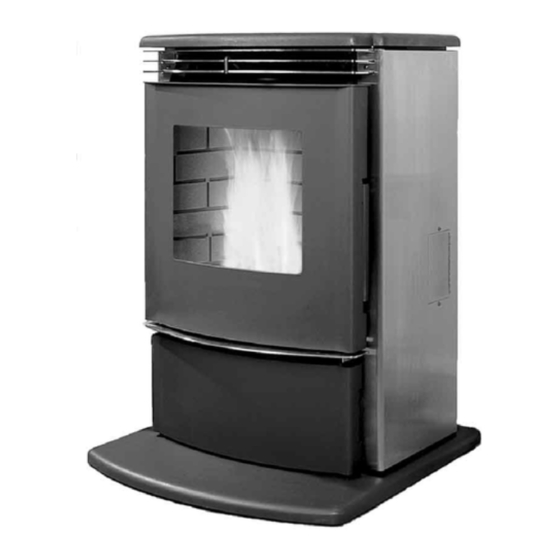

PELLET STOVE
Evolution-A
TECHNICAL MANUAL
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO
FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH.
50-1483
Advertisement
Table of Contents
Related Manuals for Enviro Evolution-A
Summary of Contents for Enviro Evolution-A
- Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE Evolution-A TECHNICAL MANUAL Contact your building or fire officials about restrictions and installation inspection requirements in your area.
-
Page 2: Table Of Contents
Table of Contents Introduction..........................3 Important Safety Data......................3 Safety Warnings And Recommendations................3 Specifications..........................5 Dimensions.........................5 Rating Label Location......................5 Rating Label........................6 Installation..........................7 Deciding Where to Locate your Pellet Appliance..............7 Removing Pellet Stove From Pallet..................7 Clearances to Combustibles....................8 Alcove Clearances........................8 Optional Hearth Pad Installation....................9 Thermostat Installation......................9 Vent Termination Requirements...................10 Fresh-Air..........................11... -
Page 3: Introduction
To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions. - Page 4 GLASS: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.
-
Page 5: Specifications
Specifications IMENSIONS " When not installing the optional (708 mm) Hearth Pad on the unit, the minimum requirements for floor protection are a width of 24 " & depth of 26 " " (619 mm) " " (565 mm) (539 mm) "... -
Page 6: Rating Label
Specifications ATING ABEL Figure 2: Rating Label. -
Page 7: Installation
Installation ECIDING HERE TO OCATE YOUR ELLET PPLIANCE 1. Check clearances to combustibles. 2. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be obtained from a ventilated crawlspace. 3. Do not install the stove in a bedroom. 4. -
Page 8: Clearances To Combustibles
Installation LEARANCES TO OMBUSTIBLES This unit can be installed on a combustible floor when installed with the optional hearth pad part EF5-103 (for example linoleum, hardwood flooring). If this unit is to be installed onto a carpeted surface, a hearth pad must be used for stability. -
Page 9: Optional Hearth Pad Installation
Installation PTIONAL EARTH NSTALLATION This unit can be installed on a combustible floor (e.g. linoleum, hardwood flooring) when the Optional Hearth Pad is installed. If this unit is to be installed onto a carpeted surface, a solid pad must be used underneath the Optional Hearth Pad for stability. -
Page 10: Vent Termination Requirements
Installation ERMINATION EQUIREMENTS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 1: Use in conjunction with Figure 8 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened. -
Page 11: Fresh-Air
Installation RESH This Heater must have adequate air for proper combustion in the room that it is installed. A Fresh-air intake is strongly recommended for all ������� ���� installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures. -
Page 12: Mobile Home Installation
(permanently). ● Do not install in a room people sleep ● Outside fresh air is mandatory. Secure outside air connections directly to ENVIRO EF5 fresh air intake pipe and secure with Optional three (3) screws evenly spaced. Hearth Pad... - Page 13 Installation 1. Place the appliance 15” (37.5 cm) away from the wall. If the stove is to be set on a hearth pad, set the unit on it. 2. Locate the center of the exhaust pipe on the stove. Extend that line to the wall. Once you have located the center point on the wall, refer to pellet vent manufacturer installation instructions for correct hole size and clearance to combustibles.
-
Page 14: Through Wall With Vertical Rise And Horizontal Termination Installation- Recommended
Installation HROUGH ERTICAL ISE AND ORIZONTAL ERMINATION NSTALLATION ECOMMENDED ���� ������� ����������� ��� A 45° elbow with a screen may be used in place of the termination cap �������� ���� ������� (or stainless steel termination hood). �������� ������� �� ���� ���� ����... -
Page 15: Inside Vertical Installations
Installation NSIDE ERTICAL NSTALLATIONS 1. Choose a stove location that is ideal. See the section “D .” ECIDING HERE TO OCATE YOUR ELLET PPLIANCE 2. Place a non-combustible hearth pad where necessary. 3. Place the unit on the hearth pad (if Rain Cap (ensure cap installed on a carpeted surface) and is at least 3ft (91cm) -
Page 16: Hearth Mount Installation
Installation Rain cap Flashing 24" (61 cm) 3" (7.5 cm) Clearance 3" (7.5cm) Support bracket Tee with cleanout Type "L" vent Fresh air intake Figure 17: Outside Vertical Installation. EARTH OUNT NSTALLATION Rain Cap Refer to Figures 18. Seal Plate 1. -
Page 17: Exterior Mounted Exhaust Blower
Installation XTERIOR OUNTED XHAUST LOWER The EF5 can be equipped with an externally mounted exhaust blower. This optional kit includes all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements stated in your manual and allows installation with the least amount of interference with house framing, plumbing, wiring, etc. -
Page 18: Typical Through Wall With Exterior Blower Kit Installation - Horizontal Termination
Installation YPICAL HROUGH XTERIOR LOWER NSTALLATION ORIZONTAL ERMINATION EF 5 90° Elbow 45°Elbow with Rodent screen or stainless steel termination hood 2ft Riser Pipe Adaptor Exterior Blower Electrical Cable and Housing Figure 22: Through Wall Installation with Exterior Blower Kit. NOTE: Ensure that all vent connections are installed by placing a small bead of high temperature silicone at each chimney connection. -
Page 19: Typical Through Wall With Exterior Blower Kit Installation - Vertical Termination
Installation YPICAL HROUGH XTERIOR LOWER NSTALLATION ERTICAL ERMINATION Roof Sheathing Rain Cap Roof Flashing Roof Rafters Follow the previous pages for through wall Ceiling Joists installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit. -
Page 20: Slider/Damper Set-Up
Installation LIDER AMPER This is used to regulate the airflow through the pellet stove. The slider damper is located behind the left side panel. To open the left side panel, undo the one screw located in the upper front corner of the cabinet side between the louvers. Also loosen three screws down the back of the side panel.The combustion exhaust blower is a variable speed blower controlled by the heat output button. -
Page 21: Troubleshooting
Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1. - Page 22 Troubleshooting üCheck Vacuum levels in the exhaust channel by bypassing the Vacuum Switch, then remove the Vacuum hose from Vacuum Switch. Check exhaust vacuum readings by placing the open end of the Vacuum Hose on a Magnahelic Gauge (readings must be above .10” W.C. on low fire). If the motor fails to reach a 0.10”...
- Page 23 Troubleshooting 6. The 200 °F ( 93 °C) high limit temperature sensor has tripped. üReset sensor and determine cause – was it Convection Blower failure or 160 °F ( 71 °C) Temperature Sensor failure? Bypass the 160 °F ( 71 °C) sensor, does the Convection blower come on high if not replace the blower? If yes, replace sensor (located on the left side of the firewall).
-
Page 24: Wiring Diagram
Wiring Diagram Armor Cable Supplied Grey Optional Exterior Vacuum Exhaust Blower Grey Switch Black White White Combustion Blue Brown Blower Exhaust Temperature Sensor Power Cord Brown Ground Black 115V 115V White Black Black White 220V 220V Brown Blue Thermostat Common 5 Amp Fuse Ignitor... -
Page 25: Parts List
Parts List Reference Number Description Part Number 120°F (49°C) Ceramic Fan Temperature Sensor EC-001 Fan Controller Knob EC-040 Domestic Power Cord - 115V EC-042 Auger Motor - 115V EF-001 High Limit Temp Sensor 200°F (93°C) Manual Reset EF-016 Vacuum Switch - 115V EF-017 Silicone Hose EF-018... - Page 26 Parts List Reference Number Description Part Number Thermostat Interface 20-026 Cabinet Side Left - Stainless Steel 20-029 Cabinet Side Left - Painted 20-031 Cabinet Side Right - Stainless Steel 20-030 Cabinet Side Right - Painted 20-032 Cast Top 20-038 Control Panel Door 20-040 Control Panel Door - Stainless Steel 50-684...
-
Page 27: Parts Diagram - Components
Parts Diagram - Components �� � �� � � �� �� �� � �� Evolution Domestic - Components �� July 2006... -
Page 28: Parts Diagram - Steel
Parts Diagram - Steel... -
Page 29: Warranty
Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a stove, you’re buying a company with years of unequalled performance and quality. - Page 30 Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Enviro dealer before installation. 10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental conditions.
- Page 31 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.
-
Page 32: Installation Data Sheet
SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) DATE OF INSTALLATION:___________ ADDRESS: (dd/mm/yyyy) MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com May 7, 2009 C-11909...
