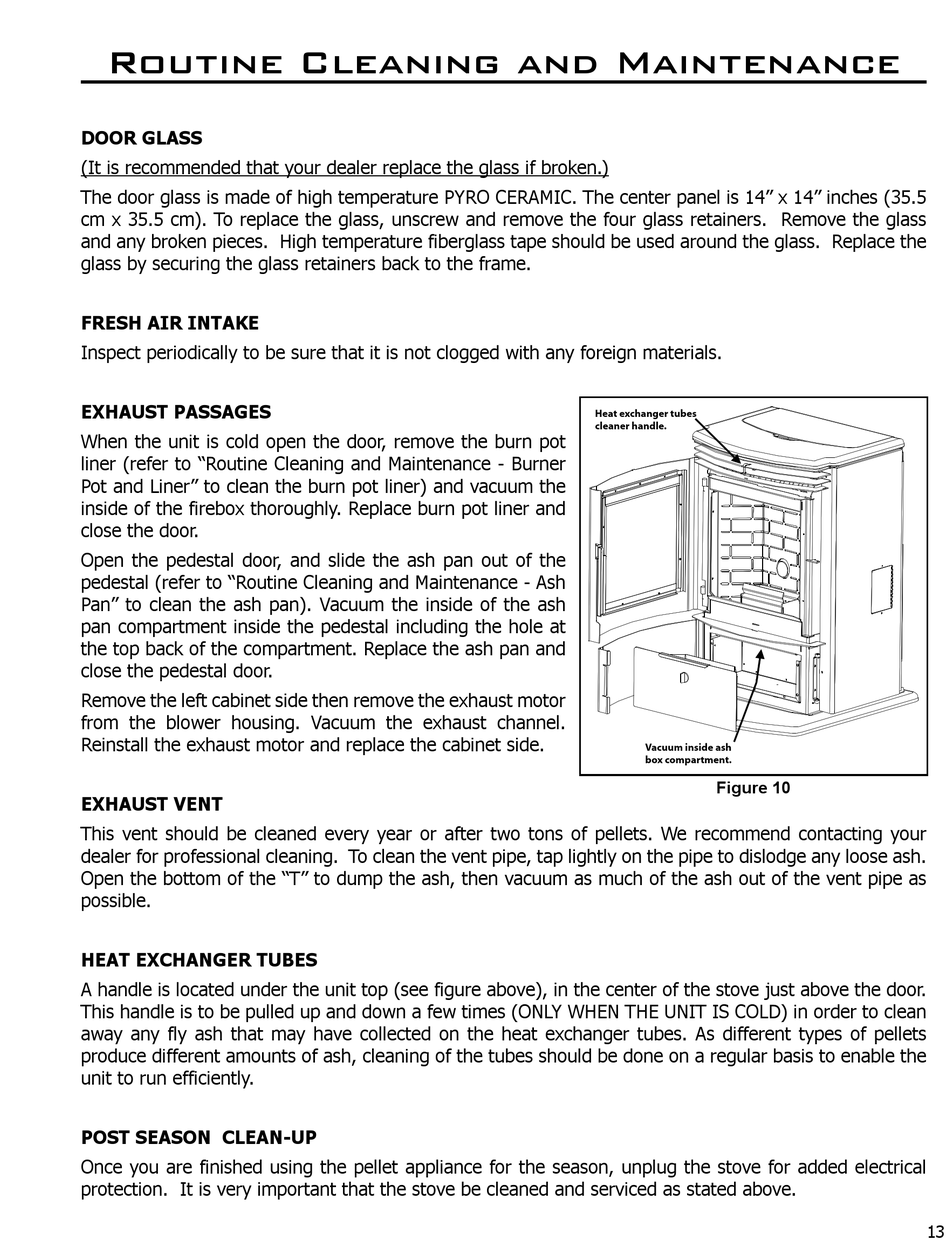

Enviro EVOLUTION Owner's Manual page 13

Routine Cleaning and Maintenance
DOOR GLASS
(It is recommended that your dealer replace the glass if broken.)
The door glass is made of high temperature PYRO CERAMIC. The center panel is 14" x 14" inches (35.5
cm x 35.5 cm). To replace the glass, unscrew and remove the four glass retainers. Remove the glass
and any broken pieces. High temperature fiberglass tape should be used around the glass. Replace the
glass by securing the glass retainers back to the frame.
FRESH AIR INTAKE
Inspect periodically to be sure that it is not clogged with any foreign materials.
EXHAUST PASSAGES
When the unit is cold open the door, remove the burn pot
liner (refer to "Routine Cleaning and Maintenance - Burner
Pot and Liner" to clean the burn pot liner) and vacuum the
inside of the firebox thoroughly. Replace burn pot liner and
close the door.
Open the pedestal door, and slide the ash pan out of the
pedestal (refer to "Routine Cleaning and Maintenance - Ash
Pan" to clean the ash pan). Vacuum the inside of the ash
pan compartment inside the pedestal including the hole at
the top back of the compartment. Replace the ash pan and
close the pedestal door.
Remove the left cabinet side then remove the exhaust motor
from the blower housing. Vacuum the exhaust channel.
Reinstall the exhaust motor and replace the cabinet side.
EXHAUST VENT
This vent should be cleaned every year or after two tons of pellets. We recommend contacting your
dealer for professional cleaning. To clean the vent pipe, tap lightly on the pipe to dislodge any loose ash.
Open the bottom of the "T" to dump the ash, then vacuum as much of the ash out of the vent pipe as
possible.
HEAT EXCHANGER TUBES
A handle is located under the unit top (see figure above), in the center of the stove just above the door.
This handle is to be pulled up and down a few times (ONLY WHEN THE UNIT IS COLD) in order to clean
away any fly ash that may have collected on the heat exchanger tubes. As different types of pellets
produce different amounts of ash, cleaning of the tubes should be done on a regular basis to enable the
unit to run efficiently.
POST SEASON CLEAN-UP
Once you are finished using the pellet appliance for the season, unplug the stove for added electrical
protection. It is very important that the stove be cleaned and serviced as stated above.
���� ��������� �����
������� �������
������ ������ ���
��� ������������
Figure 10
13
