Routine Cleaning and Maintenance

The following list of components should be inspected and maintained routinely to ensure that the
appliance is operating at its' optimum and giving you excellent heat value:
2-3 DAYS/WEEKLY
Burn Pot and Liner
Ash Pan
Inside Firebox
Door Glass
Heat Exchanger Tubes
Ash Pan and Door Gaskets
Door Latch
TOOLS REQUIRED TO CLEAN UNIT:
Torx T-20 Screwdriver,
with fine filter bag
WARNING: The vacuum must have a fine particle filter to prevent damage to the vacuum or
discharge of dust into the room.
ASH PAN AND DOOR GASKETS
After excessive use the gasketing may come loose. To repair this, glue the gasketing on using high-
temperature fiberglass gasket glue available from your local dealer. This is important to maintain an
airtight assembly.
DO NOT PLACE UNBURNED OR RAW PELLET FUEL IN ASH PAN.
BURNER POT AND LINER
This is the 'pot' where the pellets are burned. Every two to three days (when the unit is cold), remove
the burn-pot liner from the stove. Using a metal scrapper, remove material that has accumulated or is
clogging the liner's holes. Then dispose of the scrapped ashes from the liner and from inside the burn-
pot. Place the burn-pot back into the stove, making sure that the pipes are properly inserted into the burn
pot. Place the liner back into the burn-pot, making sure that the ignitor hole in the liner is aligned with
the ignitor tube. Pushing the liner up against the ignitor tube.
To remove the burn pot and burn pot liner, open the door using the door handle provided (located on the
right-hand side of the stove). Swing the door open. Lift the liner from the burn pot. Lift the burn pot from
the firebox by gently lifting up the front of the burn pot, then sliding the assembly from the air intake
tube and the ignitor.
ASH PAN:
This part is located under the burner, in the pedestal, and has a latching mechanism to secure it. To
remove the ash pan, open the cover from the right hand side, unlock the latch on the pedestal cover and
pull the pan out. Dump the ashes into a metal container stored away from combustibles. Monitor the ash
level every week. Remember that different pellet fuels will have different ash contents. Ash content is
a good indication of fuel efficiency and quality. Refer to "Warnings and Recommendations" for disposal
of ashes.
DO NOT PLACE UNBURNED OR RAW PELLET FUEL IN ASH PAN.
12
SEASON or 2 TONS OF FUEL
Exhaust Vent
Fresh Air Intake Tube
Blower Mechanisms
Heat Exchanger Tubes
Behind Firebox Liners
All Hinges
Post Season Clean-up
/ " wrench or socket, Brush, Soft Cloth, Vacuum
5
16
Burn Pot
Liner
Ignitor
Air Intake
Tube
Burn Pot

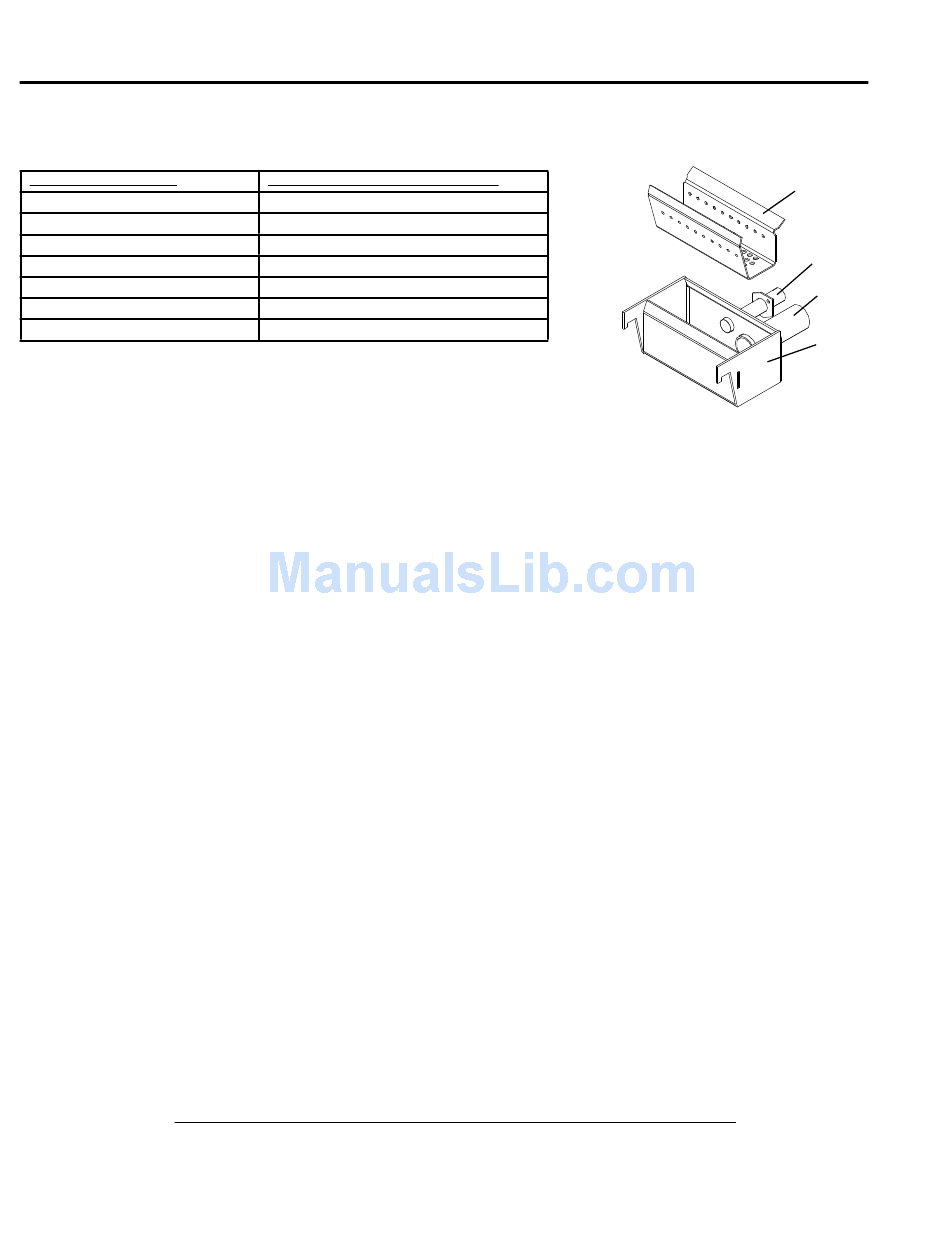

Figure 9
