Typical Through Wall Termination Installation With Exhaust Blower - Enviro EVOLUTION Owner's Manual

Hide thumbs Also See for EVOLUTION:

Table of Contents

YPICAL

HROUGH

NOTE:

Ensure that all vent connections are installed by placing a small bead of high temperature silicone at each

chimney connection.

Also ensure that all vertical vent sections are properly supported and that all clearances to combustibles

are maintained in accordance with the vent manufacturer's specifications.

��

Install an amour coated electrical cable from the exhaust blower housing, through the wall thimble and

attach to the pre drilled hole in the left hand rear hopper pillar. Hook up to wires from the exhaust blower

wiring harness.

All electrical connections must be in accordance to local code requirements

Installation

ALL

ERMINATION

NSTALLATION

��

ITH

XHAUST

��

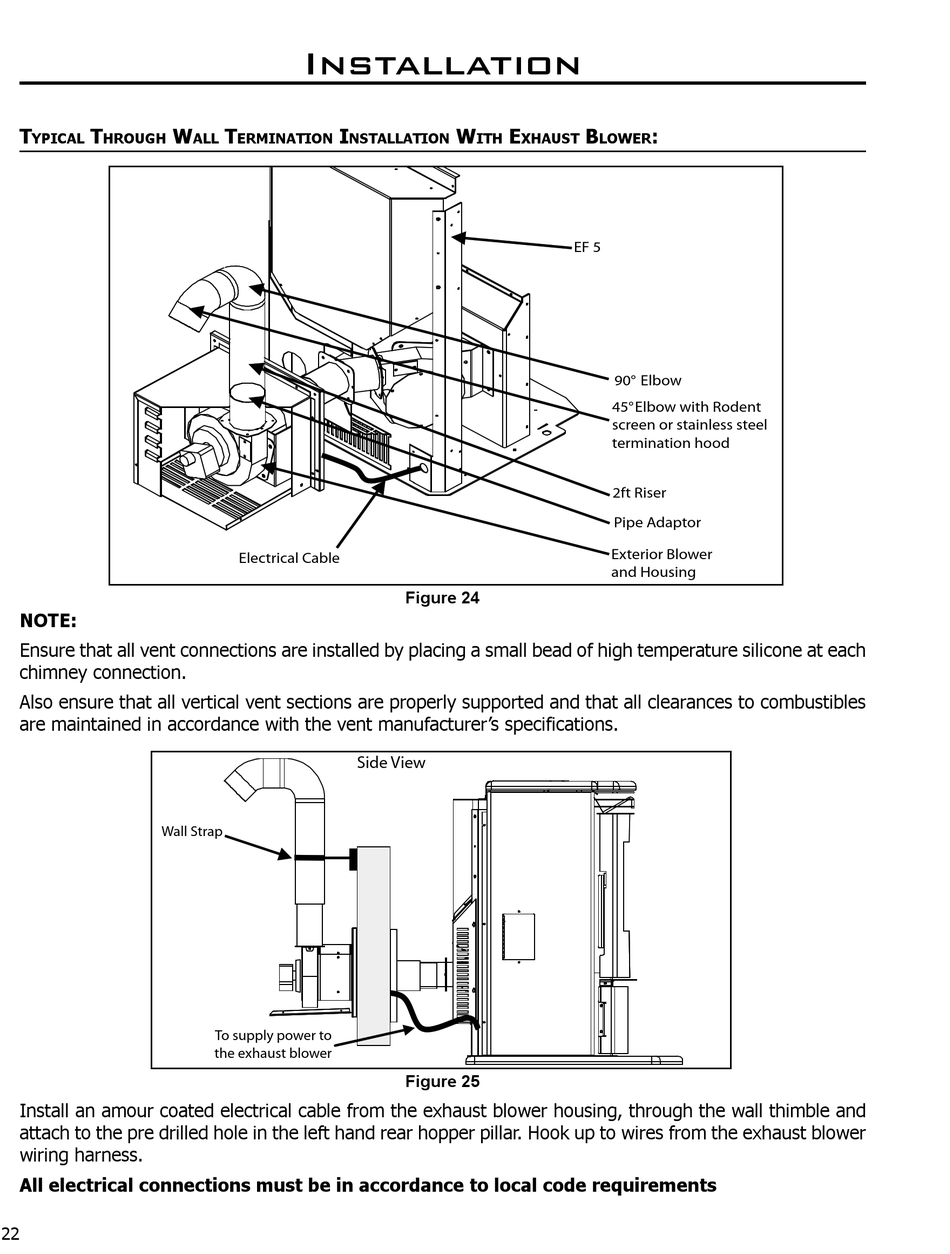

Figure 24

Figure 25

LOWER

��
