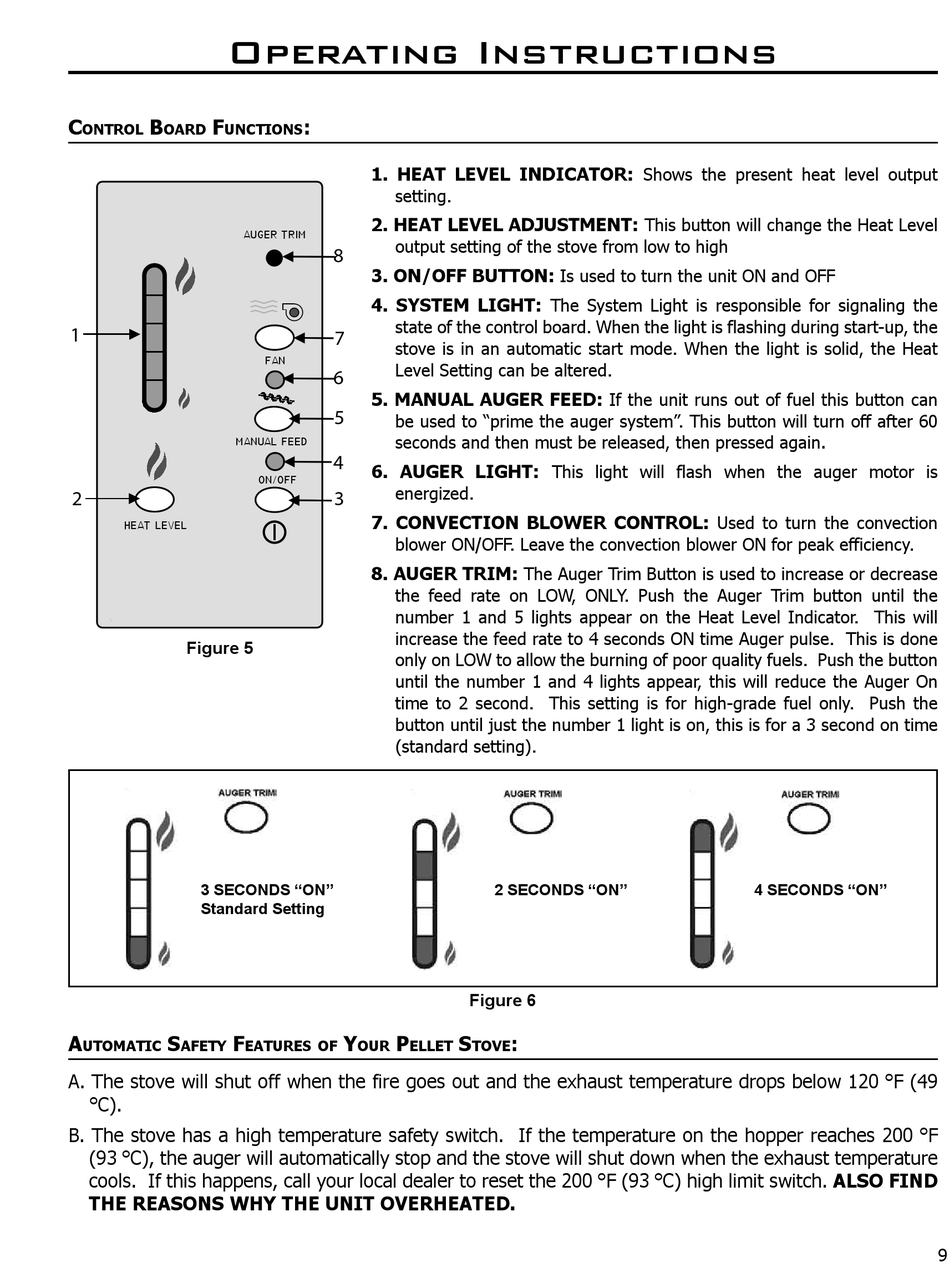

Operating Instructions

C B F
ONTROL OARD UNCTIONS
 
�
 
�
 
Figure 5
3 SECONDS "ON"
Standard Setting
A S F
UTOMATIC AFETY EATURES OF
A. The stove will shut off when the fire goes out and the exhaust temperature drops below 120 °F (49
°C).
B. The stove has a high temperature safety switch. If the temperature on the hopper reaches 200 °F
(93 °C), the auger will automatically stop and the stove will shut down when the exhaust temperature
cools. If this happens, call your local dealer to reset the 200 °F (93 °C) high limit switch. ALSO FIND
THE REASONS WHY THE UNIT OVERHEATED.
:
1. HEAT LEVEL INDICATOR: Shows the present heat level output
setting.
2. HEAT LEVEL ADJUSTMENT: This button will change the Heat Level
output setting of the stove from low to high
�
3. ON/OFF BUTTON: Is used to turn the unit ON and OFF
4. SYSTEM LIGHT: The System Light is responsible for signaling the
state of the control board. When the light is flashing during start-up, the
�
stove is in an automatic start mode. When the light is solid, the Heat

Level Setting can be altered.
�
5. MANUAL AUGER FEED: If the unit runs out of fuel this button can
�
be used to "prime the auger system". This button will turn off after 60
seconds and then must be released, then pressed again
�
6. AUGER LIGHT: This light will flash when the auger motor is

energized.
�
7. CONVECTION BLOWER CONTROL: Used to turn the convection
blower ON/OFF. Leave the convection blower ON for peak efficiency.
8. AUGER TRIM: The Auger Trim Button is used to increase or decrease
the feed rate on LOW, ONLY. Push the Auger Trim button until the
number 1 and 5 lights appear on the Heat Level Indicator. This will
increase the feed rate to 4 seconds ON time Auger pulse. This is done
only on LOW to allow the burning of poor quality fuels. Push the button
until the number 1 and 4 lights appear, this will reduce the Auger On
time to 2 second. This setting is for high-grade fuel only. Push the
button until just the number 1 light is on, this is for a 3 second on time
(standard setting).
Y P
OUR ELLET
2 SECONDS "ON"
Figure 6
S :
TOVE
.
4 SECONDS "ON"
9
