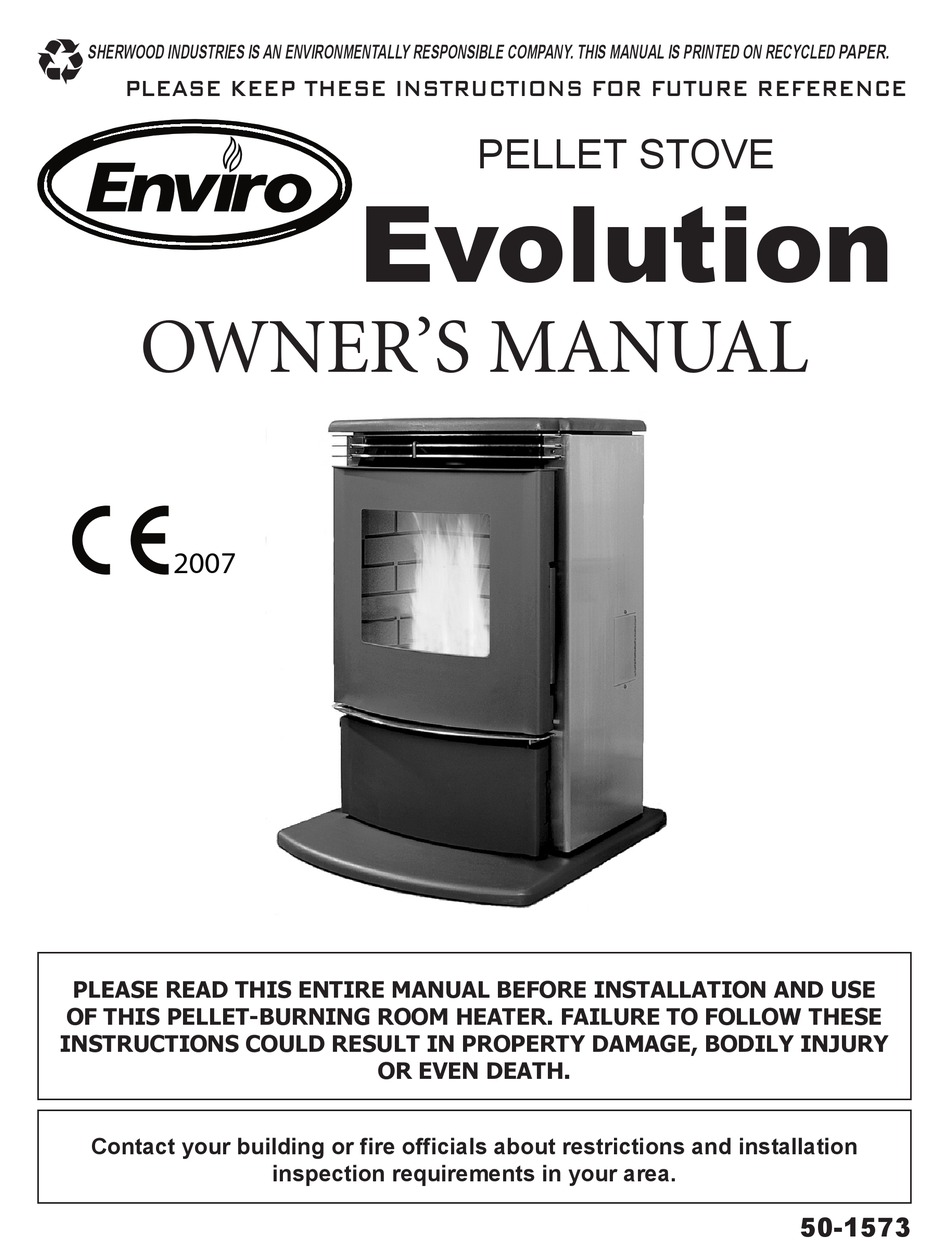

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
PELLET STOVE
Evolution
OWNER'S MANUAL
����
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-1573
Advertisement
Table of Contents
Related Manuals for Enviro 50-1573
Summary of Contents for Enviro 50-1573
- Page 1 PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. Contact your building or fire officials about restrictions and installation inspection requirements in your area. 50-1573...
-
Page 2: Table Of Contents
Pellet Quality...3 Safety Warnings & Recommendations...4 Specifications...6 Dimensions & Specifications...6 Operating Instructions...7 Control Board Functions...7 Automatic Safety Features of Your Pellet Stove...7 Operating Your Pellet Stove...8 Operating Instructions...9 Turning Your Pellet Stove Off...9 Slider/Damper Set-Up...9 Routine Cleaning and Maintenance...10 Installation Data Sheet...13... -
Page 3: Introduction
UALITY Pellet quality is important, please read the following: Your Enviro pellet stove has been designed to burn 6mm dia wood pellets only. DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in this manual. -
Page 4: Safety Warnings & Recommendations
CLEANING: There will be some build up of fly ash and small amounts of creosote in the exhaust. This will vary due to the ash content of the fuel used and the operation of the stove. It is advisable to inspect and clean the exhaust vent semi-annually or every two tons of pellets. - Page 5 Amps), 50 hertz electrical outlet and also must be accessible. If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges.
-
Page 6: Specifications
& S IMENSIONS PECIFICATIONS IMPORTANT: When not installing the optional Hearth Pad on the unit, the minimum requirements for protection on combustibles floors are a width of 620mm (243⁄8”) & depth 670mm (263⁄8”) under the unit. Classification Class I IP-20 Voltage 220 - 240 V Maximum Power Requirement... -
Page 7: Operating Instructions
AFETY EATURES OF A. EXHAUST TEMPERATURE SWITCH: The stove will shut off when the fire goes out and the exhaust temperature drops below 49°C (120°F). B. HIGH LIMIT SAFETY SWITCH: If the temperature on the hopper reaches 93°C (200°F), the auger will automatically stop and the stove will shut down when the exhaust temperature cools. -
Page 8: Manual Mode
(the Auger Feed Rate is pre-programmed during start-up). The Heat Level Indicator will show the Heat Level that the stove will run at after start-up. If this is the first time the unit has been started or the unit has run out of fuel, the auger will need to be primed. -
Page 9: Operating Instructions
Operating Instructions in MANUAL. When the thermostat contacts open, the stove’s HEAT LEVEL and Fans will drop down to the LOW setting for 30 minutes. If the thermostat contacts close within the 30 minutes, the HEAT LEVEL will return to the previous MANUAL setting. If the thermostat contacts remain open, the stove automatically begins its shutdown routine. -
Page 10: Routine Cleaning And Maintenance
DOOR GLASS CLEANING (2-3 days) Cleaning of the glass must only be done when stove is cold. Open the door by lifting the handle. The glass can be cleaned by wiping down the outside and inside of the glass with a dry soft cloth. - Page 11 Routine Cleaning and Maintenance If the glass has build up that can not be removed with only the cloth, clean the glass using paper towel and a gas appliance glass cleaner, this may be purchased through most dealers. If a gas appliance glass cleaner is not available, use a damp paper towel dipped in fly ash to clean the glass.
-
Page 12: Post Season Clean-Up
Inspect periodically to be sure that it is not clogged with any foreign materials. BLOWER MECHANISMS (annually) Unplug the stove then open the right and left side panels to access the two blowers. Vacuum all dust from motors. Both motors have sealed bearings, DO NOT lubricate these motors. Check gaskets and replace if needed. -
Page 13: Installation Data Sheet
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 NAME OF DEALER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ NAME OF INSTALLER: _________________________________________ (dd/mm/yyyy) ADDRESS: (dd/mm/yyyy) _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. www.enviro.com April 27, 2007 C-11207...
