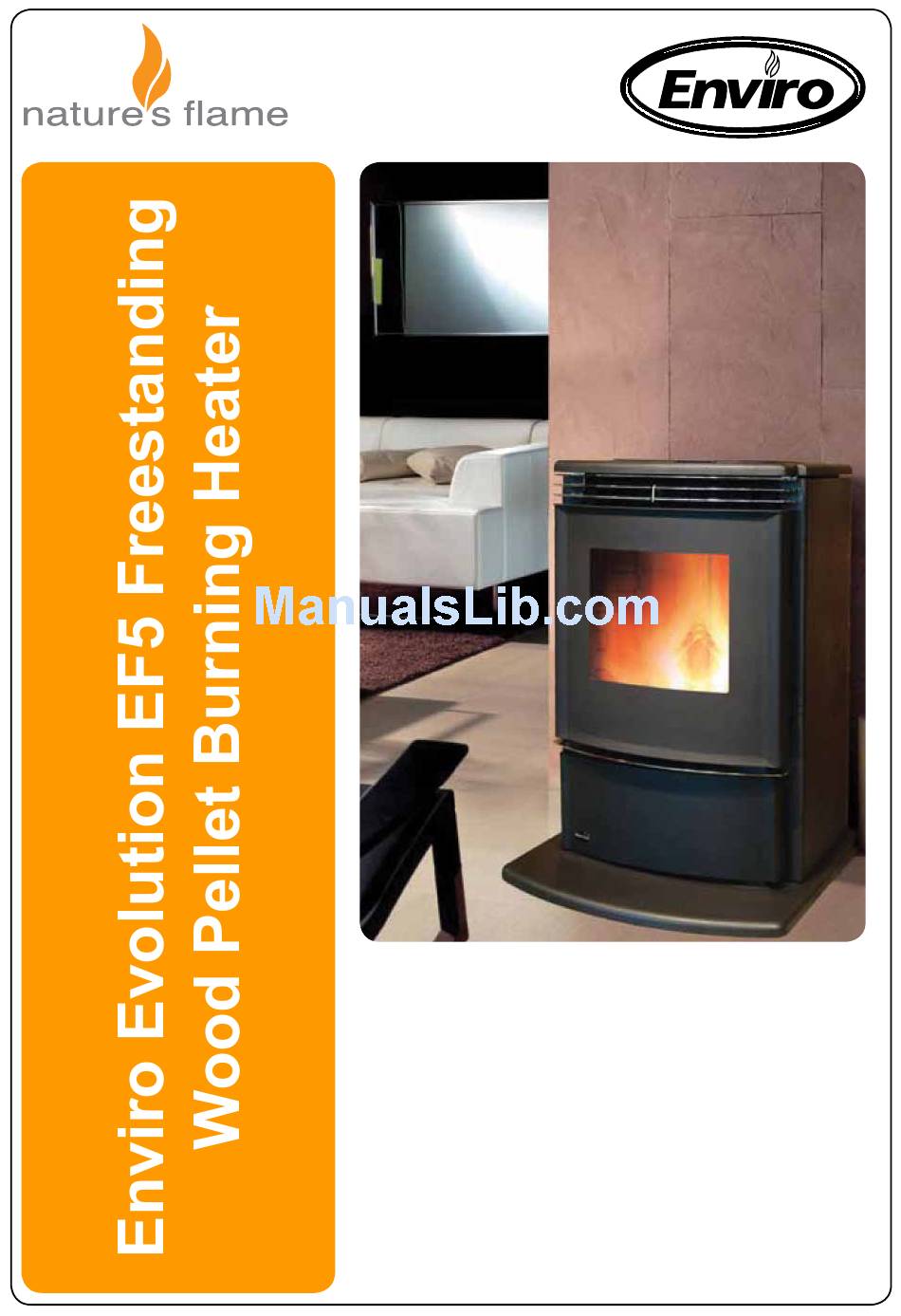

Enviro Evolution EF5 Freestanding
Wood Pellet Burning Heater
Installation Specifications
Safety testing of EF5 Evolution FS CB Pellet Burning Heater to
AS/NZS 2918. ARS 09/1981 & 08/1902
Emissions: 07/1664
Flue Kit Testing to AS/NZS 2918 AppF:05/1185
November 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolution EF5 and is the answer not in the manual?

Questions and answers

Related Manuals for Enviro Evolution EF5

Summary of Contents for Enviro Evolution EF5

  • Page 1 Enviro Evolution EF5 Freestanding Wood Pellet Burning Heater Installation Specifications Safety testing of EF5 Evolution FS CB Pellet Burning Heater to AS/NZS 2918. ARS 09/1981 & 08/1902 Emissions: 07/1664 Flue Kit Testing to AS/NZS 2918 AppF:05/1185 November 2011...

  • Page 2: Installation

    Specifications were correct at time of printing but may alter and those detailed below should be used as a guide only. Refer to the Installation and Operation Manual supplied with every Enviro Pellet Fire or if in doubt, consult your Switch Retailer. Refer to Safety Test 09/1981 for all clearances to combustibles.
  • Page 3 Location of the Pellet Fire Installation of the Enviro Evolution Wood Pellet Burning Heater should be undertaken by an experienced installer. Please read the Evolution Owners/Technical Manual thoroughly before commencing installation as failure to follow the instruction could cause damage to the pellet fire or property.

  • Page 4: Internal Standard Flue Kit

    Internal Standard Flue Kit Internal Standard Flue Kit (50) This flue kit may be used in new and replacement This ue kit may be used in new and replacement applications in rooms with stud height of 2.4m. applications in rooms with stud height of 2.4m. The The overall height of the flue is 3.6m.

  • Page 5: External Standard Flue Kit

    External Standard Flue Kit External Standard Flue Kit (51) This flue kit may be used in new and replacement This ue kit may be used in new and replacement applications with the flue penetrating the wall applications with the ue penetrating the wall behind behind the fire, running vertically up an outside the re, running vertically up an outside wall and wall and penetrating the soffit.
  • Page 6 Decktite - For all Steel Roof Profiles Please circle the flashing option to be used. When considering an alternative method please consult your local council. SEISMIC RESTRAINT: Enviro Evolution EF5 All installation scenarios for the require the use of hold-down anchors (one on each side) Fixing to Concrete Floor: Minimum M8 expansion anchors (M10 recommended) or min M8 epoxy- set anchors.
