SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

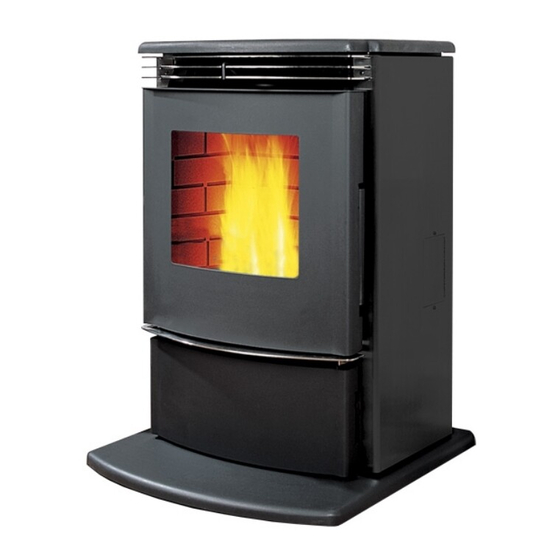

PELLET STOVE
Evolution
OWNER'S MANUAL
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO
FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH.
50-1021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50-1021 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enviro 50-1021

  • Page 1 Contact your building or fire officials about restrictions and installation inspection requirements in your area. PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. 50-1021...
  • Page 2: Table Of Contents

    Pellet Quality...3 Important Safety Data...4 Safety Warnings And Recommendations...4 Operating Instructions...6 Control Board Functions...6 Automatic Safety Features of Your Pellet Stove...6 Operating Your Pellet Stove...7 Turning Your Pellet Stove Off...7 Routine Cleaning and Maintenance...8 Installation...11 Deciding Where to Locate your Pellet Appliance...11 Removing Pellet Stove From Pallet...11...
  • Page 3: Introduction

    UALITY Pellet quality is important, please read the following: Your enviro pellet stove has been designed to burn wood pellets only. Do not use any other type of fuel, as this will void any warranties stated in this manual. The performance of your pellet stove is greatly affected by the type and quality of wood pellets being burned.
  • Page 4: Important Safety Data

    CLEANING: There will be some build up of fly ash and small amounts of creosote in the exhaust. This will vary due to the ash content of the fuel used and the operation of the stove. It is advisable to inspect and clean the exhaust vent semi-annually or every two tons of pellets.
  • Page 5: Save This Instruction Manual For Future Reference

    GLASS: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.
  • Page 6: Operating Instructions

    UTOMATIC AFETY EATURES OF A. The stove will shut off when the fire goes out and the exhaust temperature drops below 120°F (49°C). B. The stove has a high temperature safety switch. If the temperature on the hopper reaches 200°F (93°C), the auger will automatically stop and the stove will shut down when the exhaust temperature...
  • Page 7: Operating Your Pellet Stove

    DO NOT OPERATE THE UNIT WITH THE DOOR OR ASH PAN OPEN. MANUAL MODE: To START: Press the ON / OFF button. The stove will turn on. The system light will flash. The Auger Light will flash with each pulse of the auger (the Auger Feed Rate is pre-programmed during start-up).
  • Page 8: Routine Cleaning And Maintenance

    To remove the burn pot and burn pot liner, open the door using the door handle provided (located on the left-hand side of the stove). Swing the door open. Lift the liner from the burn pot. Lift the burn pot from the firebox by gently lifting up the front of the burn pot, then sliding the assembly from the air intake tube and the ignitor cartridge.
  • Page 9 DOOR GLASS CLEANING (2-3 days) Cleaning of the glass must only be done when stove is cold. Open the door by lifting the handle. The glass can be cleaned by wiping down the outside and inside of the glass with a dry soft cloth.
  • Page 10: Post Season Clean-Up

    BLOWER MECHANISMS (season) Unplug the stove then open the right and left side panels to access the two blowers. Vacuum all dust from motors. Only the convection blower motor (on the right side of the stove) will require lubrication.
  • Page 11: Installation

    An interior vent can be used with approved pipe passing through the ceiling and roof. 5. Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation. 6. The power cord is 8 feet (2.43 m) long and may require a grounded extension cord to reach the nearest electrical outlet.
  • Page 12: Appliance Dimensions

    PPLIANCE IMENSIONS " (619 mm) " (565 mm) Installation " When not installing the optional (708 mm) Hearth Pad on the unit, the minimum requirements for floor protection are a width of 24 depth of 26 " (840 mm) Figure 5: Dimensions of EF5. "...
  • Page 13: Clearances To Combustibles

    LEARANCES TO OMBUSTIBLES This unit can be installed on a combustible floor when installed with the optional hearth pad part EF5-103 (for example linoleum, hardwood flooring). If this unit is to be installed onto a carpeted surface, a hearth pad must be used for stability. Back Wall 3"...
  • Page 14: Hearth Pad Pedestal Installation

    EARTH EDESTAL NSTALLATION Carefully place the back of the pellet appliance on the pallet and install the hearth pad. Align the holes in the hearth pad and the unit and install the four (4) screws provided. Place the unit on its back and install the hearth pad using the four screws provided This unit can be installed on a combustible floor due to the built in pedestal hearth pad (for example linoleum, hardwood flooring).
  • Page 15: Vent Termination Requirements

    ERMINATION EQUIREMENTS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 1: Use in conjunction with Figure 9 for allowable exterior vent termination locations. Letter Minimum Clearance 24 in (61 cm) 48 in (122 cm)
  • Page 16: Outside Fresh-Air Connection

    UTSIDE RESH ONNECTION Outside fresh air is mandatory when installing this unit in airtight homes and mobile homes. A Fresh-air intake is strongly recommended for all installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures.
  • Page 17: Mobile Home Installation

    CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED. ORNER HROUGH NSTALLATION Installation electrically ENVIRO EF5 Optional Hearth Pad Flooring Steel Frame Figure 12: Mobile home installation. 3" (7.5 cm) 3" (7.5 cm) Figure 13: Corner Installation.
  • Page 18: Horizontal Exhaust Through Wall Installation

    2. Install a non-combustible hearth pad (where necessary). 3. Place the appliance 15” (37.5 cm) away from the wall. If the stove is to be set on a hearth pad, set the unit on it.
  • Page 19: Through Wall With Vertical Rise And Horizontal Termination Installation- Recommended

    Installation to use if there is a concrete or retaining wall in line with exhaust vent on pellet stove. The termination must be 12 inches (30 cm) from the outside wall and 12 inches (30 cm) above the ground.
  • Page 20: Inside Vertical Installations

    NSIDE ERTICAL NSTALLATIONS 1. Choose a stove location that is ideal. See the section “D 2. Place a non-combustible hearth pad where necessary. 3. Place the unit on the hearth pad (if installed on a carpeted surface) and space the unit in a manner so when the pellet vent is installed vertically, it will be 3”...
  • Page 21: Hearth Mount Installation

    EARTH OUNT NSTALLATION Figure 19: Hearth mount installation. Installation Rain cap Flashing 3" (7.5cm) Fresh air Figure 18: Outside Vertical Installation. Rain Cap Refer to Figures 19. Seal Plate 1. Lock fireplace damper in the open position. 2. Install a positive flue connector at the fireplace dampers.
  • Page 22: Exterior Mounted Exhaust Blower

    The EF5 can be equipped with an externally mounted exhaust blower. This optional kit includes all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements stated in your manual and allows installation with the least amount of interference with house framing, plumbing, wiring, etc.
  • Page 23: Typical Through Wall With Exterior Blower Kit Installation - Horizontal Termination

    YPICAL HROUGH Electrical Cable Figure 23: Through Wall Installation with Exterior Blower Kit. NOTE: Ensure that all vent connections are installed by placing a small bead of high temperature silicone at each chimney connection. Also ensure that all vertical vent sections are properly supported and that all clearances to combustibles are maintained in accordance with the vent manufacturer’s specifications.
  • Page 24: Typical Through Wall With Exterior Blower Kit Installation - Vertical Termination

    Installation YPICAL HROUGH XTERIOR LOWER NSTALLATION ERTICAL ERMINATION Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit. Roof Sheathing Rain Cap Roof Flashing Roof Rafters...
  • Page 25: Thermostat Installation

    Heat Indicator. If the heating load is not great enough when the stove is on low, the high limit switch will turn the stove off and the switch will have to be manually reset. To reset the high limit switch, remove the right cabinet side.
  • Page 26: Slider/Damper Set-Up

    SPECIAL NOTES: Pellet quality is a major factor in how the Pellet stove will operate. If the pellets have a high moisture content or ash content the fire will be less efficient and has a higher possibility of the fire building up and creating clinkers (hard ash build-up).
  • Page 27: Troubleshooting

    Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication.
  • Page 28: Wiring Diagram

    üPoor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning or operational. üExhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service.
  • Page 29: Fuses

    üSet the auger trim till the #1 and #5 lights are illuminated. If the stove goes out and there are partially burned pellets left in the burn pot liner, the stove has shut down due to a lack of air, exhaust temperature, or power failure.
  • Page 30: Wiring Diagram

    White Black Grey Vacuum Grey Switch Blue White Combustion Blower Brown F (49 Exhaust Temperature Sensor Brown Black White Black Ignitor Purple Convection White Blower Yellow Auger White Motor F (93 Orange High Limit Orange Temperature Sensor Wiring Diagram Armor Cable Supplied Power Cord Ground...
  • Page 31: Parts List

    Parts List Reference Number Description 120°F (49°C) Ceramic Fan Temperature Sensor Fan Controller Knob Domestic Power Cord - 115V Auger Motor - 115V High Limit Temp Sensor 200°F (93°C) Manual Reset Vacuum Switc - 115V Silicone Hose Aluminum Hose Barb Fan Controller with Knob - 115V Shoulder Bolt, Hardened Bush &...
  • Page 32 20-023 20-026 20-029 20-031 20-030 20-032 20-038 20-040 50-684 20-045 20-054 20-070 20-073 50-088 50-096 50-097 50-162 50-178 50-833 50-179 50-293 50-294 50-323 50-330 50-331 50-332 50-333 50-512 50-585 50-619 50-689 50-899 50-901 50-910 50-1021 50-1085 50-1223 50-1254 50-1255 50-1256...
  • Page 33: Parts Diagram - Components

    Parts Diagram - Components �� � �� � � �� �� �� � �� Evolution Domestic - Components �� February 2005...
  • Page 34: Parts Diagram - Steel

    Parts Diagram - Steel...
  • Page 35: Warranty

    Consult an ENVIRO dealer. It is recommended than only an authorized ENVIRO dealer installs an ENVIRO unit. There will be no warranty coverage on parts destroyed or burnt out as a result of a consumer installation error or defect.
  • Page 36: Installation Data Sheet

    Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MODEL:___________________________________ SERIAL NUMBER:___________________________ DATE OF PURCHASE: _____________ DATE OF INSTALLATION:___________ MAGNEHELIC AT INSTALL:___________________ INSTALLER’S SIGNATURE: _________________________________________ NAME OF DEALER:...
