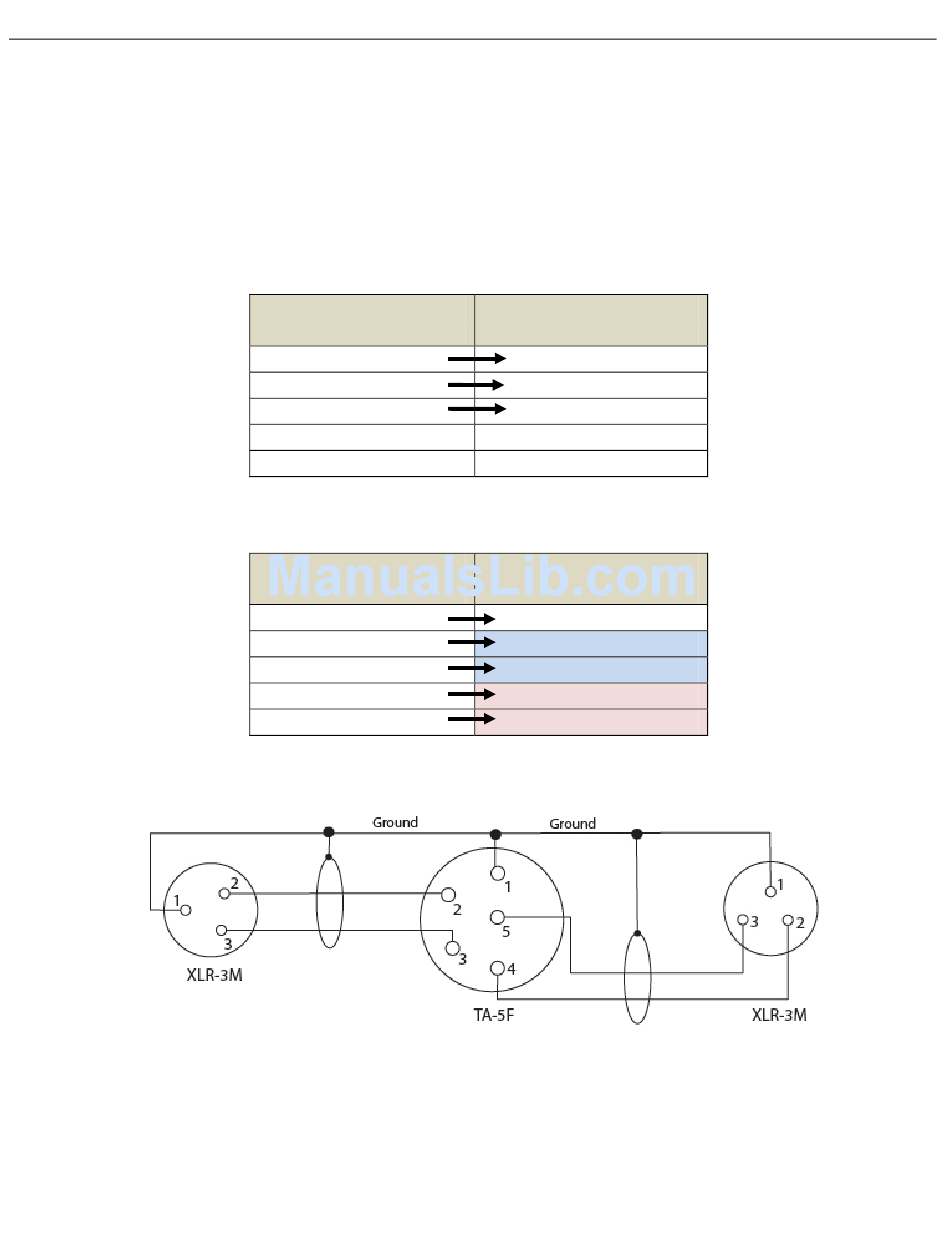

Wiring Diagrams

Audio Output Connectors
There are two TA-5M connectors on the back panel. How they are used varies based on the output
configuration in the extended menu.

Single Analog Channel out of one TA5

Two Analog Channels out of one TA5

TA5 out on
QRX
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
TA5 Out on
QRX
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
26
XLR into Camera or
Mixer
PIN 1
PIN 2
PIN 3
No Connection
No Connection
XLR into Camera or
Mixer
PIN 1 XLRs
on both
PIN 2 - Left
PIN 3 - Left
PIN 2 - Right
PIN 3 - Right
