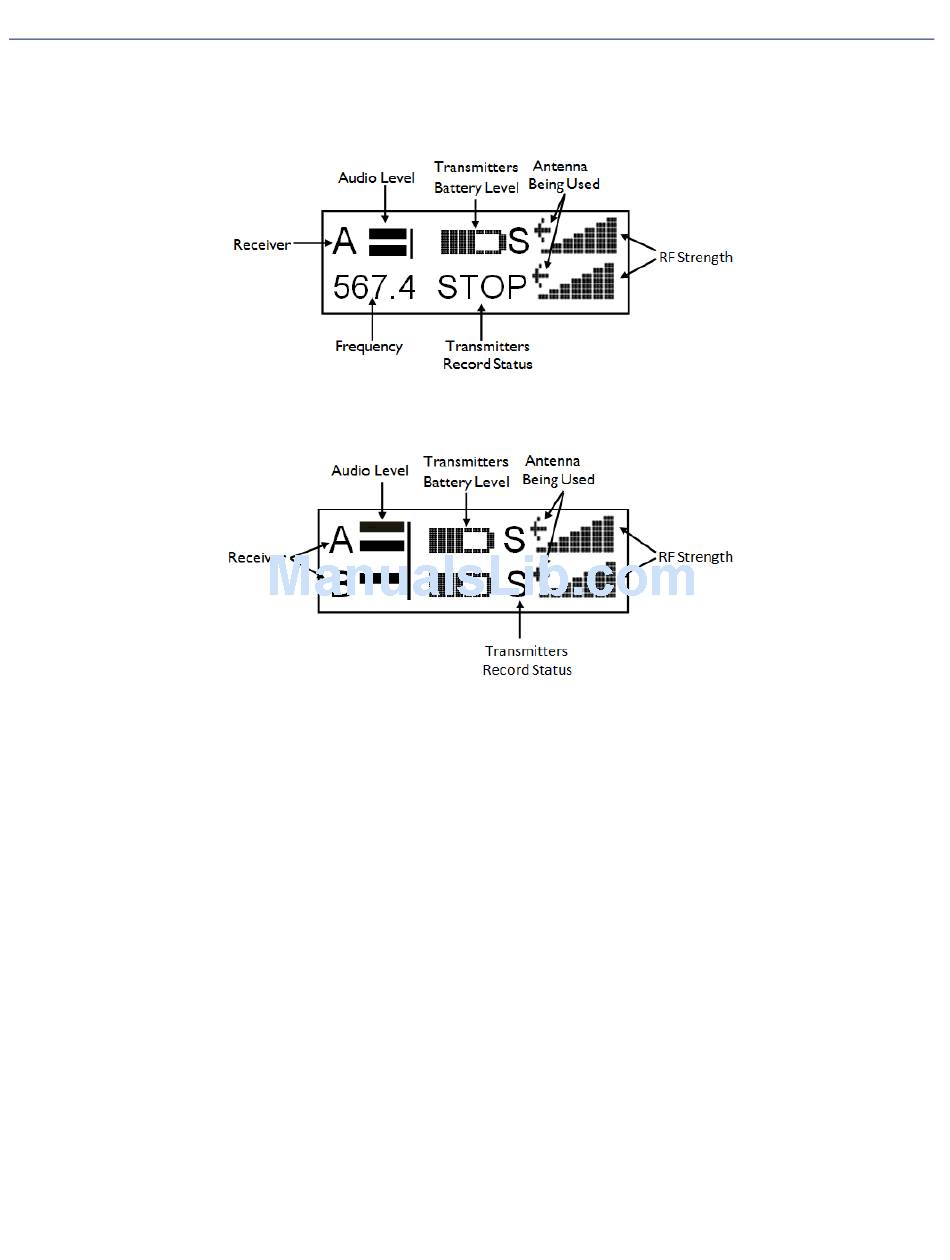

Home Screen Explained

Receiver
Indicates the receiver
Audio level
The audio level indicator (one for each channel), extends from the left to the right. The vertical
bar to the right is the -20dBFS mark. A single meter indicates a mono signal is being received.
Two meters indicate that a stereo signal is being received.
Transmitter's battery level
The diagram of the battery displays a rough percentage of battery capacity provide you have set
the correct battery chemistry in the TRX transmitter menu. The battery symbol will start to blink
just before transmitter shutdown.
Transmitter's Record status
• S (STOP) Stopped or does not have a card installed
• R (REC) Recording
• P (PLAY) Playing back
• – (NO SIGNAL) Occurs if the associated transmitter is turned "OFF"
A – Left receiver
B – Right receiver
Single Mode
Dual Mode
7
Home Screen
