Knowing Your QRX235 Receiver

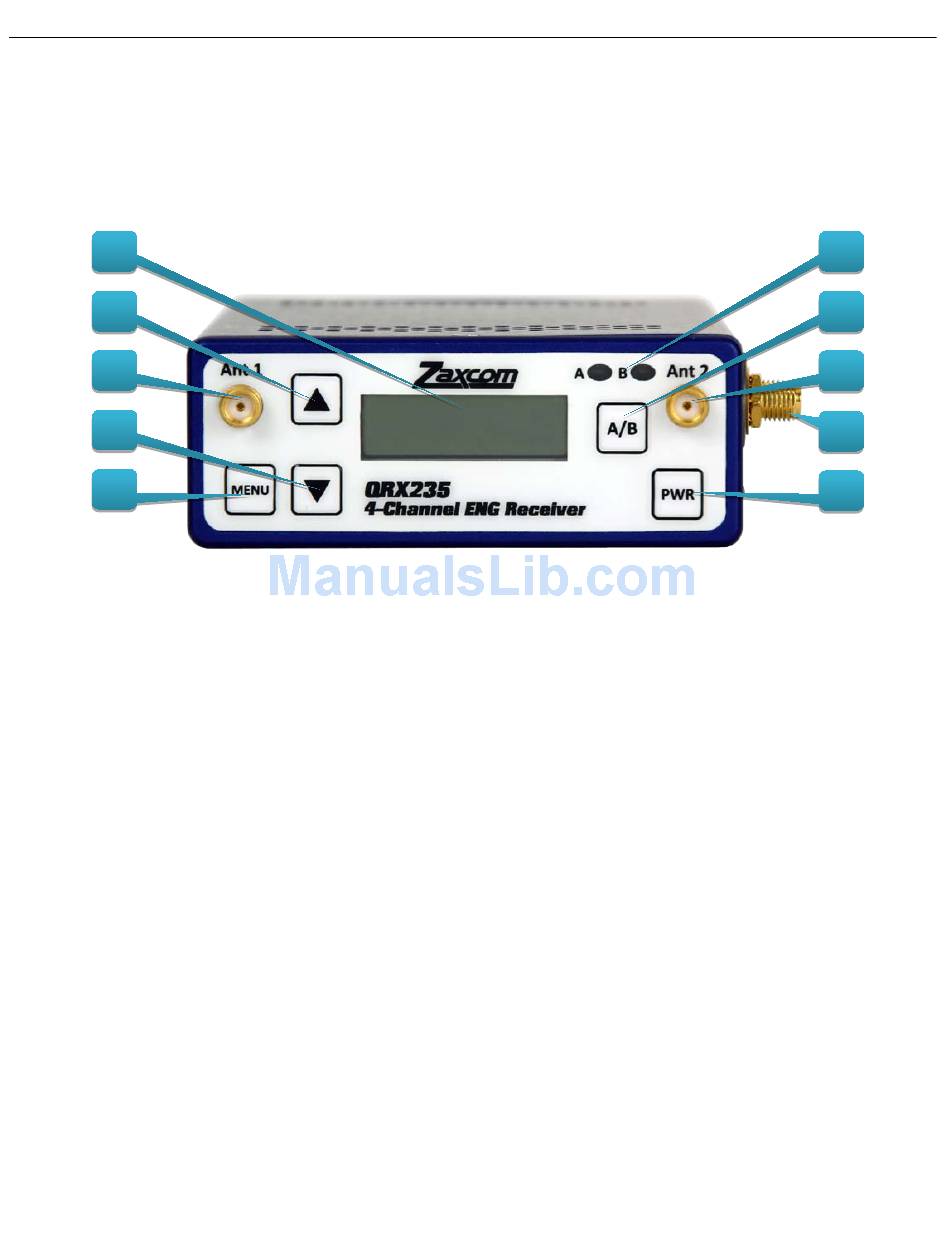

Front
1
2
3
4
5
1. LCD Display
2. INC Key - Used to increase the parameters of a menu item.
3. UHF Antenna Connectors (2) - SMA connectors.
4. Dec Key - Used to decrease the parameters of a menu item.
5. Menu Key - Press to advance to the next menu item.
6. Receiver Status Indicators
7. A/B Key - Press to alternate between receivers in dual mode.
8. ZaxNet 2.4GHz Antenna Connector (1) - SMA connector (only with QIFB option).
9. Power Key - Press and hold for 2 seconds to power up the QRX.
Solid Red - That receiver is not getting a valid signal.
•
Solid Green - That receiver is receiving a valid signal.
•
Press and hold for 5 seconds to power down the QRX.
4
Rear
6
7
3
8
9
