Manually Add Wi-Fi Network - CipherLab RS30 Reference Manual

RS30 Mobile Computer

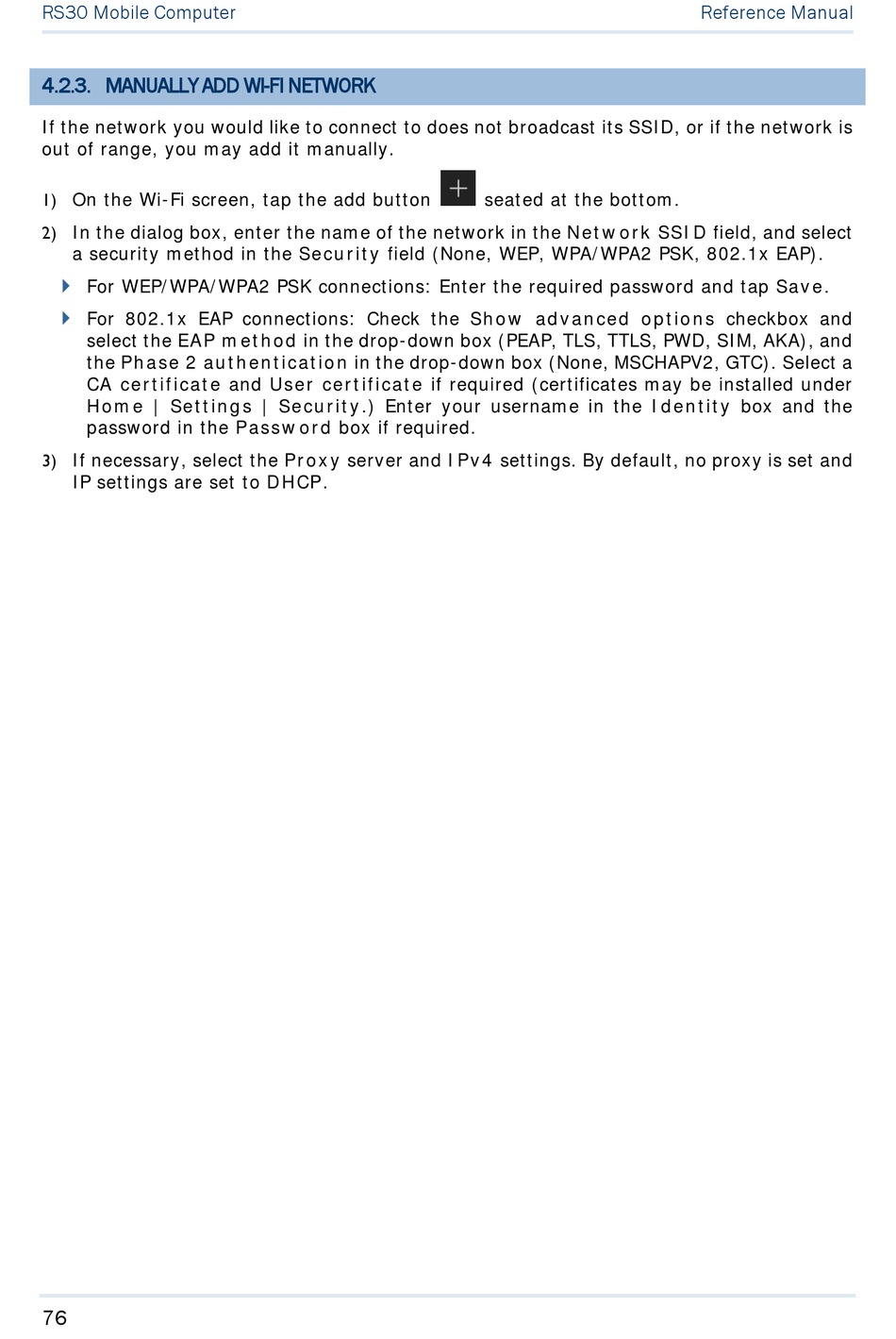

4.2.3. MANUALLY ADD WI-FI NETWORK

If the network you would like to connect to does not broadcast its SSID, or if the network is
out of range, you may add it manually.
1) On the Wi-Fi screen, tap the add button
2) In the dialog box, enter the name of the network in the Network SSID field, and select
a security method in the Security field (None, WEP, WPA/WPA2 PSK, 802.1x EAP).
For WEP/WPA/WPA2 PSK connections: Enter the required password and tap Save.

For 802.1x EAP connections: Check the Show advanced options checkbox and

select the EAP method in the drop-down box (PEAP, TLS, TTLS, PWD, SIM, AKA), and
the Phase 2 authentication in the drop-down box (None, MSCHAPV2, GTC). Select a
CA certificate and User certificate if required (certificates may be installed under
Home | Settings | Security.) Enter your username in the Identity box and the
password in the Password box if required.
3) If necessary, select the Proxy server and IPv4 settings. By default, no proxy is set and
IP settings are set to DHCP.
76
seated at the bottom.
Reference Manual
