2 Installation
This compact unit is fixed by 2 screws to the wall.
2.1 Opening, wiring, wall mounting and settings
2.1.1 Name card panel

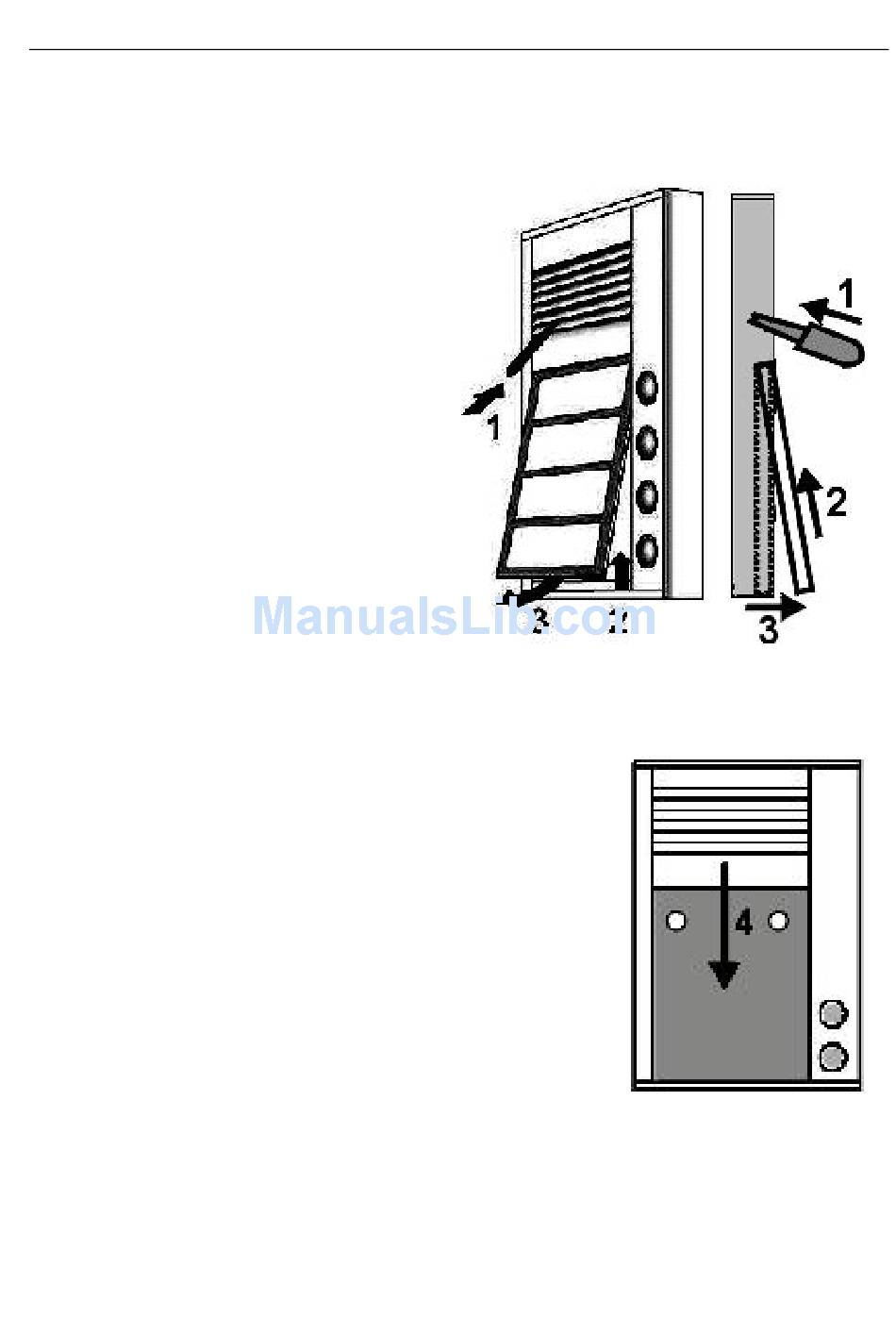

1. Every unit is supplied with a
special key which is used to
release the name cards on the
front panel. Push the key into
the hole in the speaker grille
(see figure - 1).
2. Push the name card panel
down and then push it towards
to grille (see figure-2).
3. The panel will be released.
Pull it towards you to remove
(see figure – 3).
2.1.2 Uncover control elements
4. Push the aluminium speaker grille down (see
figure – 4).
BRAVE SlimDP –
User and service manual
9
