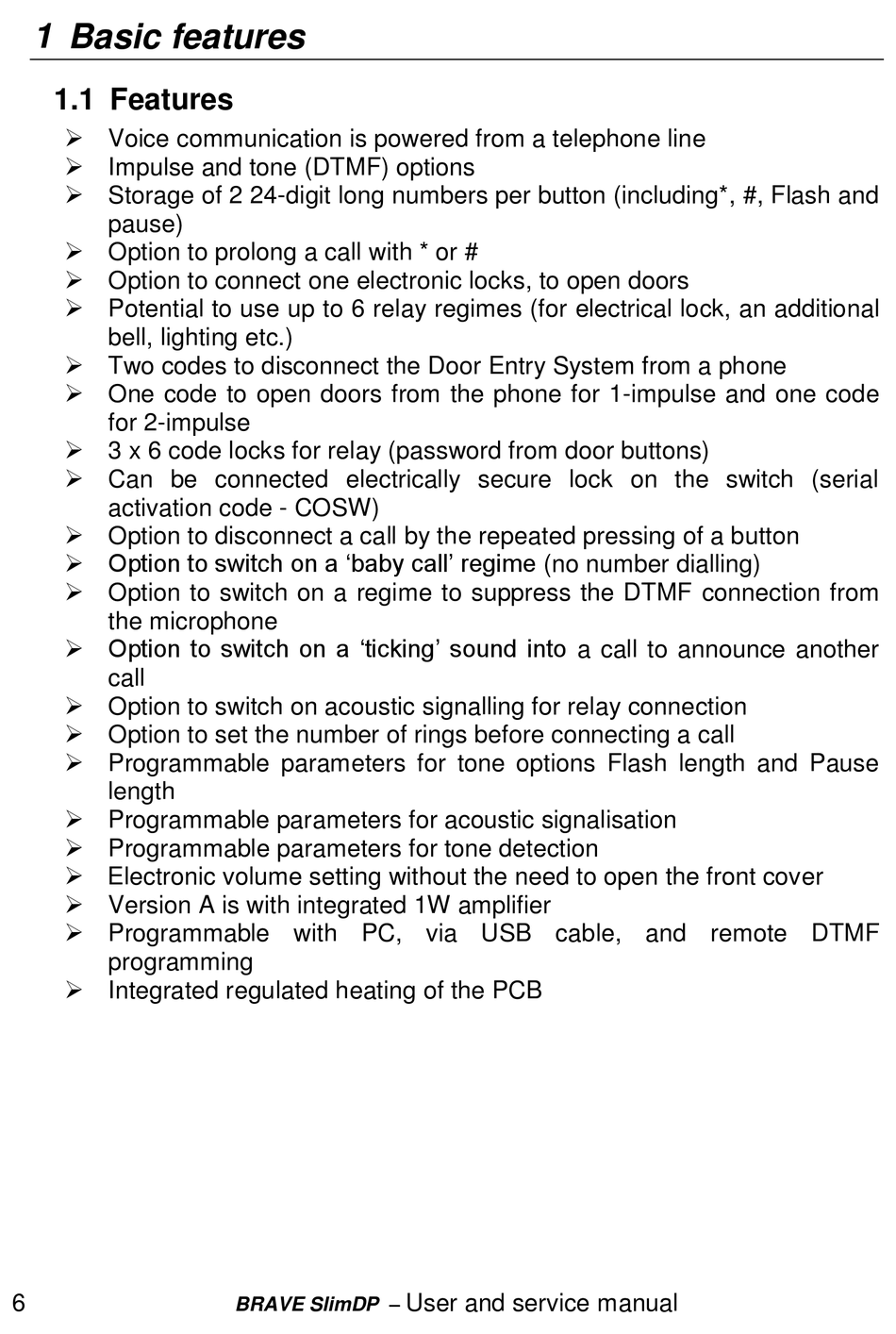

1 Basic features

1.1 Features

 Voice communication is powered from a telephone line
 Impulse and tone (DTMF) options
 Storage of 2 24-digit long numbers per button (including*, #, Flash and
pause)
 Option to prolong a call with * or #
 Option to connect one electronic locks, to open doors
 Potential to use up to 6 relay regimes (for electrical lock, an additional
bell, lighting etc.)
 Two codes to disconnect the Door Entry System from a phone
 One code to open doors from the phone for 1-impulse and one code
for 2-impulse
 3 x 6 code locks for relay (password from door buttons)
 Can be connected electrically secure lock on the switch (serial
activation code - COSW)
 Option to disconnect a call by the repeated pressing of a button
 Option to switch on a 'baby call' regime (no number dialling)
 Option to switch on a regime to suppress the DTMF connection from
the microphone
 Option to switch on a 'ticking' sound into a call to announce another
call
 Option to switch on acoustic signalling for relay connection
 Option to set the number of rings before connecting a call
 Programmable parameters for tone options Flash length and Pause
length
 Programmable parameters for acoustic signalisation
 Programmable parameters for tone detection
 Electronic volume setting without the need to open the front cover
 Version A is with integrated 1W amplifier
 Programmable with PC, via USB cable, and remote DTMF
programming
 Integrated regulated heating of the PCB
