NOTE:
To guarantee the functionality of the SFP ports, always use H3C SFP transceiver modules on the H3C
•
S3100V2-52TP Switch.
• The SFP transceiver modules available for this switch are subject to change over time. For the most
up-to-date list of SFP transceiver modules, consult your H3C sales representative or technical support
engineer.
For the SFP transceiver module specifications, see the
•
Modules Manual
• For how to install or remove an SFP module, see the
Modules Installation Guide

Combo interface

A combo interface has one fiber SFP port and one 1000Base-T copper Ethernet port. These two ports
share one port number and cannot work simultaneously. When you activate one port, the other port
automatically shuts down.
On the front panel of an S3100V2-52TP switch, the copper combo ports are marked in the port number
+ T format, and the fiber SFP combo ports are marked in the port number + S format, as shown in
29.

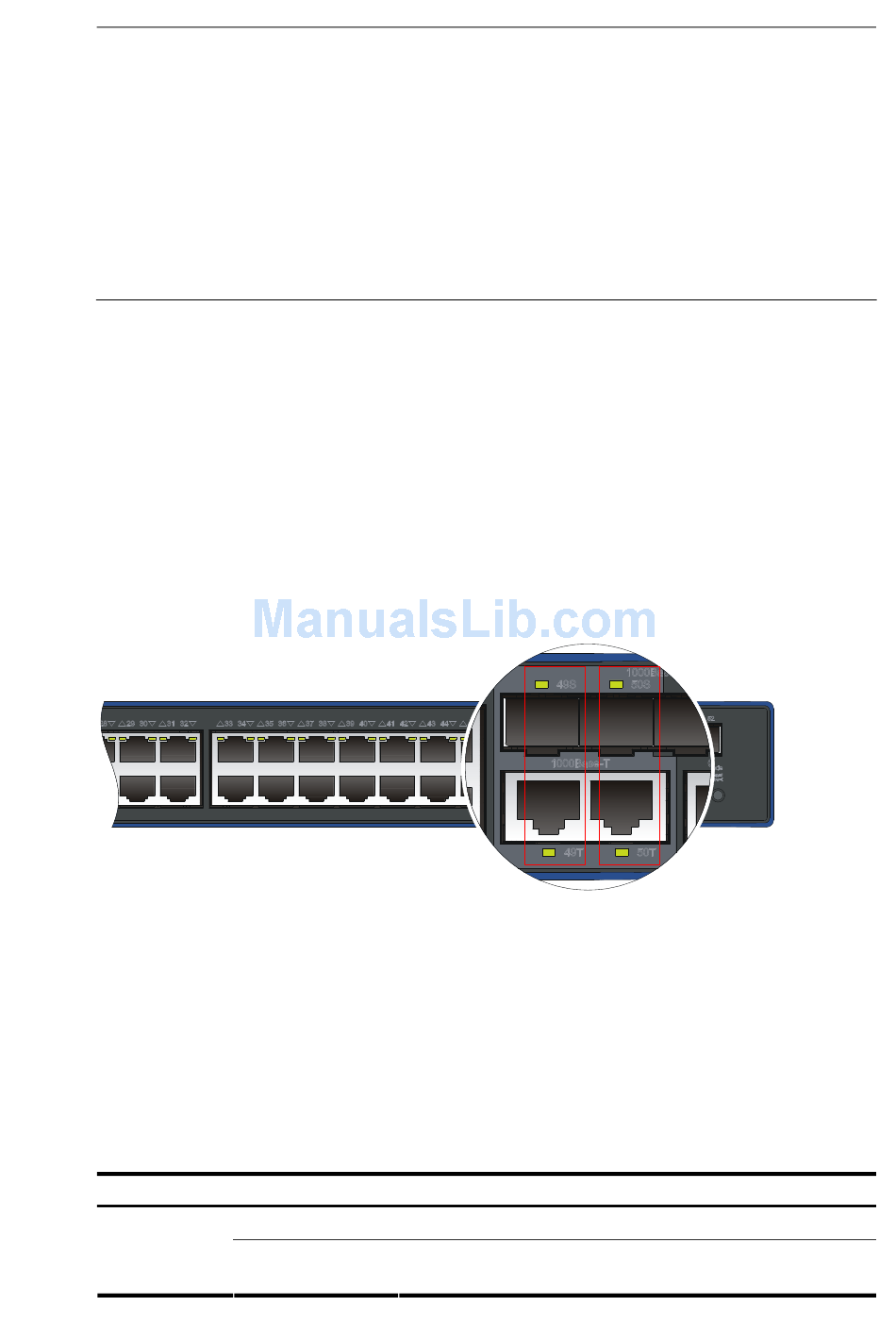

Figure 29 Identify the combo ports on the S3100V2-52TP front panel

LEDs

System status LED

The system status LED shows the operating status of the switch.
Table 11 System status LED description
LED
PWR
.
.
Status Description
Steady green The switch is operating properly.
Flashing green (1
The switch is performing power-on self test (POST).
Hz)
