Mounting The Switch On A Workbench - H3C S3100V2-52TP Installation Manual

Check that the mounting brackets have been securely fixed on the two sides of the switch.
Step2
Install the user-supplied cage nuts in the mounting holes in the rack posts.
Step3
One person holds the switch chassis and aligns the mounting brackets with the mounting holes in the
Step4
rack posts, and the other person fixes the mounting brackets with anti-rust screws (user-supplied) to the
rack.
Check that the switch chassis is horizontal and tighten the screws.
Step5

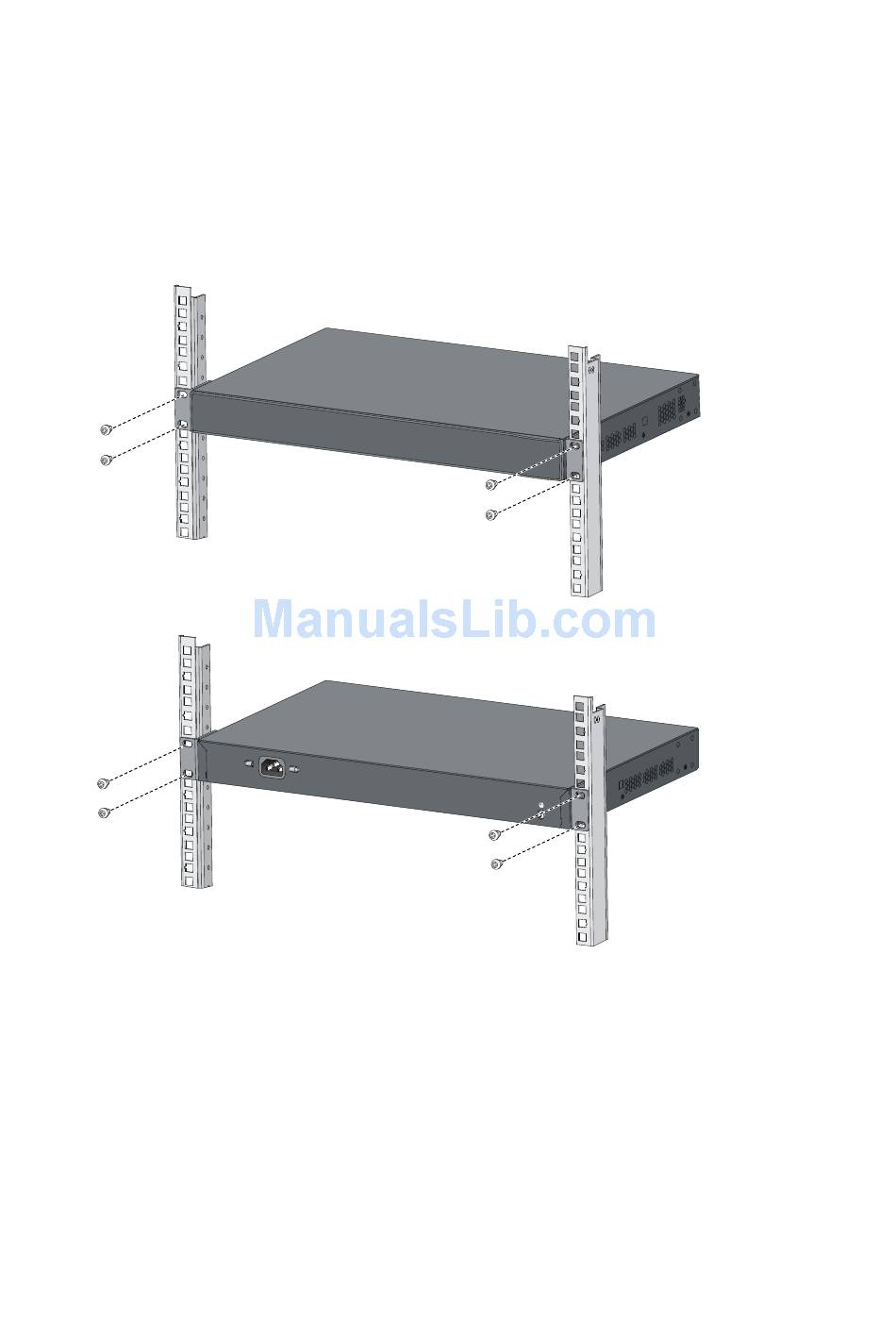

Figure 7 Install the switch in the rack

Mounting the switch on a workbench

If a standard 19-inch rack is not available, you can place an S3100V2-52TP switch on a clean, flat
workbench, as follows:
Check that the workbench is sturdy and well grounded.
Step1
Place the switch with bottom up, and clean the round holes in the chassis bottom with dry cloth.
Step2
Attach the rubber feet to the four round holes in the chassis bottom.
Step3
Place the switch with upside up on the workbench.
Step4
