Connecting the power cord

CAUTION:
Before powering on the switch, you must connect the power cord and make sure the switch is well
grounded.
Follow these steps to connect an AC power cord:
Wear an ESD-preventive wrist strap, and make sure the wrist strap makes good skin contact and is well
Step1
grounded.
Install the bail latch. Fix the bail latch into the holes located at the two sides of the AC power receptacle.
Step2
Then pull the bail latch upwards, as shown in
Insert the plug of the AC power cord into the AC power receptacle (see callout 1 in
Step3
Pull the bail latch down to secure the plug to the AC receptacle (see callout 2 in
Step4
Connect the other end of the AC power cord to the AC power source.
Step5
Check the power LED (PWR) on the front panel. If the LED is on, the power cord is properly connected.
Step6

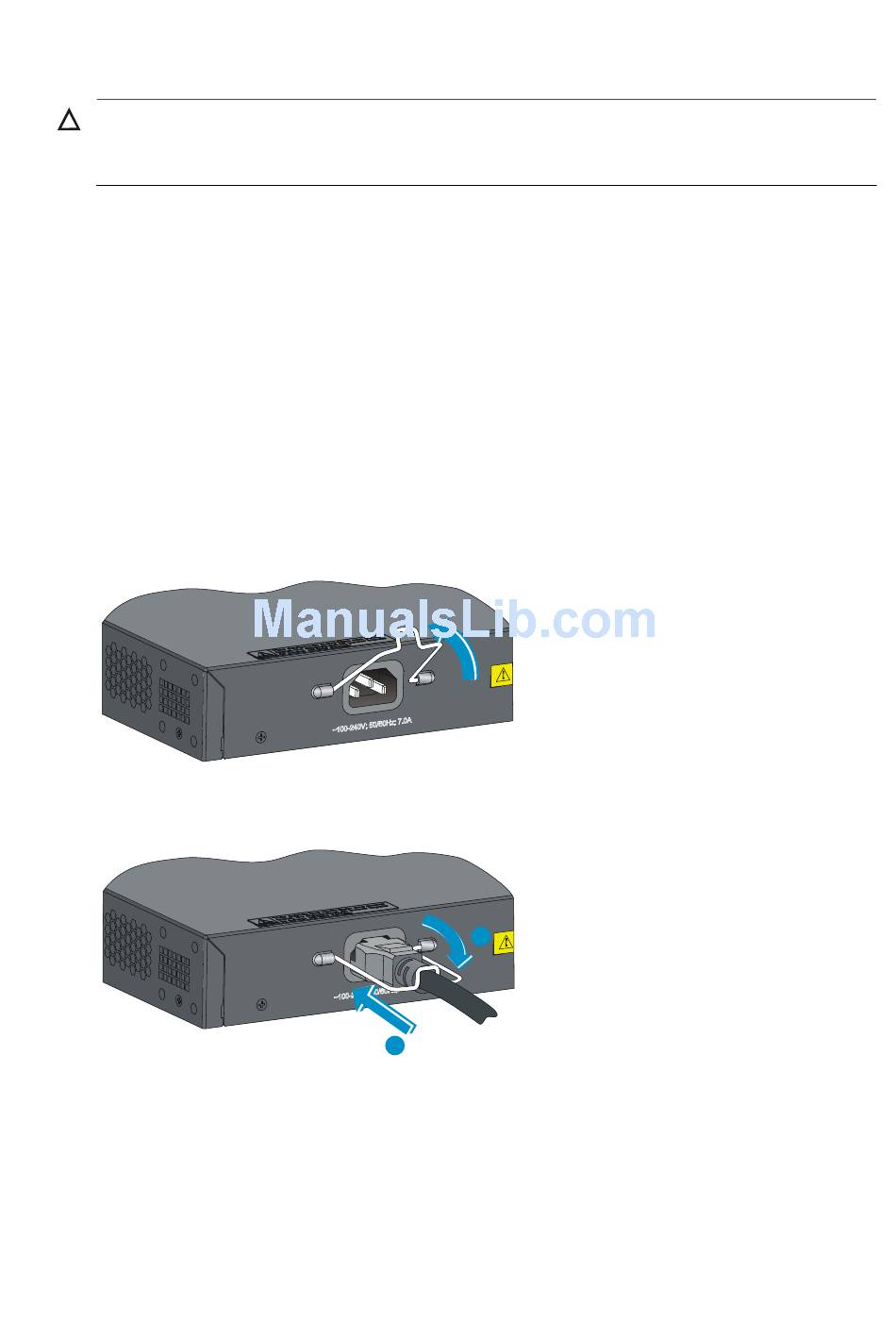

Figure 14 Connect the AC power cord (I)
Figure 15 Connect the AC power cord (II)

Verifying the installation

Before powering on the switch, check that:
• There is enough space for heat dissipation around the switch, and the rack or workbench is stable.
The grounding cable is securely connected.
•
The selected power module matches that required by the switch.
•
Figure 14.
2
1
12
Figure 15).
Figure 15).
