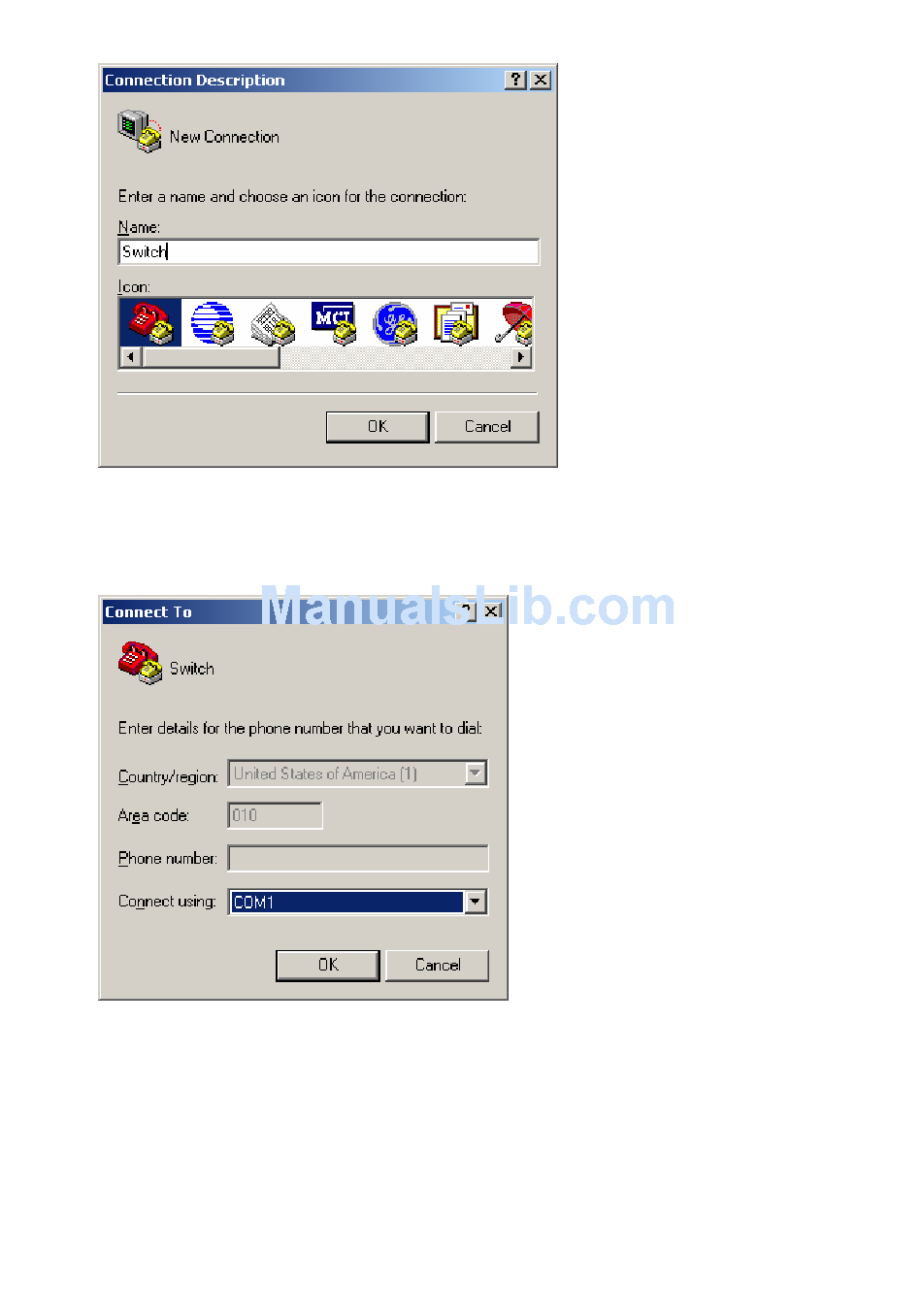

Figure 18 Connection description of the HyperTerminal
Type the name of the new connection in the Name text box and click OK. The following dialog box
Step2
appears. Select the serial port to be used from the Connect using drop-down list.
Figure 19 Set the serial port used by the HyperTerminal connection
Click OK after selecting a serial port. The following dialog box appears. Set Bits per second to 9600,
Step3
Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None.
16
