Mounting bracket kit

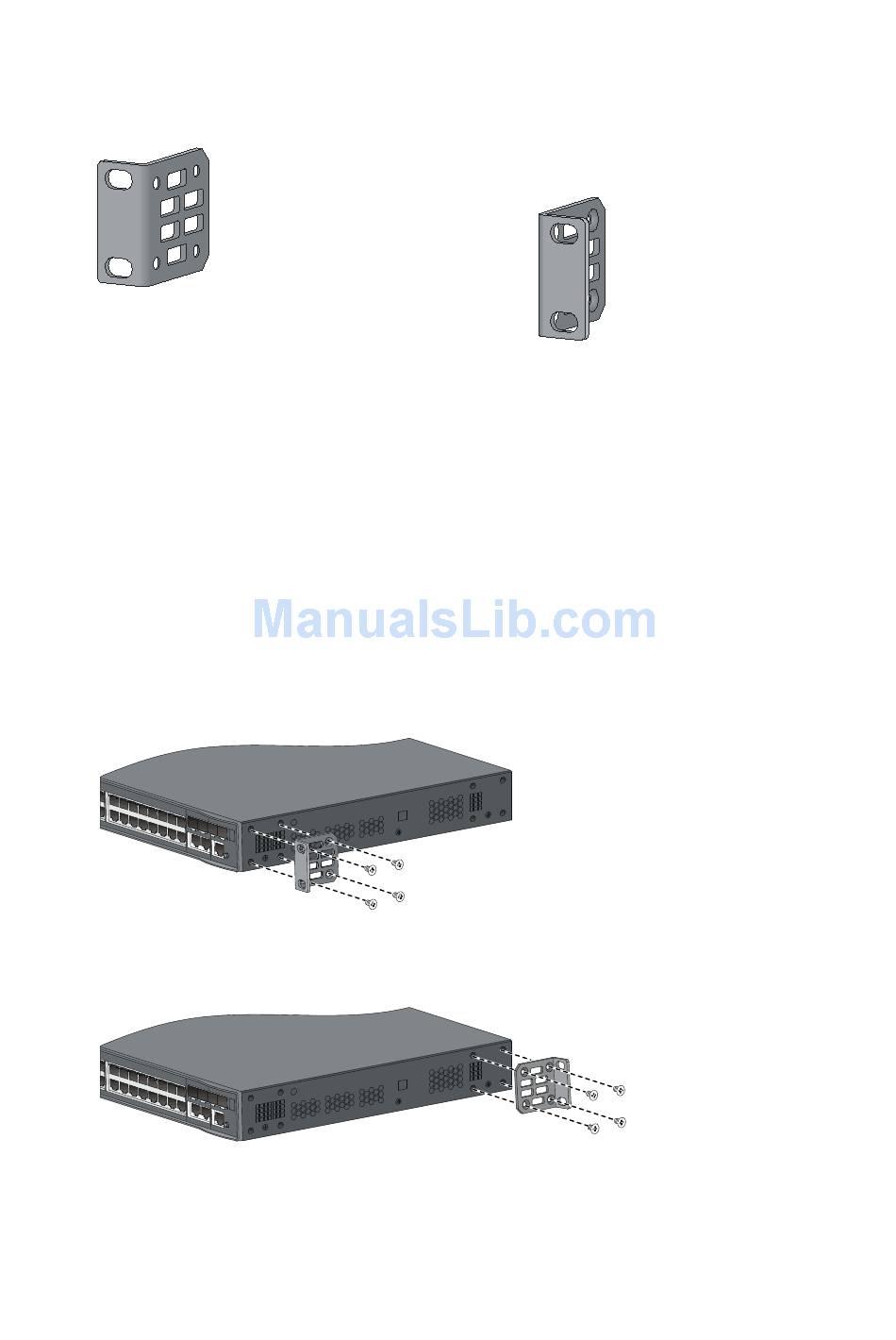

Figure 4 Mounting bracket kit

The S3100V2-52TP switch provides one front mounting position and one rear mounting position. You can

install the mounting brackets as needed.

Wear an ESD-preventive wrist strap, and make sure that the wrist strap makes good skin contact and is

Step1

well grounded.

Align one mounting bracket with the screw holes in the mounting position on one side.

Step2

Use M4 screws (shipped with the switch) to fix the mounting bracket to the switch chassis (see

Step3

Figure

6).

Figure 5 Attach the mounting brackets to the switch (front mounting)

Figure 6 Attach the mounting brackets to the switch (rear mounting)

Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.

Step1

Figure 5
