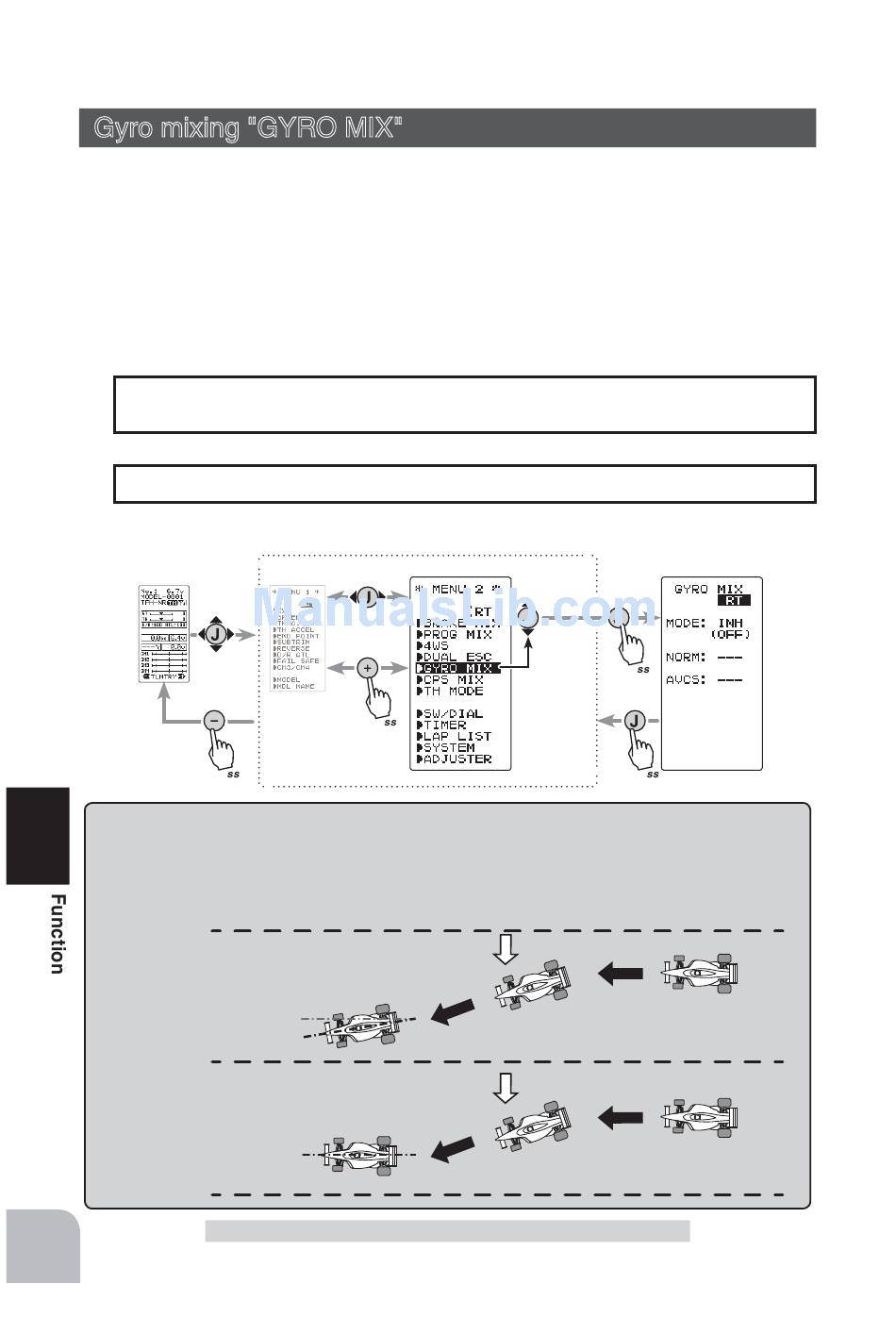

Gyro Mixing "Gyro Mix - FUTABA 4pls Instruction Manual

Gyro mixing "GYRO MIX"

This function is a remote gain function which adjusts the sensitivity of the Futaba car
rate gyro at the T4PLS side, and is mixing that uses the 3rd CH to adjust the gyro sensi-
tivity.
When using the T4PLS by switching the AVCS and normal modes use SW1 with the
function select switch function (p.65).
For a description of the car rate gyro mounting method and handling, refer to the rate
gyro instruction manual.
Setting Special mixings
When the 3rd CH was set to ACT at Brake Mixing (p.68) or when 4WS Mixing (p.72)
is used, Gyro mixing cannot be used.
Dial / Trim Setting
The gain amount can be adjusted by using the function switch dial function (p.65).
Display "GYRO MIX" screen by the following method:
(HOME screen)
AVCS / NORMAL Modes
The gyro has 2 operating modes: NORMAL mode and AVCS mode. In the AVCS mode, the angle is con-
trolled simultaneously with NORMAL mode rate control (swing speed). The AVCS mode increases straight
running stability more than that of the NORMAL mode. Because the feel of operation is different, choose your
favorite mode.
NORMAL
Countersteers against out-
side force, but cannot cor-
rect the skid direction.
AVCS
Corrects the skidding direc-
tion and forcefully main-
tains the heading.
76
(MENU 1 screen)
Pre
Pre
Gyro mixing "GYRO MIX"
(MENU 2 screen)
Select
"GYRO MIX"
Outside
force
Outside
force
(Steering system)
(GYRO MIX screen)
Pre
Pre
