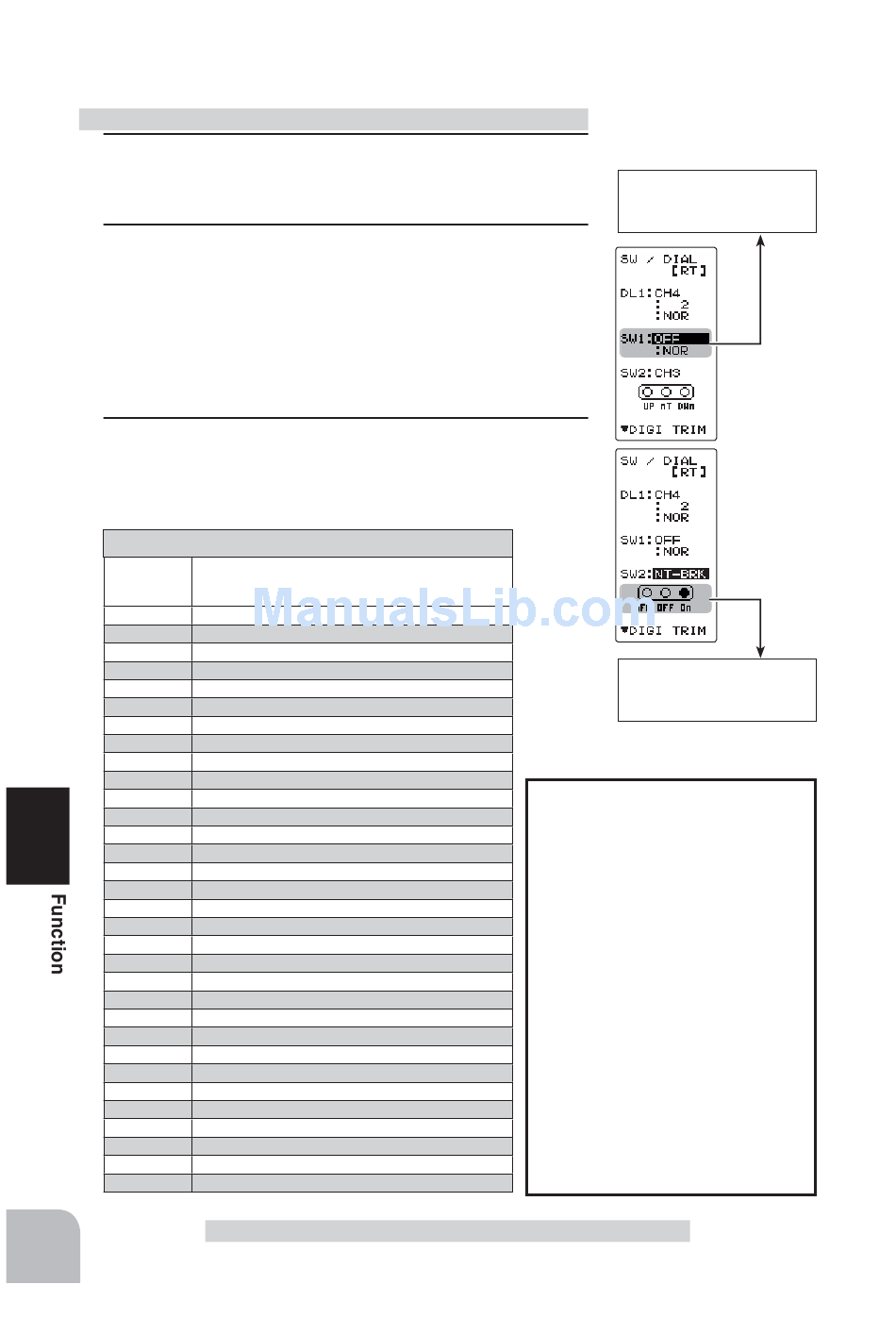

FUTABA 4pls Instruction Manual page 66

Function select switch setting
1
(Setting SW selection)
Select the SW you want to set by the (JOG) button up or
down operation.
2
(Function setting)
Select the function with the (+) or (-) button.
-Refer to the list for the abbreviations of the functions.
(Changing the SW1operation system)
Select DIR of <SW1> by the (JOG) button up or down opera-
tion. Select ALT or NOR with the (+) or (-) button.
3
When ending, return to the MENU2 screen by pressing the
(JOG) button.
Set table functions (DL1, DT1/DT2/DT3)
Abbreviation
used on setup
screen
D/R
ATL
EXP-ST
EXP-FW
EXP-BK
SPD-TN
SPD-RN
ABS.PS
ABS.DL
CYCLE
ACC-FW
ACC-BK
TH-SPD
ST-TRM
TH-TRM
CH3
CH4
SUBTR1
SUBTR2
SUBTR3
SUBTR4
IDLE
ESC-RT
TH-OFF
PMX-A
PMX-B
BK3-RT
BK4-RT
4WS-RT
ESC-MD
GYRO
OFF
66
Function name, etc
Dual rate function
ATL function
Steering EXP
Throttle EXP (Forward side)
Throttle EXP (Brake side)
Steering speed (Turn side)
Steering speed (Return side)
A.B.S. function (Return amount)
A.B.S. function (Delay)
A.B.S. function (cycle speed)
Throttle acceleration (Forward side)
Throttle acceleration (Brake side)
Throttle speed
Steering trim
Throttle trim
Channel 3
Channel 4
Sub trim (CH1)
Sub trim (CH2)
Sub trim (CH3)
Sub trim (CH4)
Idle up function
Dual ESC mixing (4ch ESC rate)
Throttle off (engine cut)
Program mixing (RGHT/BRAK/DOWN sides)
Program mixing (LEFT/FWRD/UP sides)
Brake mixing (3ch brake rate)
Brake mixing (4th brake rate)
4WS mixing (3ch steering rate)
Dual ESC mixing (Drive mode select)
Gyro mixing (Gain rate)
Not used
Function Select Trim Dial "TRIM DIAL"
Adjust button
Adjust with the (+) and (-) but-
tons.
SW1 function selection
Direction of operation set-
ting
SW2 function selection
ON/OFF position is dis-
played.
Relationship between set value
and step amount
(Setting range: 1~10, 20, 30, 40, 50,
100, 2P)
-Steering trim/throttle trim
When set to the minimum "1", the total
trim operating width is 200 clicks. For
"100", the total operating width is 2 clicks
and for 2P, the total operating width is 1
click.
-Rate, etc. setting
This is the % value which is operated by
1 click relative to the set value of each
rate. Since the total operating width of
functions having a rate of -100~0~+100
is 200%, when set to "100", the total op-
erating width is 2 clicks. Since the total
operating width of functions with a 0~100
rate is 100%, "100" and 2P are operated
by 1 click.
-Channel 3/4
When set to the minimum "1", the to-
tal operating width of channel 3 is 200
clicks. For "100", the total operating with
is 2 clicks and 2P is operated by 1 click.
