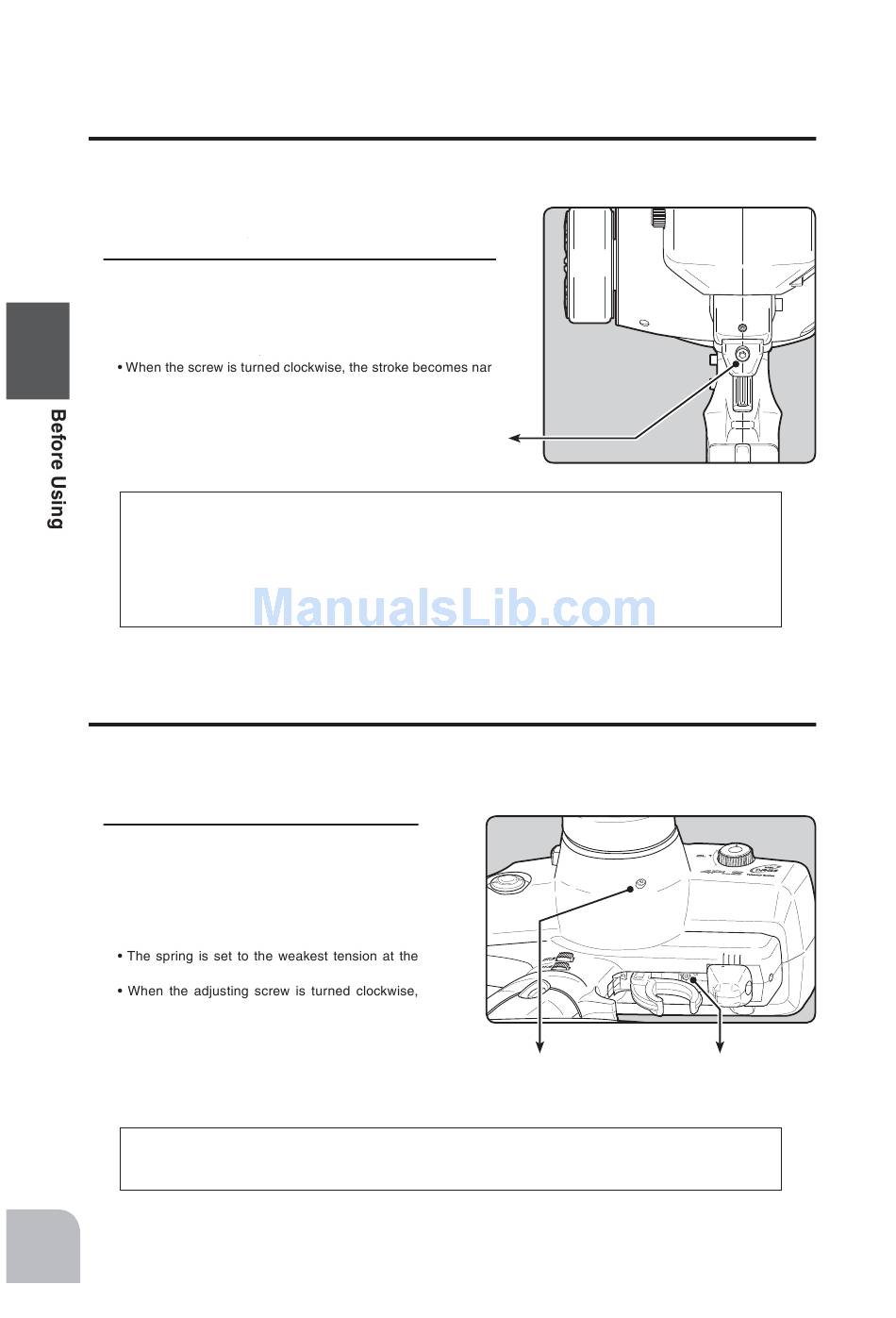

Mechanical ATL Adjustment

Make this adjustment when you want to decrease the stroke of the brake (back) side of
the throttle trigger for operation feel.
Adjustment
1
Using a 2.5mm hex wrench, adjust the trigger brake
(reverse) stroke. (The screw moves the throttle trig-
ger stopper.)
rower. Adjust the stroke while watching the screw.
Note:
Once you have changed the mechanical stroke on the brake side, be sure to adjust
the scale of the throttle channel accordingly by using the "Adjuster Function"
(page 105).
Due to this change, you also need to adjust in most cases the travel of the throttle
servo by using "End point Adjuster".
Wheel & Trigger Tension Adjustment
Make this adjustment when you want to change the wheel or trigger spring's tension.
Adjustment
1
Using a 1.5mm hex wrench, adjust the
wheel spring tension by turning the screw
inside the adjusting hole in the arrow di-
rection.
factory.
the spring tension increases.
Note:
The adjustment range is up to 7 to 8 turns from the fully tightened (strongest) po-
sition. If turned farther than this, the adjusting screw may fall out.
22
-
Mechanical ATL
adjusting screw
Wheel tension
adjusting screw
Trigger tension
adjusting screw
