FUTABA 4pls Instruction Manual page 32

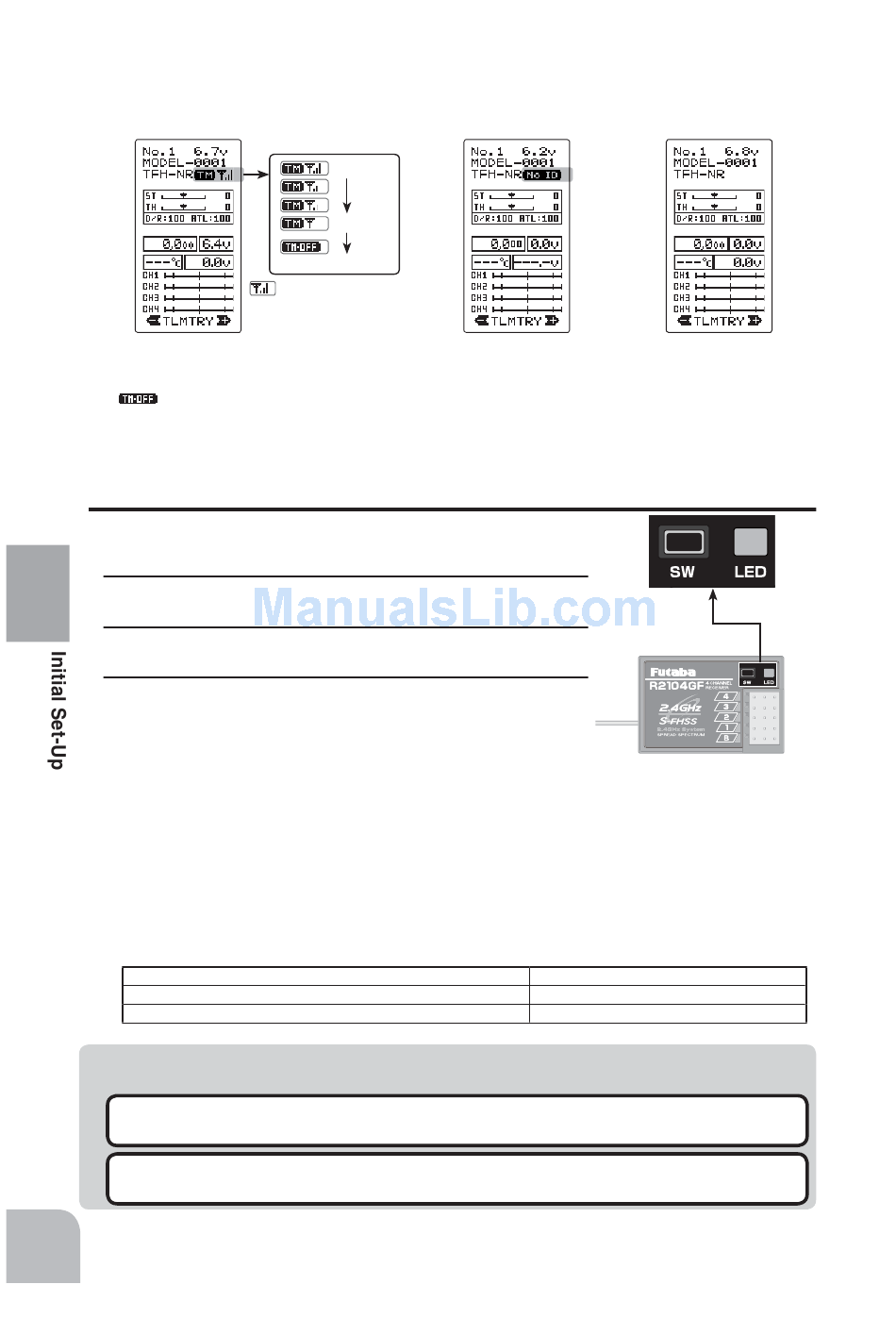

The telemetry ON/OFF and communication status can be checked at the HOME screen.
- Telemetry function :ON
- Receiver ID setting complete
- Data receiving sensitivity display
- shows that data cannot be re-
ceived because it is outside the data re-
ceiving range or because of the effects
of an obstruction or the receiver power is
OFF after receiver ID check.
Receivers other than T-FHSS
1
Bring the transmitter and the receiver close to each other, within
20 inches (half meter).
2
Turn on the transmitter.
3
Turn on the receiver.
4
Push the tactile switch of the receiver.
When the link is complete, the LED in the receiver changes
to solid green.
Precaution:
If there are many Futaba S-FHSS/FHSS systems turned on in close proximity to the R2104GF, your re-
ceiver might not link to your transmitter. In this case, even if the receiver's LED stays solid green, unfor-
tunately the receiver might have established a link to one of other transmitters. This is very dangerous
if you do not notice this situation. In order to avoid the problem, we strongly recommend you to double-
check whether your receiver is really under control by your transmitter by giving the stick input and then
checking the servo response.
*Please refer to the table below for LED status vs receiver's condition.
LED status vs receiver's condition:
No signal reception
Receiving signals
Receiving signals, but ID is unmatched.
*1: LED could be change to red during intermittently during data processing.
Warning
After the linking is done, please cycle receiver power and check if the receiver to be linked is re-
ally under the control of your transmitter.
Do not perform the linking procedure with motor's main wire connected or the engine operating
as it may result in serious injury.
32
The reception strength
High
Low
No signal reception
Receiver -> Transmitter:
The reception strength is shown.
- Telemetry function :ON
- Receiver ID before setting or ID mis-
match
- When the receiver ID is set, before
ID check in the receiver power OFF
stat
Telemetry function :OFF
Red : On
Green: On
*1
Green: Blink
