End Point Adjustment - FUTABA 4pls Instruction Manual

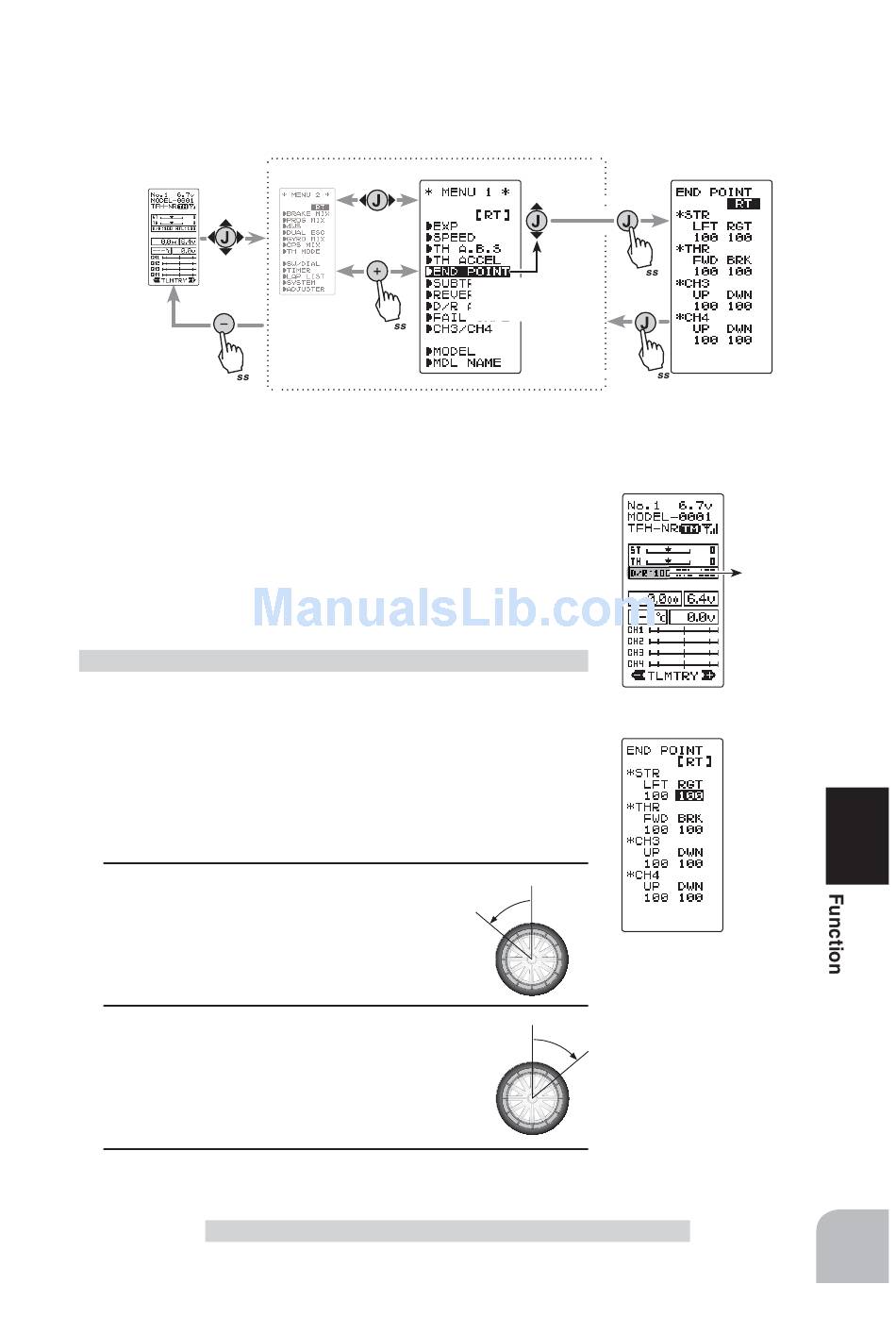

Display to "END POINT" screen by the following method:
(HOME screen)
Pre
Setting item selection
(Steering and Throttle direction)
- The direction (STR LFT and STR RGT) linked with the steering wheel is switched.
- The direction (THR FWD and THR BRK) linked with the throttle trigger is switched.
Setting item (channel and direction)
STR LFT
STR RGT
THR FWD
THR BRK
CH3/CH4 UP
CH3/CH4 DWN :3rd or 4th channel (down side)
Steering (END POINT) adjustment
(Preparation)
- Before setup of the steering end point adjustment (END
POINT), set the steering D/R rever (initial setup: DT3) to the
maximum steering angle position 100%.
- Select the setting item "RGT" by the (JOG) button up, down,
left, or right operation and make the following adjustments:
1
Steering (left side) adjustment
Turn the steering wheel fully to the left and
use the (+) or (-) buttons to adjust the steer-
ing angle.
2
Steering (right side) adjustment
Turn the steering wheel fully to the right and
use the (+) or (-) buttons to adjust the steer-
ing angle.
3
When ending, return to the MENU1 screen by pressing the
(JOG) button.
(MENU 2 screen) (MENU 1 screen)
Pre
:Steering (left side)
:Steering (right side)
:Throttle (foward side)
:Throttle (brake side)
:3rd or 4th channel (up side)
End Point Adjuster "END POINT"
(END POINT screen)
Pre
Select
"END POINT"
Pre
(HOME screen)
Adjust button
Adjust with the (+) and (-)
buttons.
- Return to the initial value
"100" by pressing the (+) and
(-) buttons simultaneously for
about 1 second.
Steering EPA
STR LFT :0~120
STR RGT :0~120
Initial value :100
100
