PVT SYSTEM SERVICE

PVT Sealing, Guard, and Ducting Components

Inner Cover
Inner Cover Seal

Disassembly

Some fasteners and procedures will vary. Refer to the
appropriate parts manual for proper fasteners and fastener
placement.
1. Remove seat.
2. Remove the LH storage box to gain access to PVT outer
cover. (See Chapter 5 for removal)
3. Remove PVT air outlet duct hose.
4. Remove outer PVT cover screws.
5. Mark the drive belt direction of rotation and remove drive
belt. See "Drive Belt Removal".

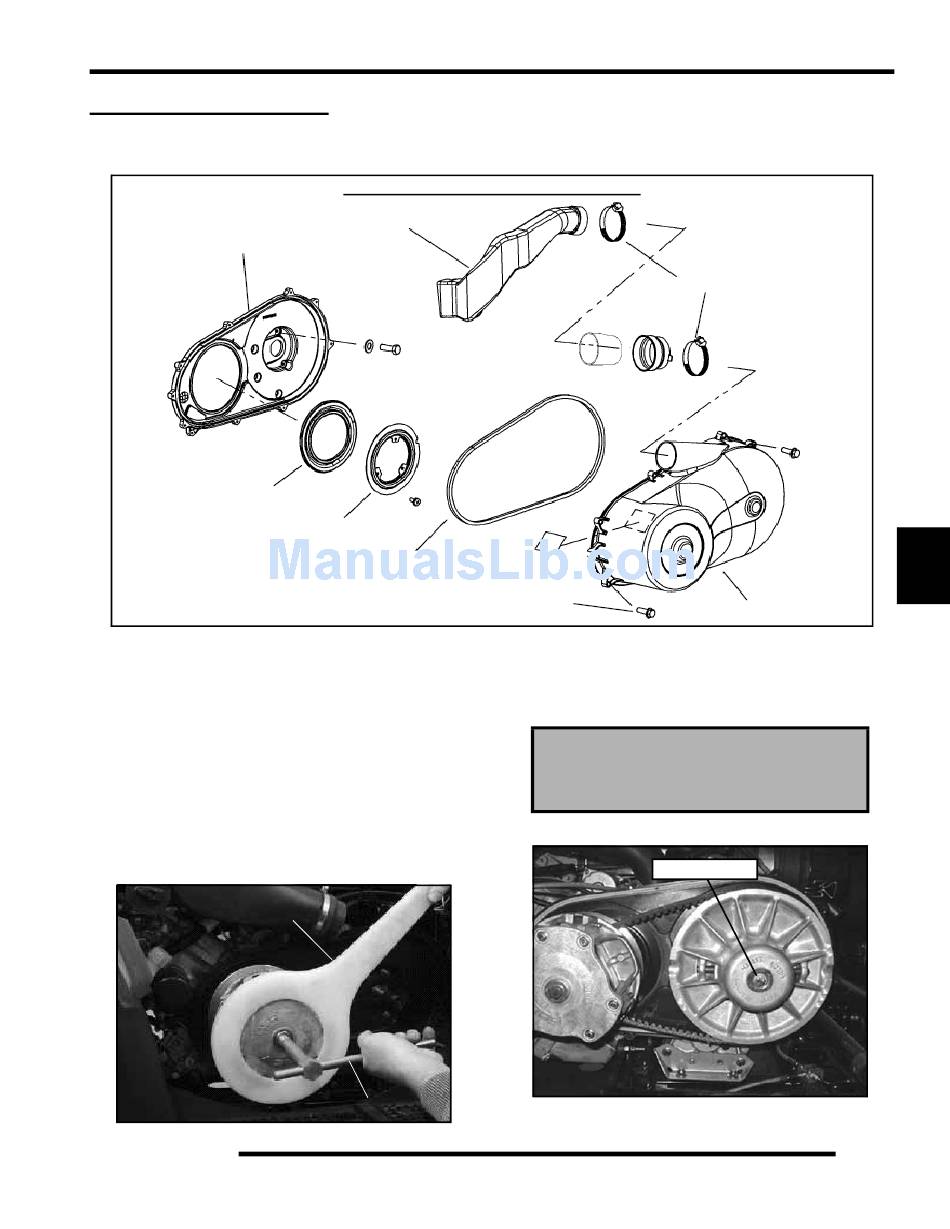

SEALING AND DUCTING COMPONENTS
Clutch Outlet Duct
Retainer
Outer Cover Seal
A
B
Cover Bolts
6. Install the Drive Clutch Holder (PN 9314177) (A).
7. Remove drive clutch retaining bolt and remove drive clutch
using the Drive Clutch Puller (PN 2870506) (B).
Drive Clutch Puller (PN 2870506)
Drive Clutch Holder (PN 9314177)
8. Remove the driven clutch retaining bolt and driven clutch.
Retaining Bolt
CLUTCHING
Clamps
PVT Outer Cover
