BODY / STEERING / SUSPENSION

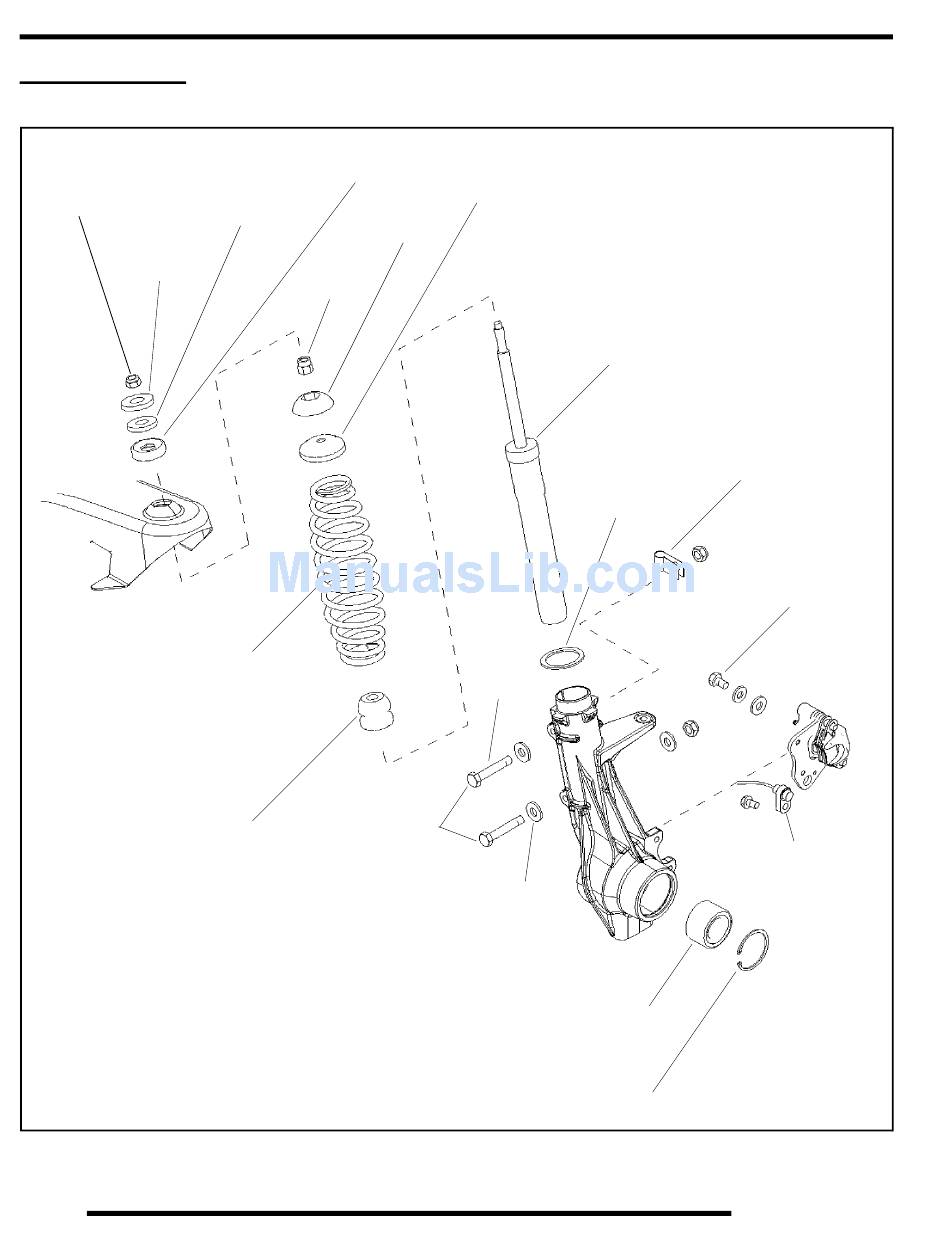

FRONT STRUT
Exploded View
Top
Nut
Pivot Ball
Spring
15 ft. lbs.
Retainer
(21 Nm)
Spacer Rubber
Bottom
Pivot Ball
Washer
Spacer
Front Strut
Clamp
Washer
18 ft. lbs.
(24 Nm)
Spring
Bolt
18 ft. lbs.
Strut Bumper
(24 Nm)
Wheel Speed Sensor
(Hall Effect Sensor)
Washer
Bearing
Retaining Ring
5.14
