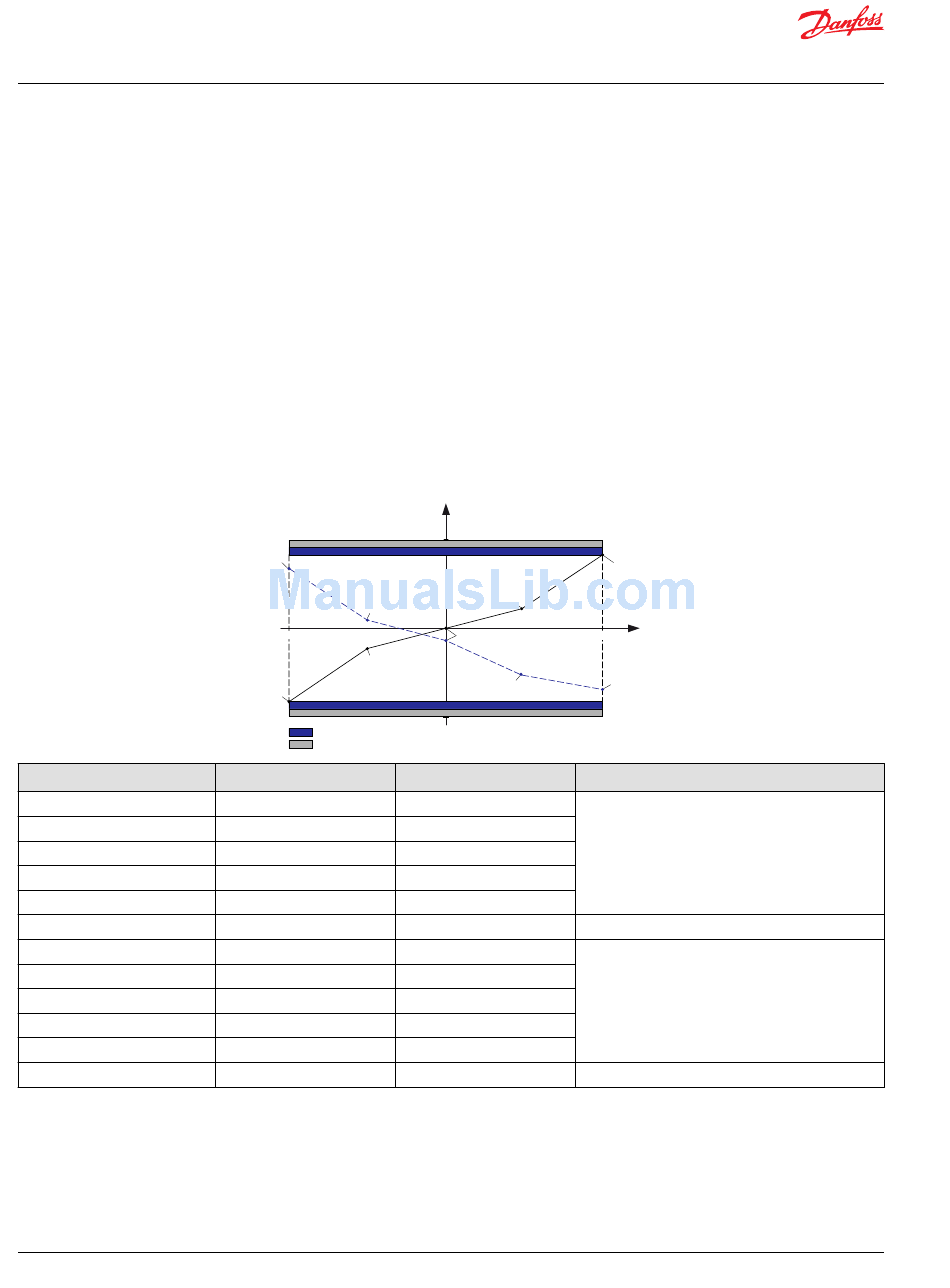

Non-Linear Transfer Characteristic (5-Point)

A non-linear transfer characteristic is suitable in situations where a sensor output is non-linear due to e.g.
sensor mounting geometry.

Scenario

Applying a linear transfer characteristic (3-point) to a non-linear steered wheel angle sensor in a closed-
loop application (auto-guidance or GPS) may result in incorrect steered wheel positions for set-points not
equal to neutral or the end-positions. Furthermore, the steered wheel angle may not be symmetrical
around neutral. The effect of non-linearity may become apparent in auto-steering applications where a
vehicle shall drive in precise circles.
In general, it is recommended to have "an as linear as possible" relation between the steered wheel angle
and the steered wheel angle sensor. This can be achieved by clever mechanical sensor mounting.
However, it may not always be possible to achieve linearity mechanically. To electronically compensate
for a non-linear sensor characteristic, two extra points are included in the calibration.
The two extra points represents the steered wheel angle, where the steered wheel is precisely in between
neutral and right or left end-stop respectively.
AD1(2)_1000_Left
AD1(2)_500_Left
-1000
AD1(2)_500_Left
AD1(2)_1000_Left
Margin
Short-circuit
Index
65080
65055
65086
65062
65083
65087
65089
65069
65095
65076
65092
65096
•
When building a transfer characteristic, the characteristic shall be monotonically increasing or
decreasing. An attempt to build illegal characteristics is not possible.
•
AD values for Neutral shall be between the AD values for left and right.

Steering Actuator Position Signal

The steering actuator position signal can be mapped to either AD1 or AD2. Scaling parameters Max left
and Max right are set respectively equal to the digital converted voltage at the left and right end-lock
Sampled AD value
AD1(2)_500_Right
AD1(2)_Neutral
AD1(2)_500_Right
0
Default
100
300
500
700
900
0
100
300
500
700
900
0
AD1(2)_1000_Right
1000
Scaled value
AD1(2)_1000_Right
Value range
[30;957]
0 (Non-linear), 255 (Linear)
[30;957]
0 (Non-linear), 255 (Linear)
