Removal Of Horizontal Blade - Daikin ARXG35E3V1B Service Manual

Indoor Unit
1.5

Removal of Horizontal Blade

Procedure

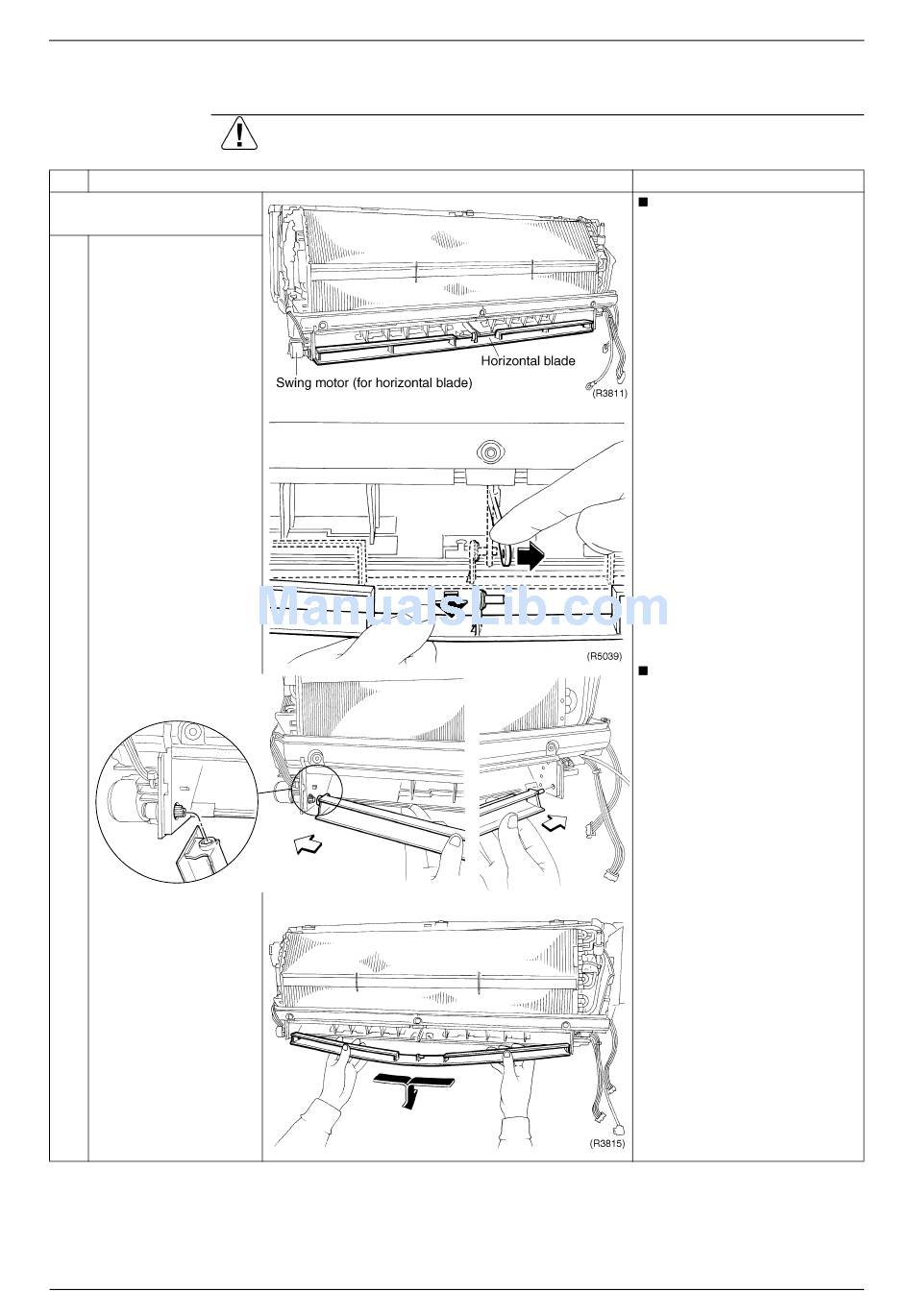

Step
1. Remove the horizontal
blade.
Release the center
1
pivot.
Bend the horizontal
2
blade slightly and
remove it.
136
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
(R3816) (R3813) (R3814)
SiBE04-809
Points
The horizontal blade is
single.
Installation procedure
1. Since key pattern hook is
provided, rotate the blade
and fit it to the left pivot first.
2. Fit the blade to the right
pivot.
3. Fit the blade to the center
pivot.
Removal Procedure
