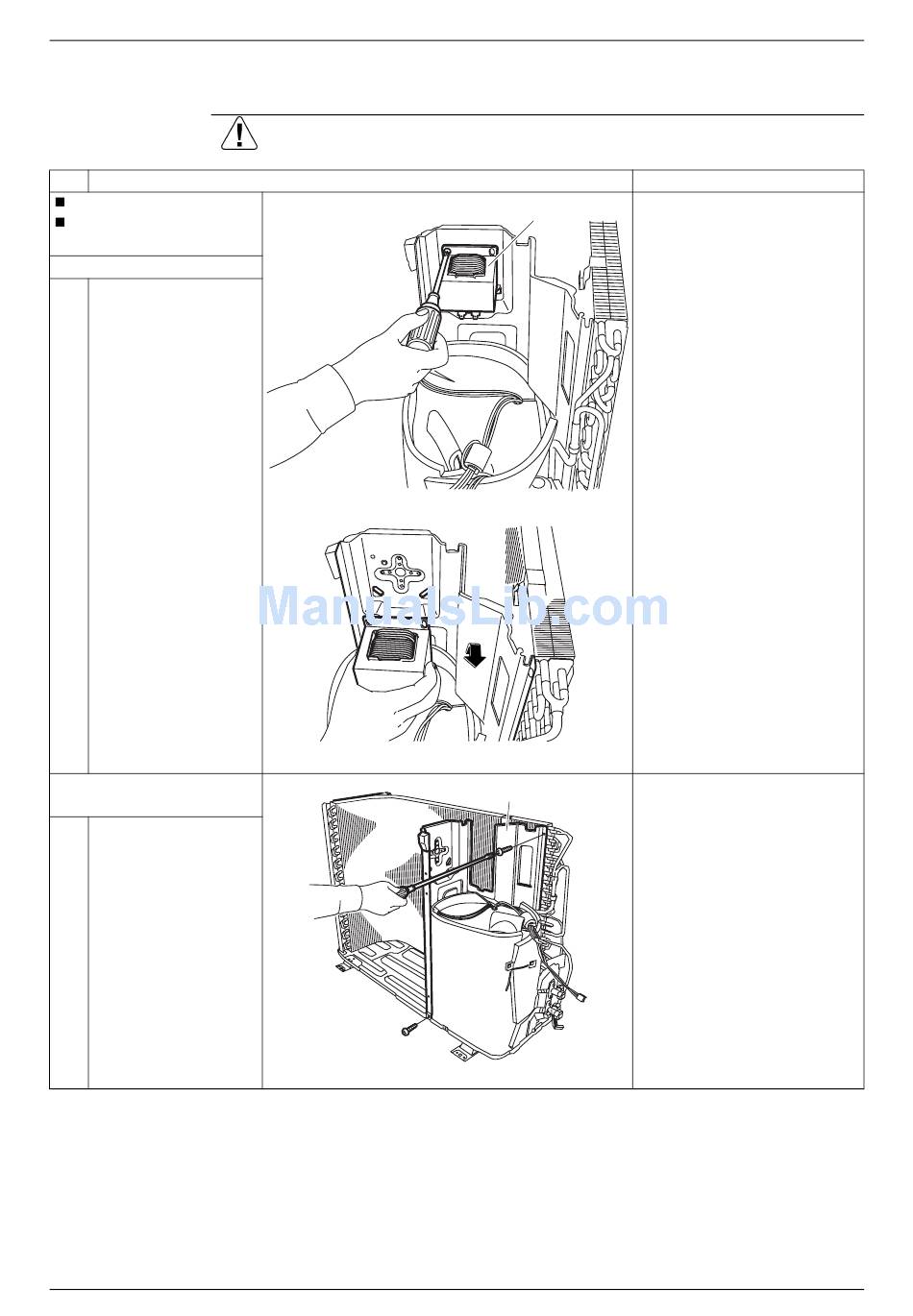

Removal Of Reactor And Partition Plate - Daikin ARXG35E3V1B Service Manual

SiBE04-809
2.3 Removal of
Procedure
Step
Remove the outer panels.
Remove the electrical
box.
1. Remove the reactor.
Loosen the screw.
1
Lift and remove the
reactor.
2. Remove the partition
plate.
Loosen the 2 screws.
1
Removal Procedure
Reactor and
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Partition Plate
Reactor
(R7224)
(R7225)
Partition plate
(R7226)
Outdoor Unit
Points
177
