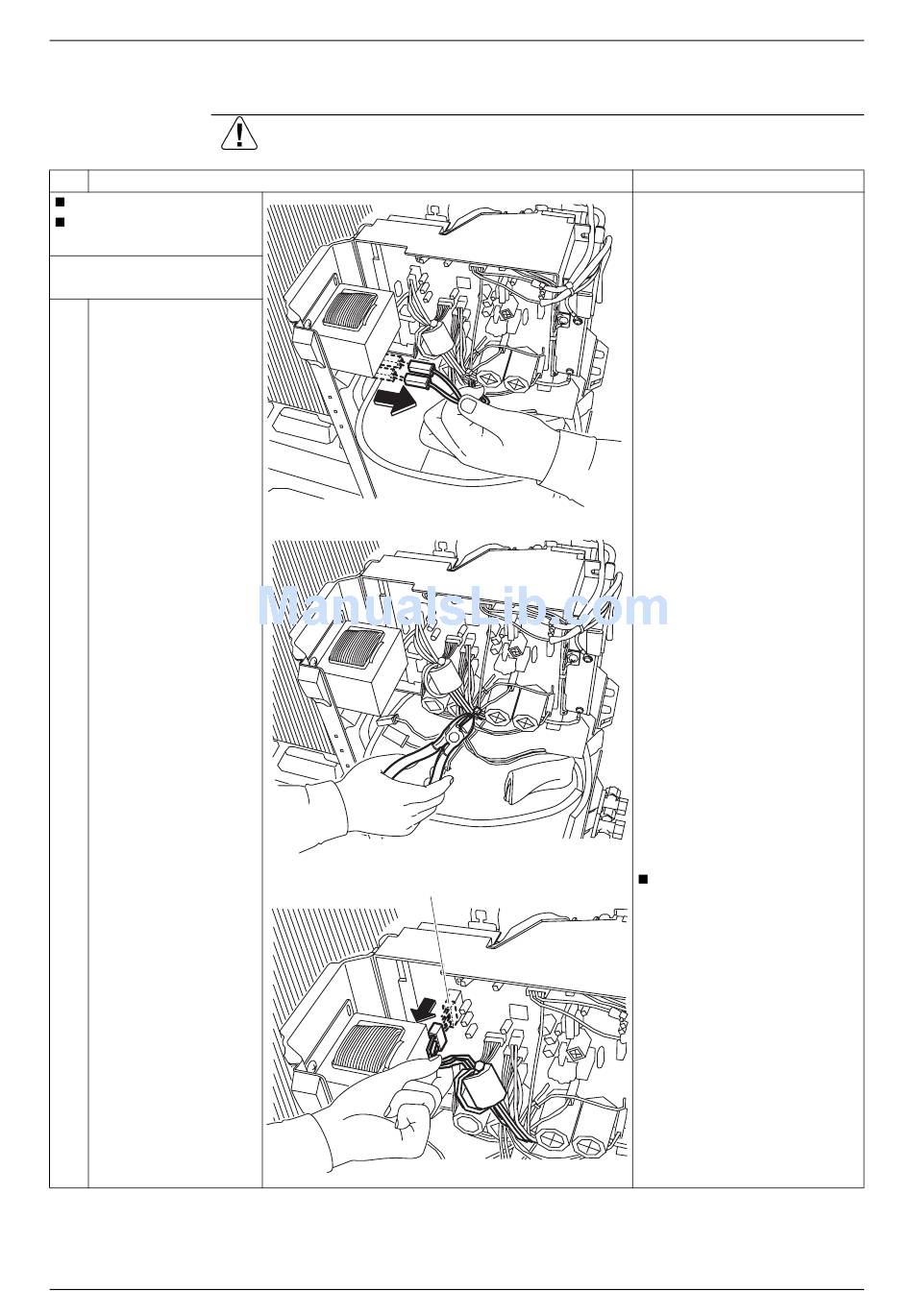

Removal of Electrical Box

Procedure
Step
Remove the top panel.
Disconnect the connector
for fan motor.
1. Remove the electrical
box.
Disconnect the 2
1
reactor harnesses.
2 Cut the clamp.
Disconnect the
3
connector for
compressor motor
[S30].
Removal Procedure
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
S30
Points
(R7214)
(R7215)
When reassembling, coil the
excessive lead wire and
hang the loop on the hook.
(R7216)
Outdoor Unit
173
