Indoor Unit
1.3

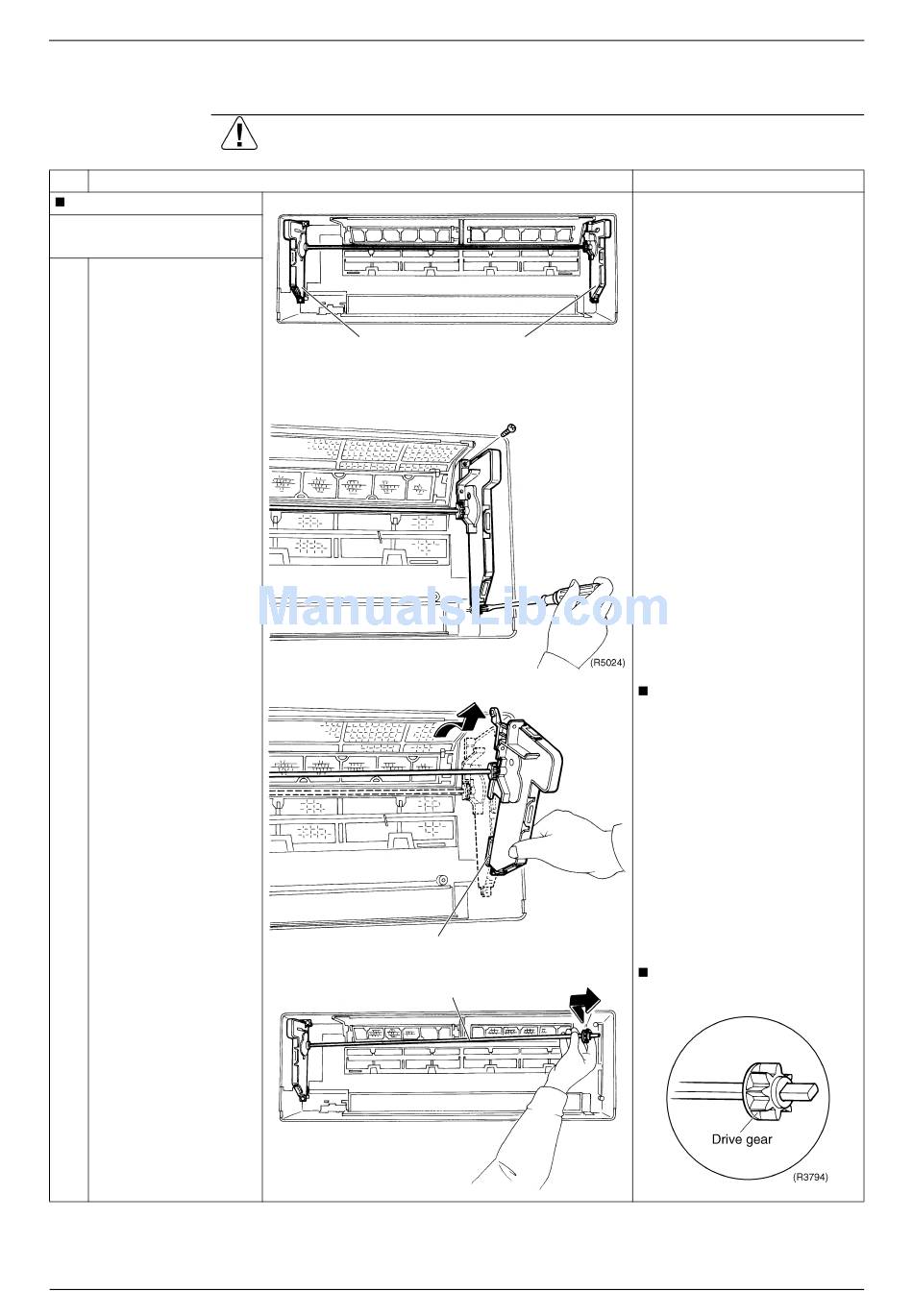

Removal of Assembly of Front Panel Mechanism

Procedure
Step
Remove the front grille.
1. Remove the assembly of
front panel mechanism.
1 The back of the front
grilles
2 Loosen the 2 screws of
the assembly (left).
Remove the assembly.
3
Lift the shaft and pull it
4
out to the rightward.
132
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Assy. of front panel
mechanism (right)
Lower rack plate
Shaft
Assy. of front panel
mechanism (left)
(R5023)
When assembling, insert the
lower rack plate first.
(R5025)
Be careful so as not to lose
the drive gear.
(R5026)
SiBE04-809
Points
Removal Procedure
