Step

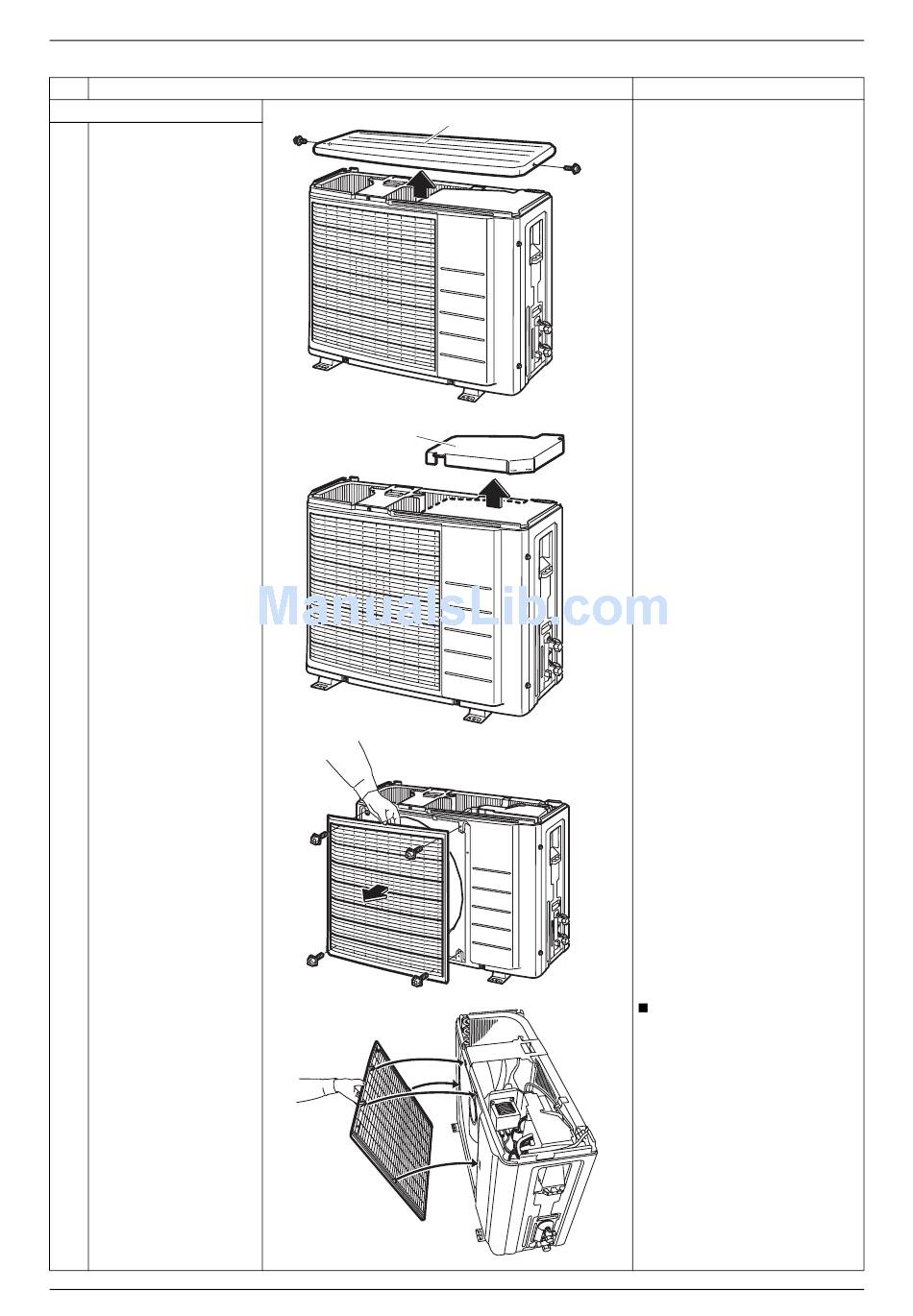

2. Remove the panels.
Loosen the 2 screws
1
(right, left) and lift the
top
panel.
2
Remove the
drip proof
plate.
3
Loosen the 4 screws of
the discharge grille.
Removal Procedure
Procedure
Top panel
Drip proof plate
(R7190)
(R7191)
(R7192)
The discharge grille has 4
hooks.
(R7193)
Outdoor Unit
Points
165
