SiBE04-809
1.7

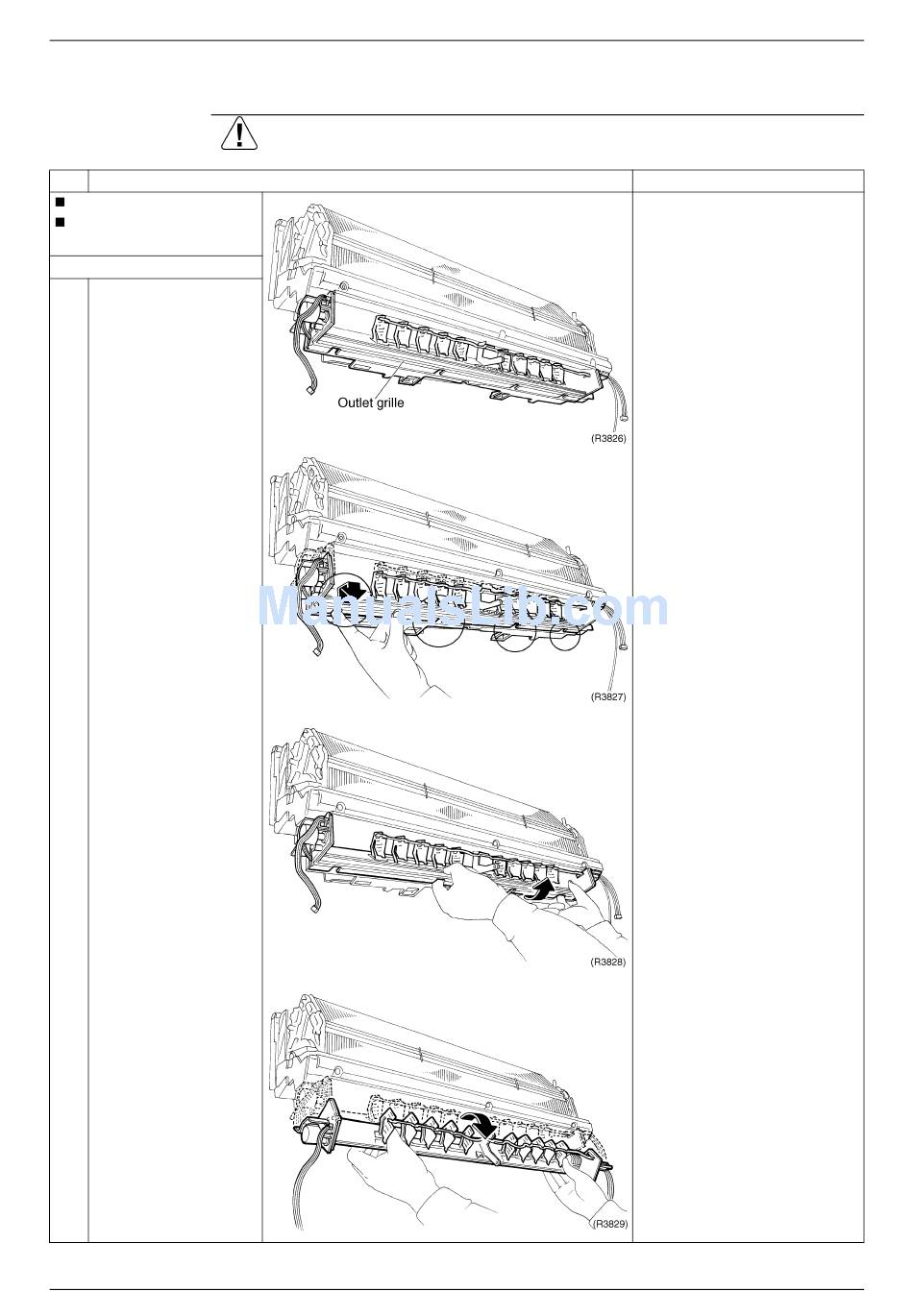

Removal of Outlet Grille

Procedure
Step
Remove the front grille.
Remove the assembly of
the reduction motor.
1. Remove the outlet grille.
1 Insert your finger into
the hole and push up
the hook to release it.
The outlet grille has 4
holes.
Lift up the lower part of
2
the grille to release the
hook on the upper
backside.
3 Rotate the upper part of
the grille to release the
hook on the lower back-
side.
Pull out the grille.
Removal Procedure
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Indoor Unit
Points
141
